Engine Front Cover: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT OIL SEAL .
Drain the cooling system. For additional information, refer to ENGINE COOLING .
On A/C equipped vehicles, remove the A/C line bracket bolt and position the A/C line aside.

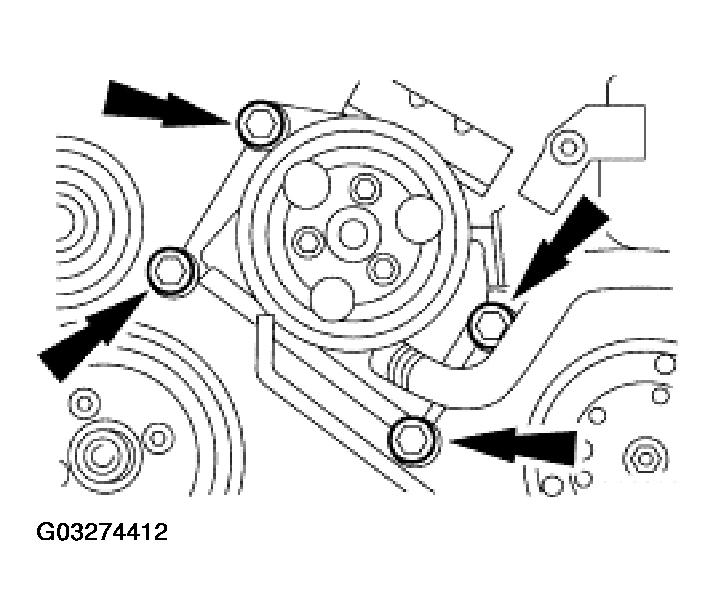

Fig 1: Removing A/C Line Bracket Bolt And Position A/C Line Aside
Courtesy of FORD MOTOR CO.

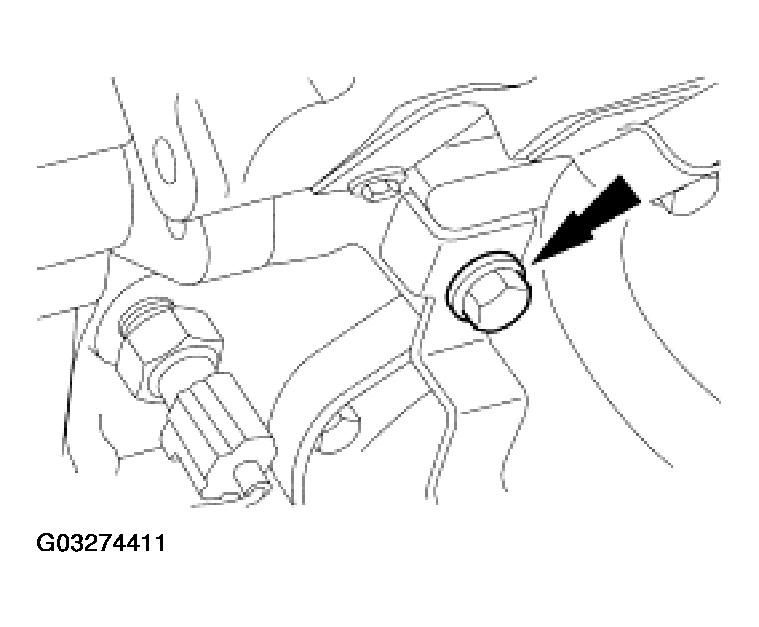

Remove the lower cylinder block cradle-to-engine front cover bolts.

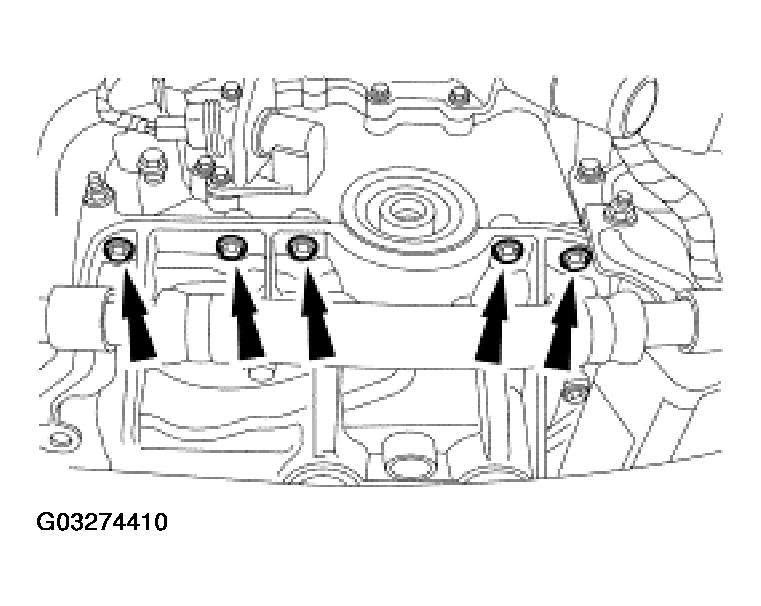

Fig 2: Removing Lower Cylinder Block Cradle-To-Engine Front Cover Bolts
Courtesy of FORD MOTOR CO.

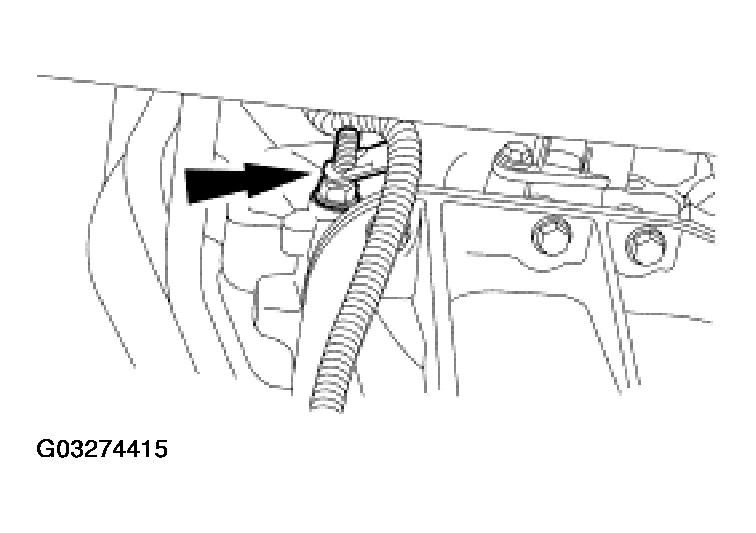

Remove the bolt and the wiring harness routing clip.

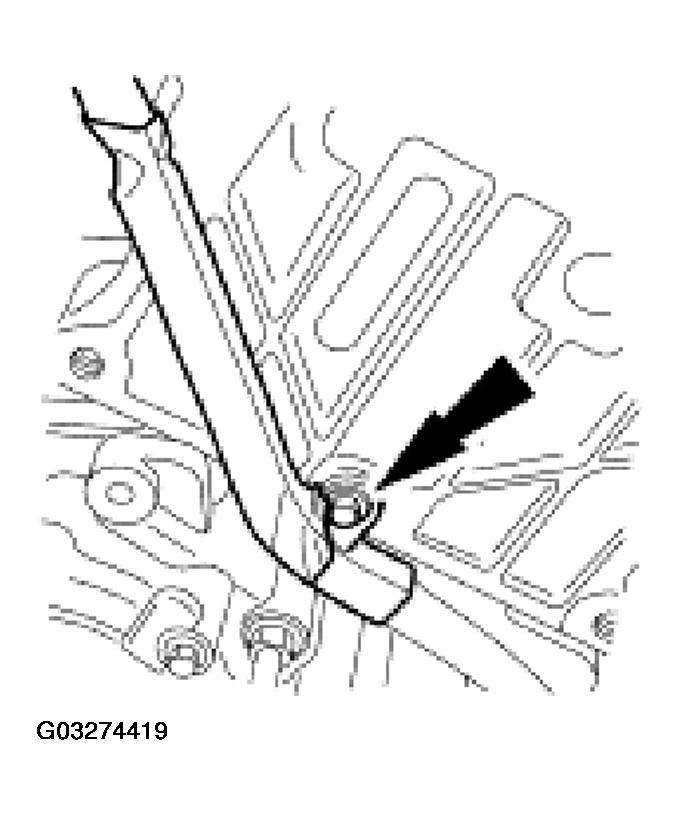

Fig 3: Removing Wiring Harness Routing Clip
Courtesy of FORD MOTOR CO.

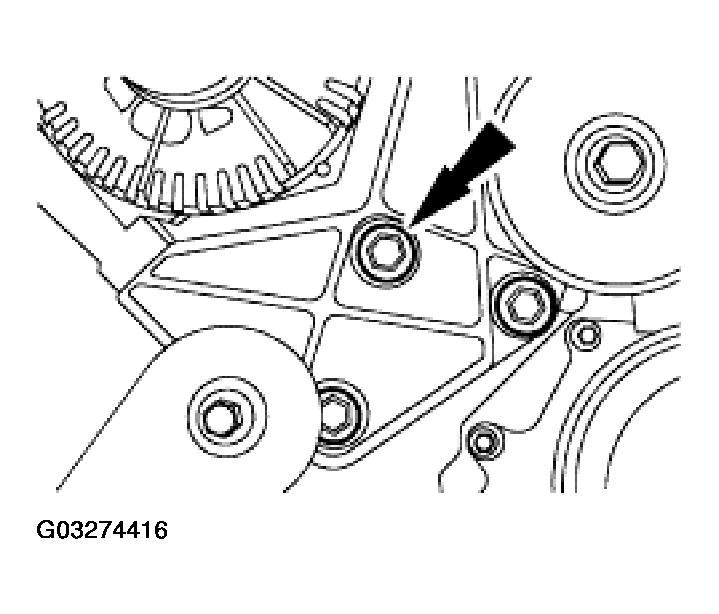

Remove the accessory bracket bolts and position the bracket aside.

Fig 4: Removing Accessory Bracket Bolts And Position Bracket Aside
Courtesy of FORD MOTOR CO.

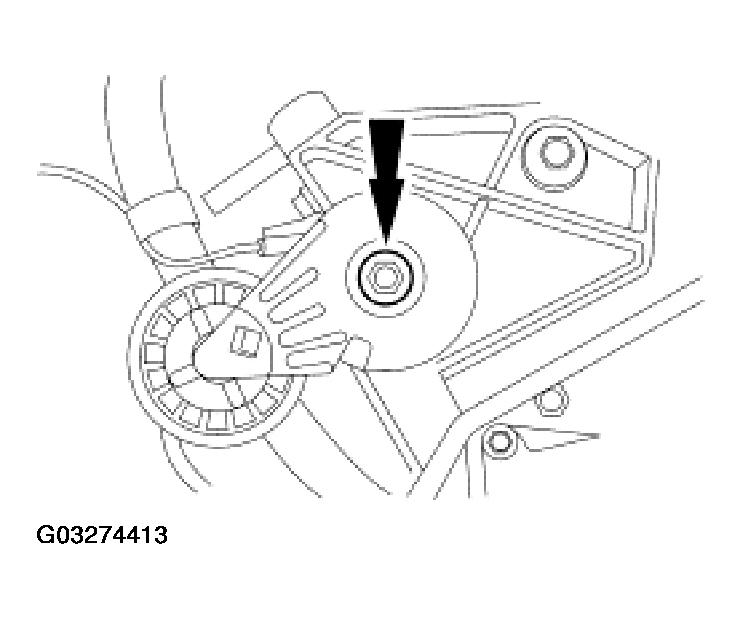

Remove the drivebelt tensioner.

Fig 5: Removing Drivebelt Tensioner
Courtesy of FORD MOTOR CO.

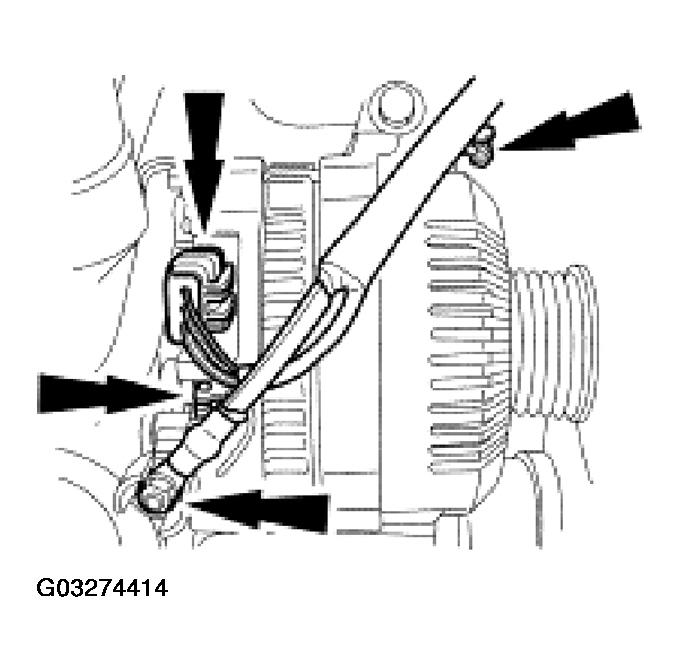

Disconnect the generator wiring and position the wiring aside.

Fig 6: Disconnecting Generator Wiring And Position Wiring Aside
Courtesy of FORD MOTOR CO.

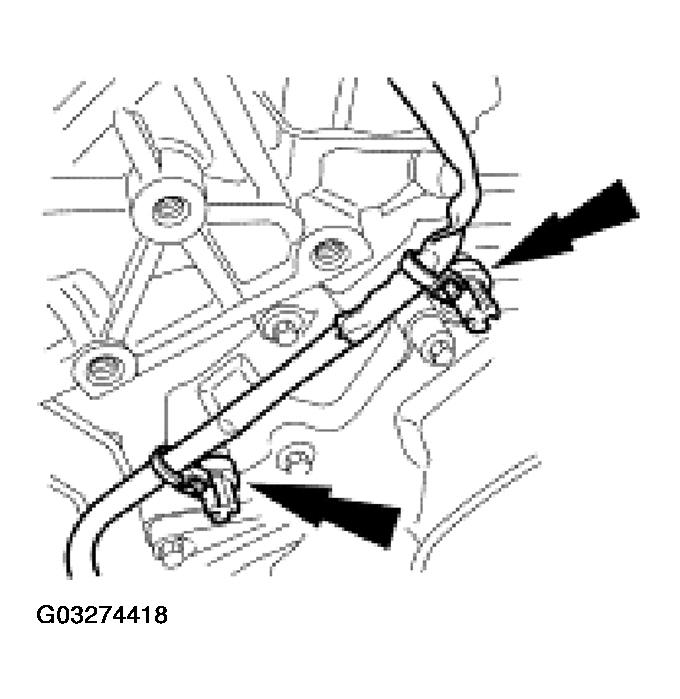

Remove the wiring harness retainer.

Fig 7: Removing Wiring Harness Retainer
Courtesy of FORD MOTOR CO.
Remove the generator mounting bracket.

Fig 8: Removing Generator Mounting Bracket
Courtesy of FORD MOTOR CO.
Disconnect the crankshaft position (CKP) sensor electrical connector.

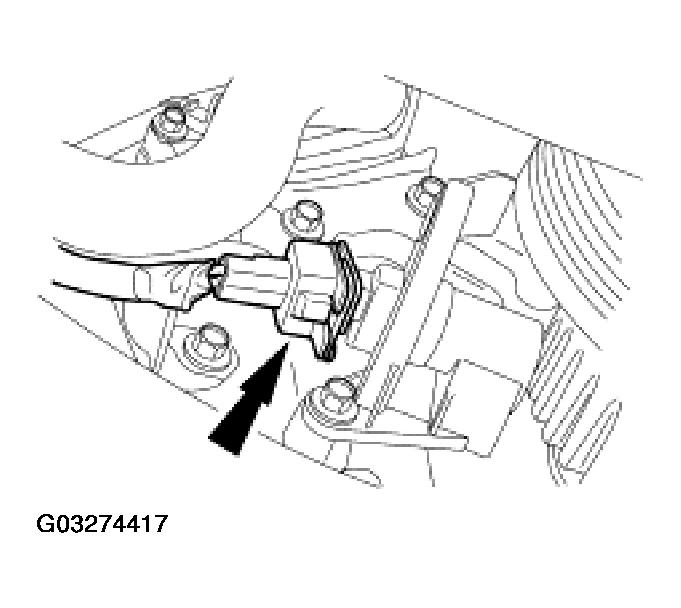

Fig 9: Disconnecting CKP Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the wiring anchors and position the wiring aside.

Fig 10: Removing Wiring Anchors And Position Wiring Aside
Courtesy of FORD MOTOR CO.
Remove the wiring harness retainer and position the wiring aside.

Fig 11: Removing Wiring Harness Retainer And Position Wiring Aside
Courtesy of FORD MOTOR CO.
Move the lower bypass hose clamp off of the coolant pump outlet.

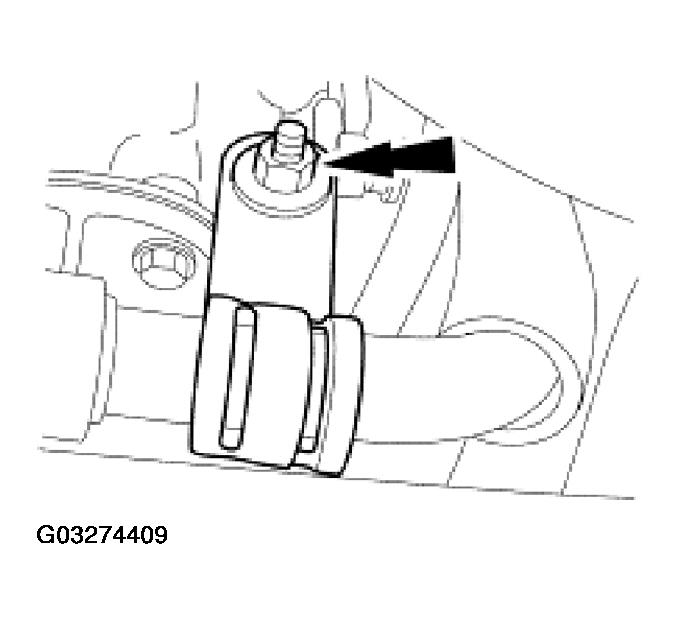

Fig 12: Moving Lower Bypass Hose Clamp Off Of Coolant Pump Outlet
Courtesy of FORD MOTOR CO.
Release the hose clamp and remove the lower heater water hose.

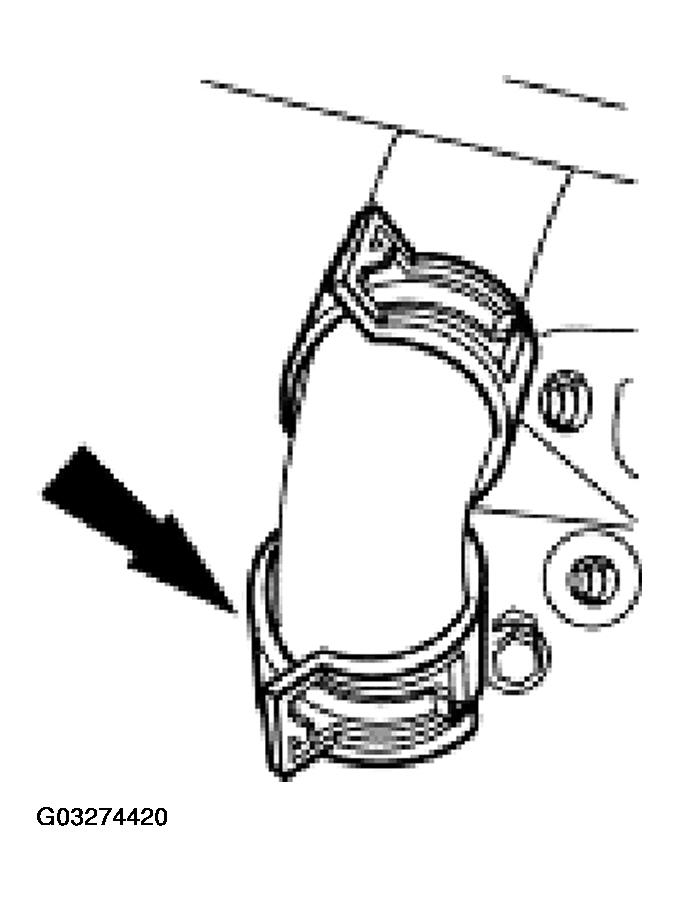

Fig 13: Releasing Hose Clamp And Remove Lower Heater Water Hose
Courtesy of FORD MOTOR CO.

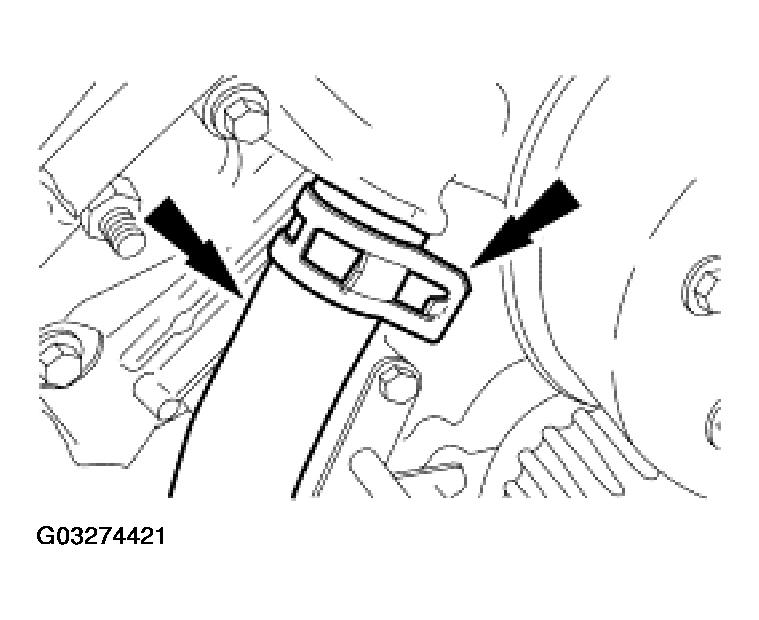

Release the hose clamp and remove the lower radiator hose.

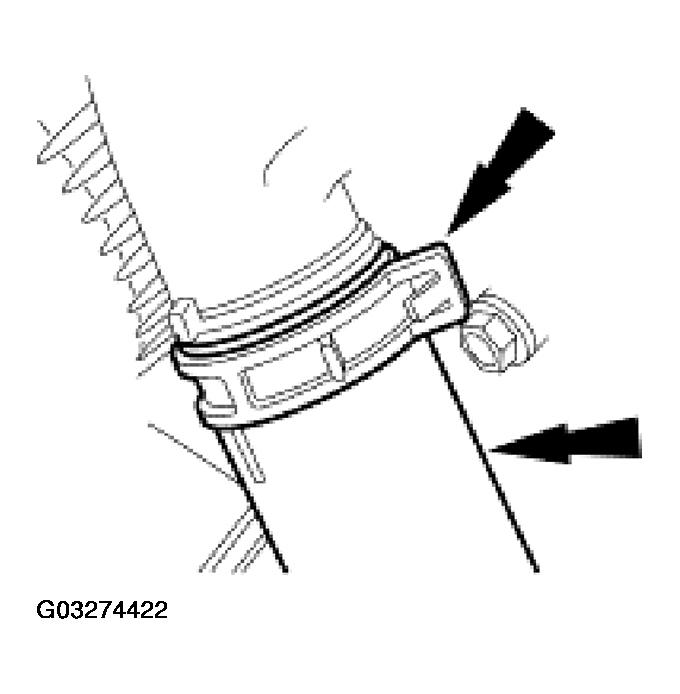

Fig 14: Removing Lower Radiator Hose
Courtesy of FORD MOTOR CO.

NOTE: The water pump is removed for clarity.

Remove the bolts and the engine front cover.
- Discard the gasket.

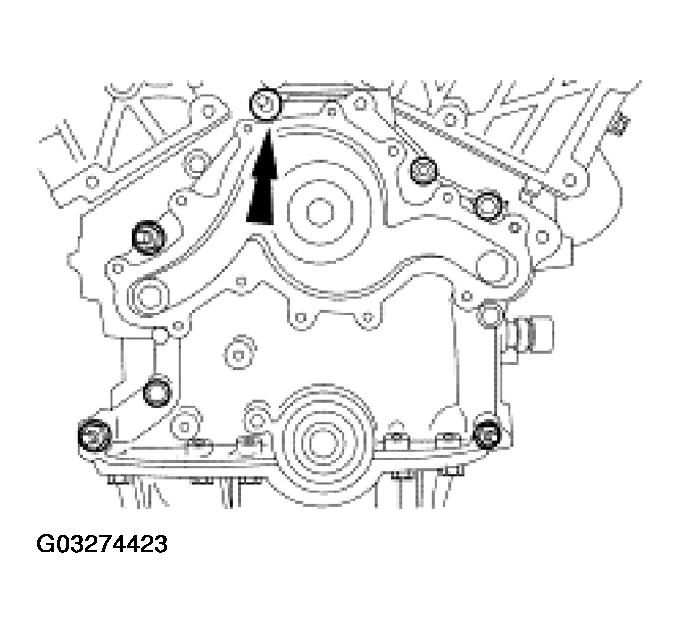

  Fig 15: Removing Engine Front Cover
  Courtesy of FORD MOTOR CO.
