Crankshaft Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate. For additional information, refer to FLEXPLATE .
    2. CAUTION: Avoid scratching or damaging the oil crankshaft seal running surface during removal of the crankshaft rear oil seal.

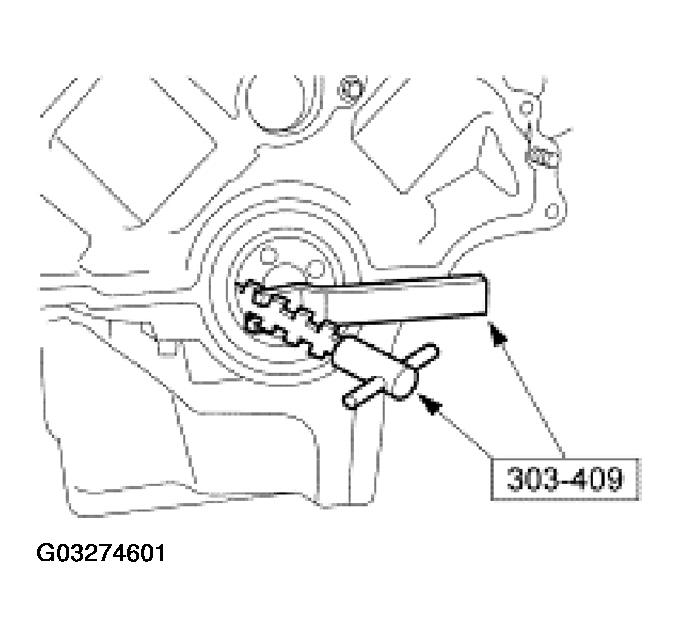

    Fig 1: Removing Crankshaft Rear Oil Seal
    G03274601Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the crankshaft rear oil seal.
