Crankshaft Pulley - Late Build: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan shroud. For additional information, refer to ENGINE COOLING .
  2. Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
    3. CAUTION: This bolt is a torque-to-yield design and cannot be reused.

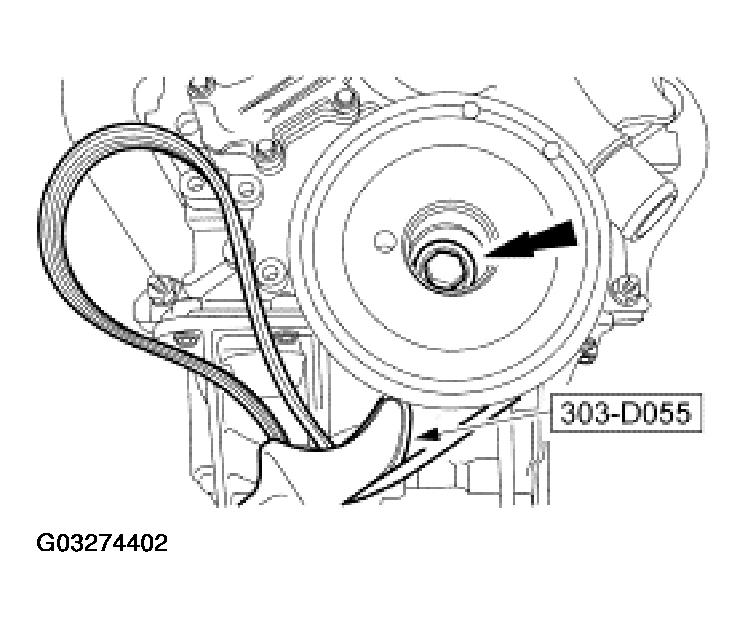

    Fig 1: Removing Crankshaft Pulley Bolt
    G03274402Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the crankshaft pulley bolt.
    4. NOTE: If the crankshaft pulley bolt is not installed, the special tool will bottom out before the pulley is off.

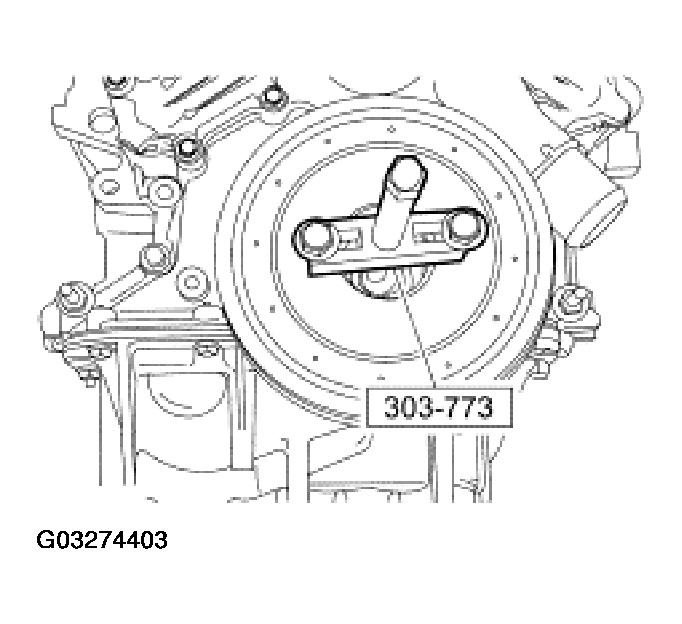

    Fig 2: Installing Crankshaft Pulley Bolt
    G03274403Courtesy of FORD MOTOR CO.
  4. Install the crankshaft pulley bolt 2-3 turns. Using the special tool and the 8 mm x 1.25 x 100 mm bolts, remove the pulley.
