Crankshaft Pulley - Early Build: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan shroud. For additional information, refer to ENGINE COOLING .
  2. Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
    3. CAUTION: This bolt is a torque-to-yield design and cannot be reused.

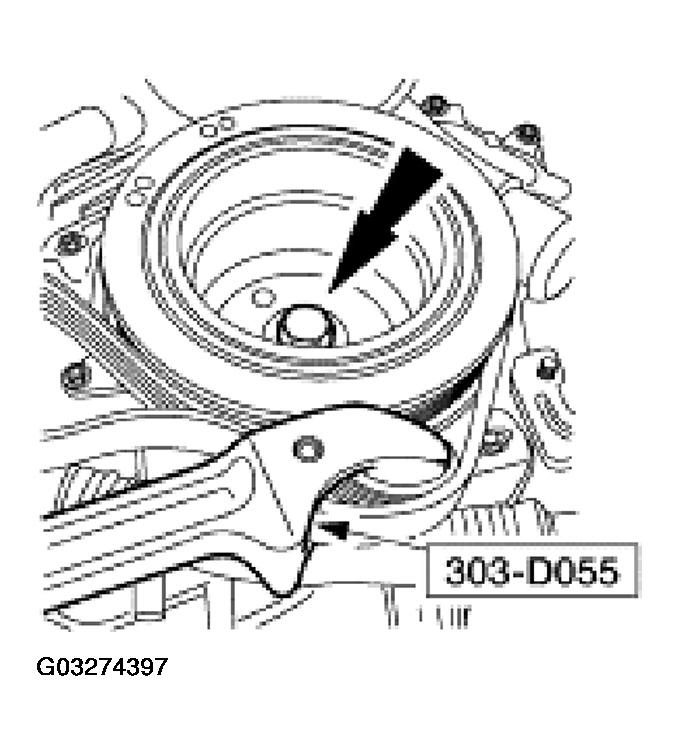

    Fig 1: Removing Crankshaft Pulley Bolt
    G03274397Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the crankshaft pulley bolt.
  4. Using the special tool, remove the crankshaft pulley.

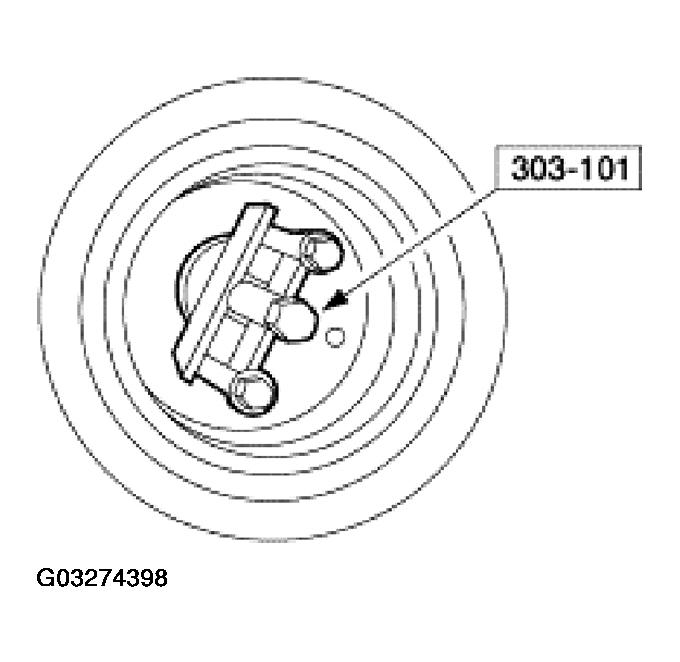

    Fig 2: Removing Crankshaft Pulley
    G03274398Courtesy of FORD MOTOR CO.
