Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the seal lip with clean engine oil.

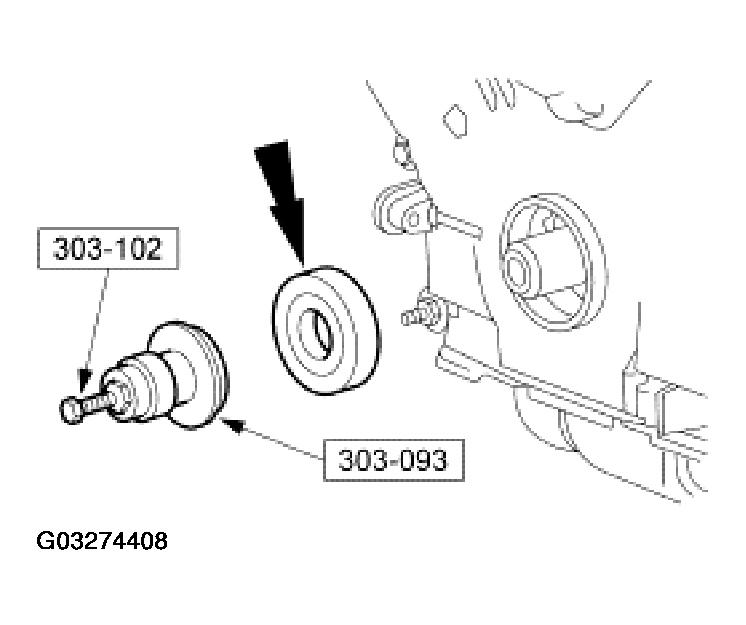

    Fig 1: Installing Crankshaft Front Oil Seal
    G03274408Courtesy of FORD MOTOR CO.
  1. Using the special tools, install the crankshaft front oil seal.
  2. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY - EARLY BUILD  or CRANKSHAFT PULLEY - LATE BUILD .
