Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The connecting rod bolts and nuts cannot be reused.
    NOTE: Mark the position of the parts, so they can be installed in their original position.
  1. Remove the connecting rod bearings from the connecting rod and caps.
  2. Remove the piston rings. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .

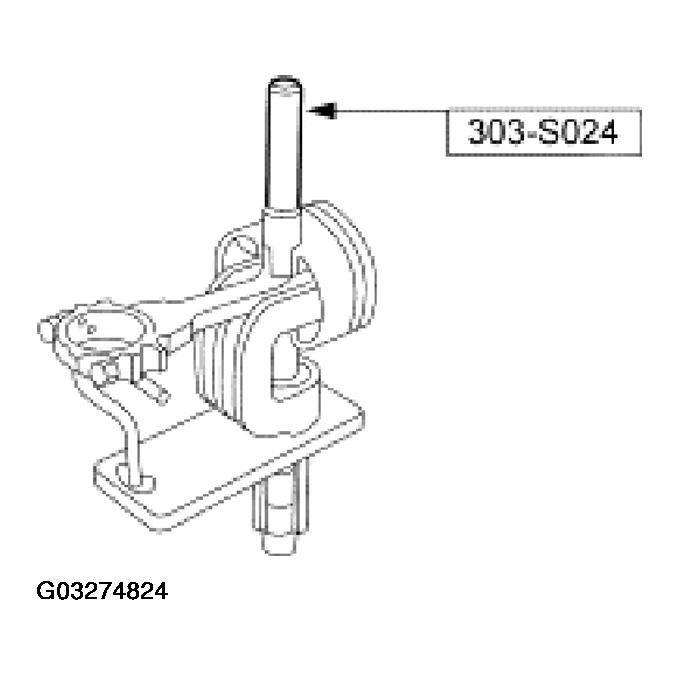

  3. Using the special tool, press the piston pin out of the connecting rod and piston assembly.
    Fig 1: Pressing Piston Pin Out Of Connecting Rod And Piston Assembly
    G03274824Courtesy of FORD MOTOR CO.

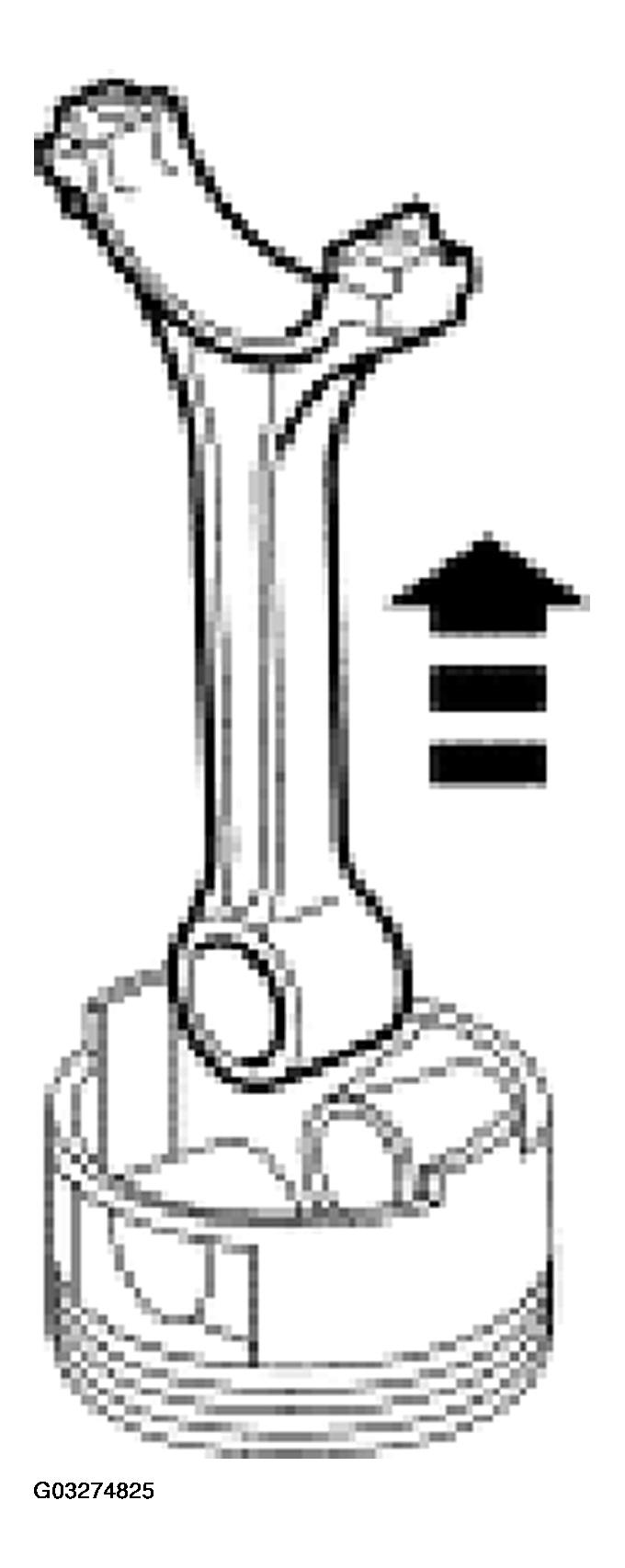

  4. Remove the connecting rod from the piston.
    Fig 2: Removing Connecting Rod From Piston
    G03274825Courtesy of FORD MOTOR CO.
  5. Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
