Cylinder Head: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to assembly, coat all of the valve train components with clean engine oil.

Install the camshaft.

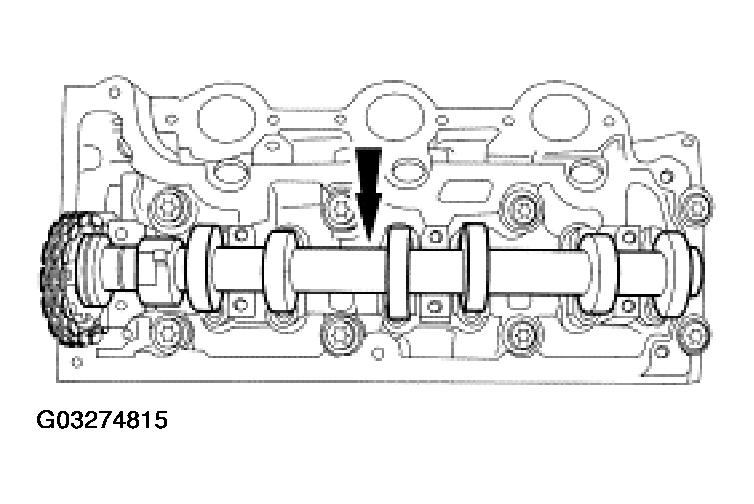

Fig 1: Installing Camshaft
Courtesy of FORD MOTOR CO.

NOTE: The camshaft bearing caps must be installed in the original position.

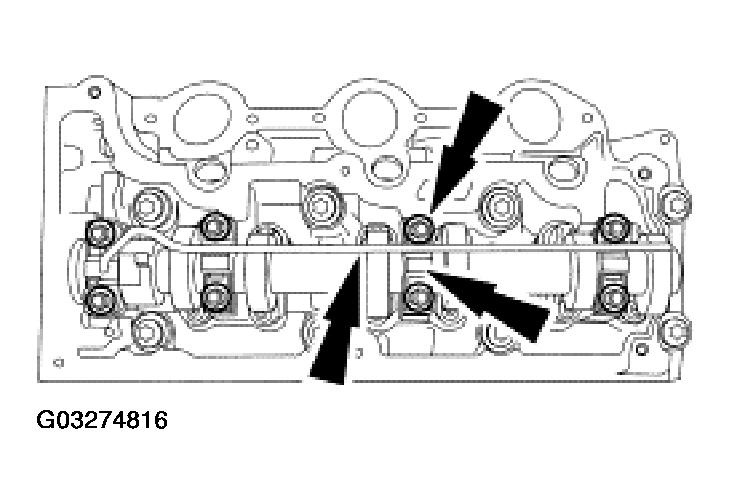

Fig 2: Positioning Camshaft Bearing Caps, Oil Supply Tube, And Bolts

Courtesy of FORD MOTOR CO.

Position the camshaft bearing caps, the oil supply tube, and the bolts.

NOTE: After installing the bolts, check the camshaft for free rotation.

Tighten the camshaft bearing cap bolts in two stages in the sequence shown.
- Stage 1: Tighten to 6 N.m (53 lb-in).
- Stage 2: Tighten to 16 N.m (12 lb-ft).

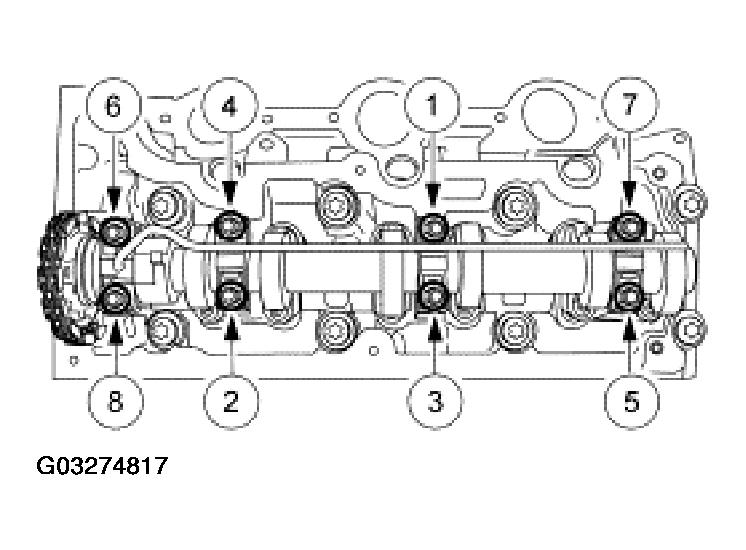

  Fig 3: Camshaft Bearing Cap Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the valve.
Using the special tool, install the valve stem seals.

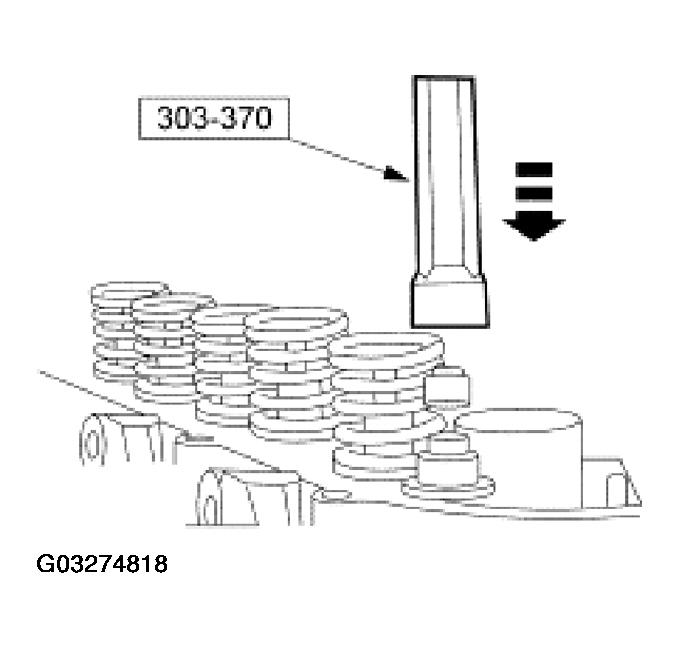

Fig 4: Installing Valve Stem Seals
Courtesy of FORD MOTOR CO.
Position the valve spring and the valve spring retainer.

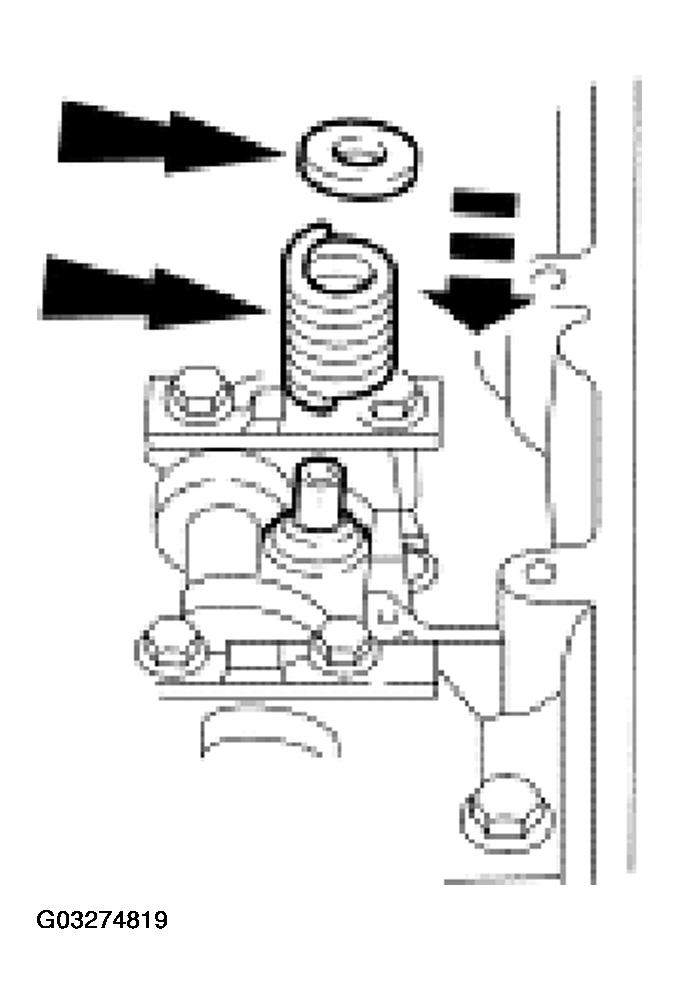

Fig 5: Positioning Valve Spring And Valve Spring Retainer
Courtesy of FORD MOTOR CO.
Install the special tool between the valve spring coils to prevent valve stem seal damage.

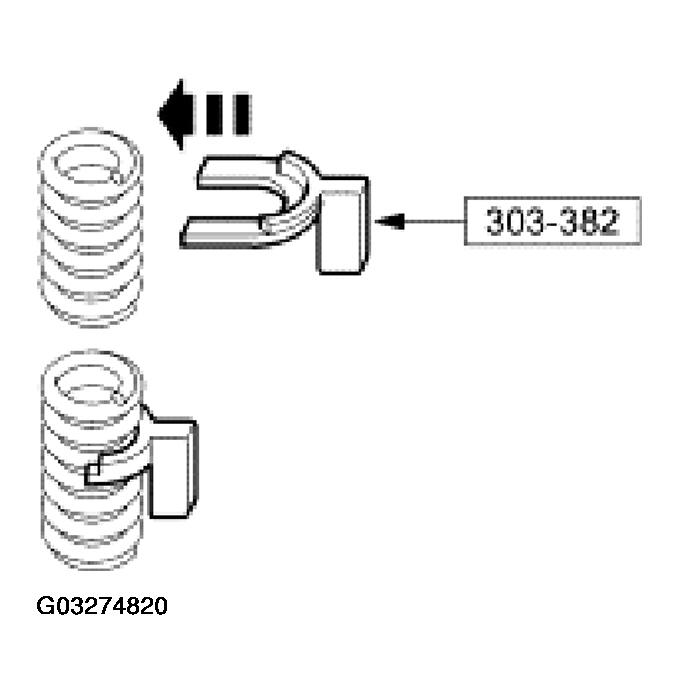

Fig 6: Installing Special Tool
Courtesy of FORD MOTOR CO.
Using the special tool to compress the valve spring, install the valve spring retainer keys.

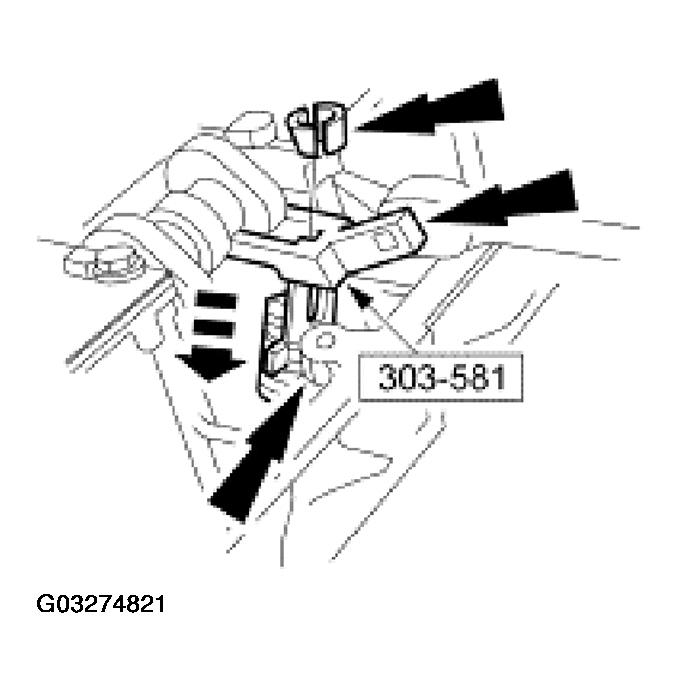

Fig 7: Installing Valve Spring Retainer Keys
Courtesy of FORD MOTOR CO.
Repeat the procedure until all of the valves are installed.
Install the spark plugs.

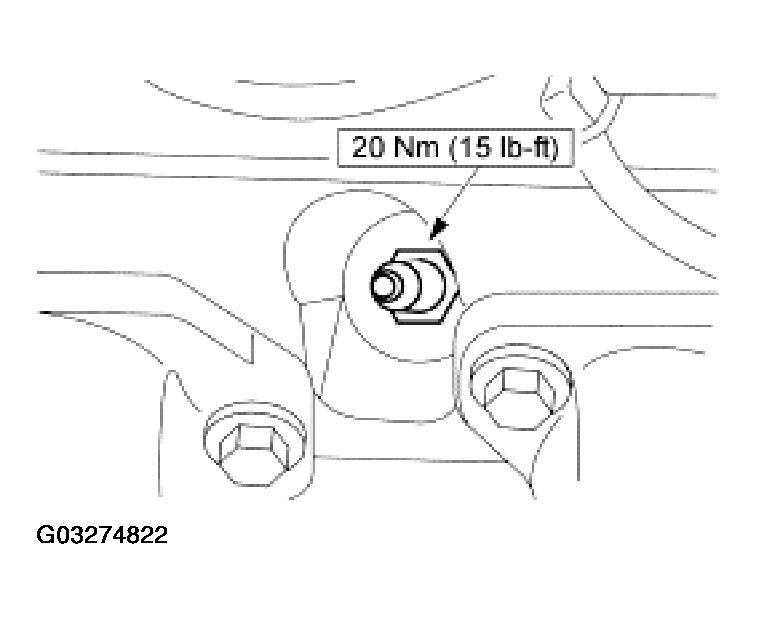

Fig 8: Installing Spark Plugs
Courtesy of FORD MOTOR CO.
Install the camshaft roller followers only when the cylinder head is installed in the vehicle and the timing procedure has been carried out.
