Upper Components-4.0L SOHC Engine

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

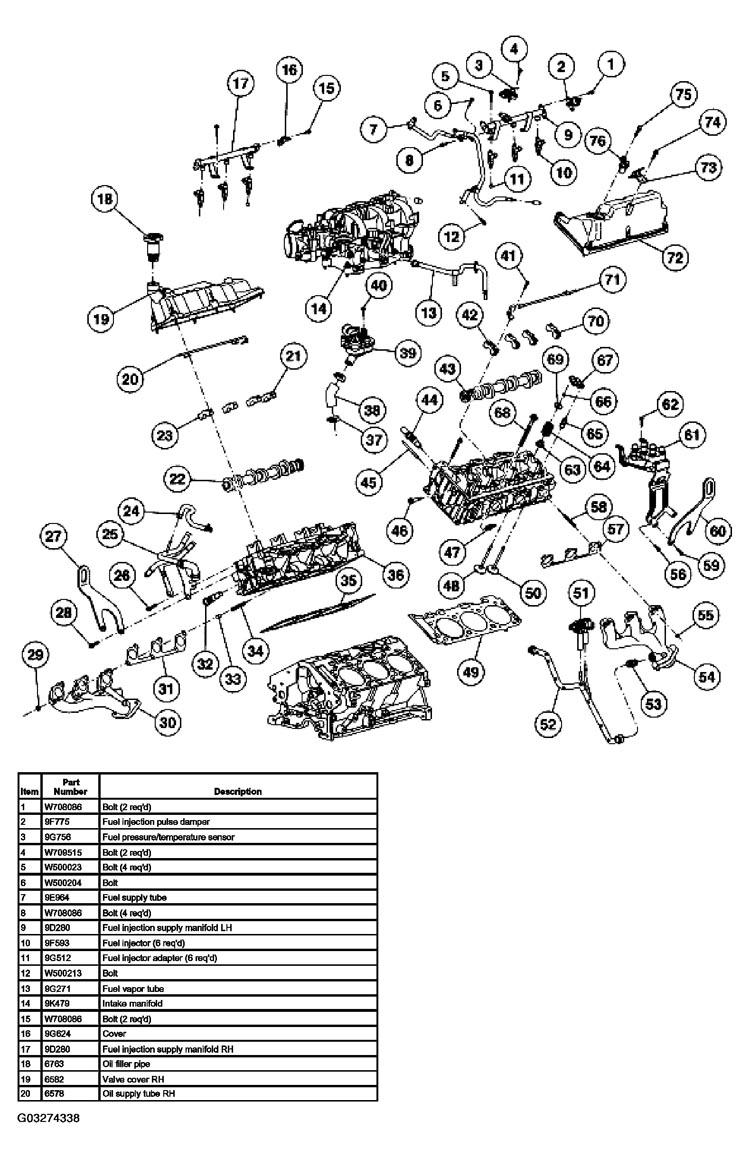

Fig 1: Identifying Upper Components-4.0L SOHC Engine (Items 1-20)
G03274338Courtesy of FORD MOTOR CO.

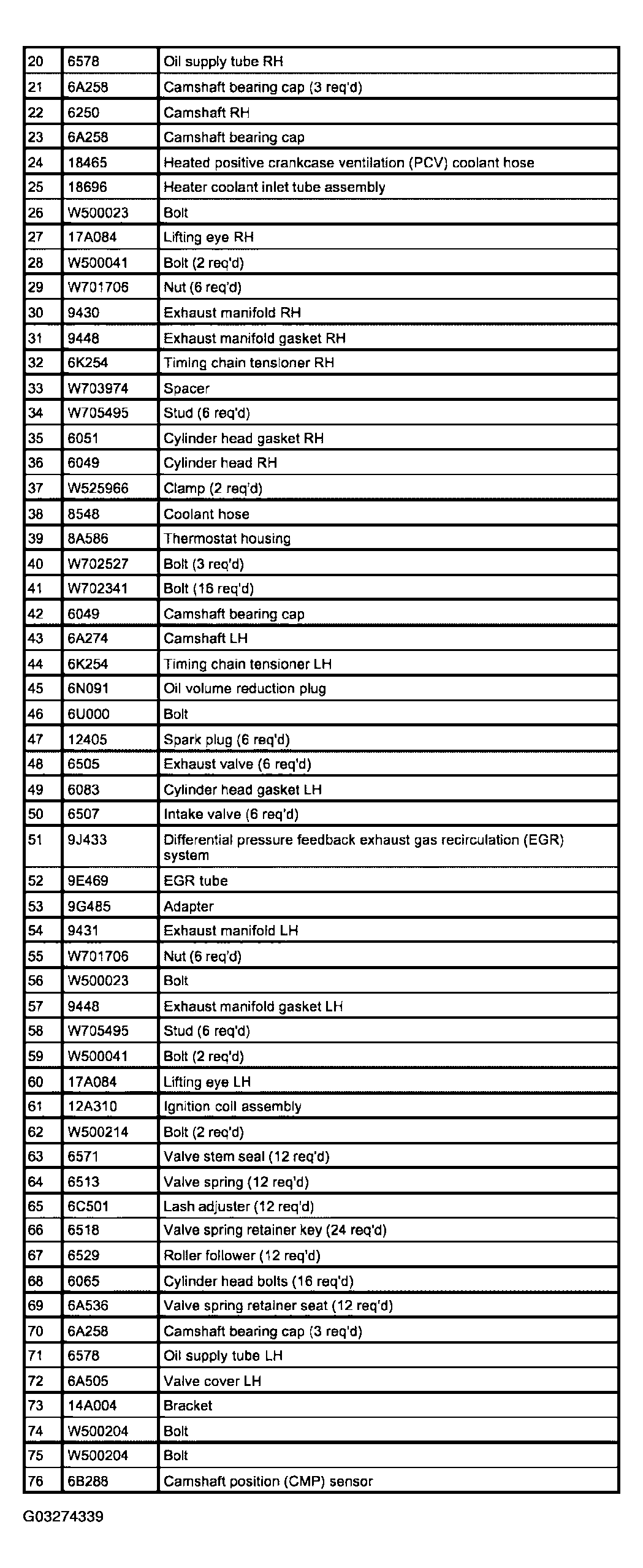

Fig 2: Identifying Upper Components-4.0L SOHC Engine (Items 21-76)
G03274339Courtesy of FORD MOTOR CO.
