Lower Components-4.0L SOHC Engine

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

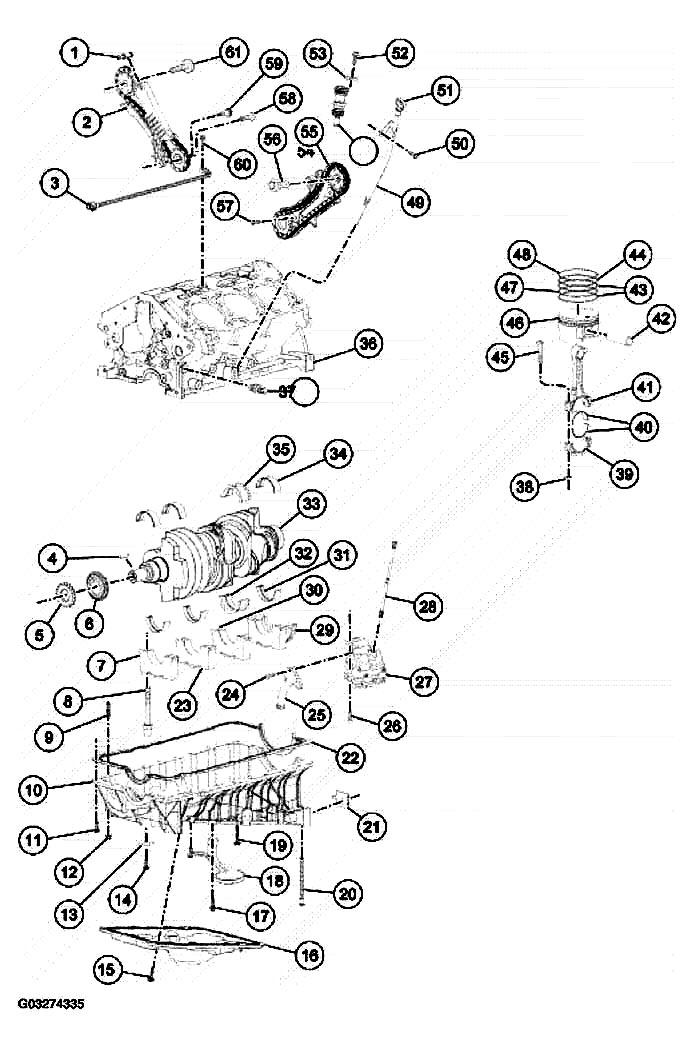

Fig 1: Identifying Lower Components-4.0L SOHC Engine
G03274335Courtesy of FORD MOTOR CO.

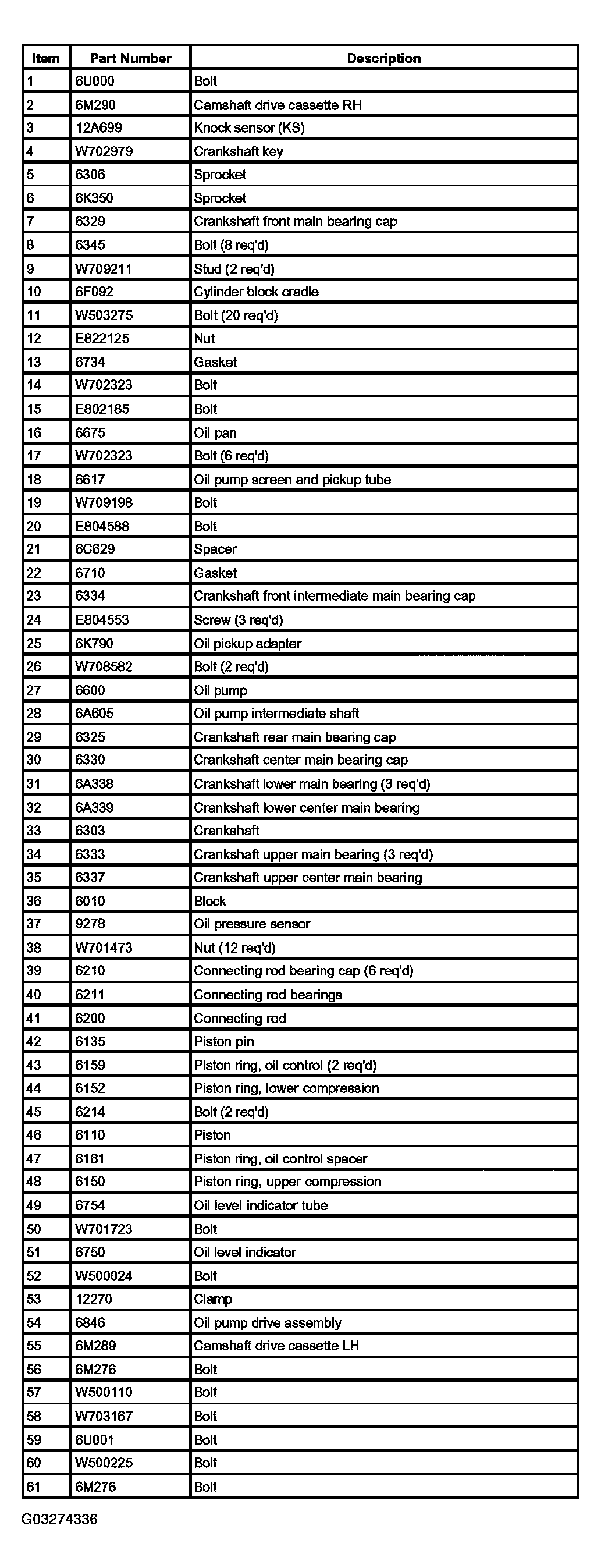

Fig 2: Parts Description Of Lower Components-4.0L SOHC Engine (Items 1-61)
G03274336Courtesy of FORD MOTOR CO.
