Valve Cover RH: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

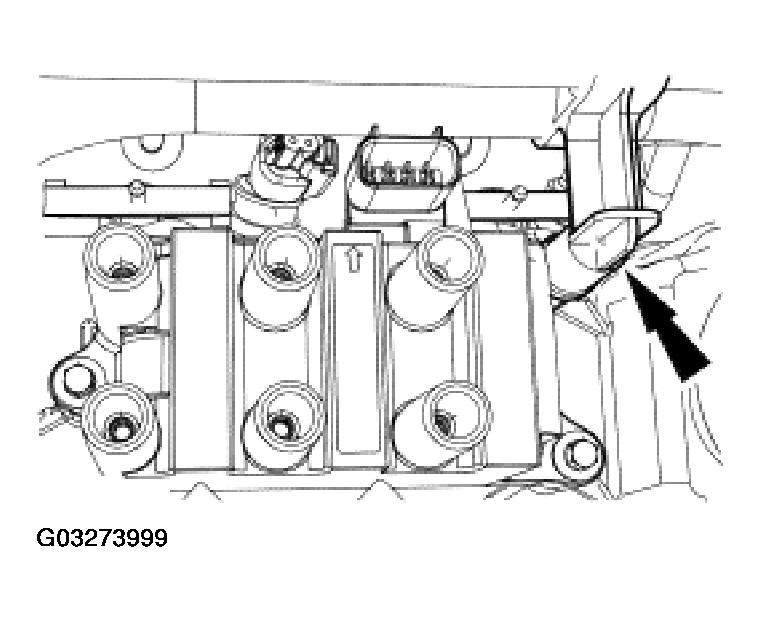

Disconnect the ignition coil electrical connector.

Fig 1: Disconnecting Ignition Coil Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Do not pull on the spark plug wire as it may separate from the spark plug wire connector inside the spark plug boot.

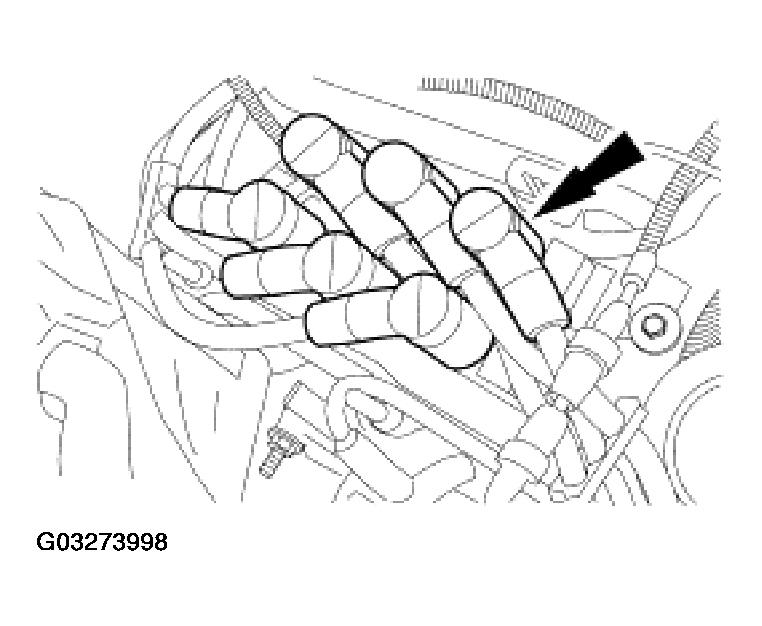

Fig 2: Disconnecting Spark Plug Wires

Courtesy of FORD MOTOR CO.

Disconnect the spark plug wires by twisting while pulling upward.

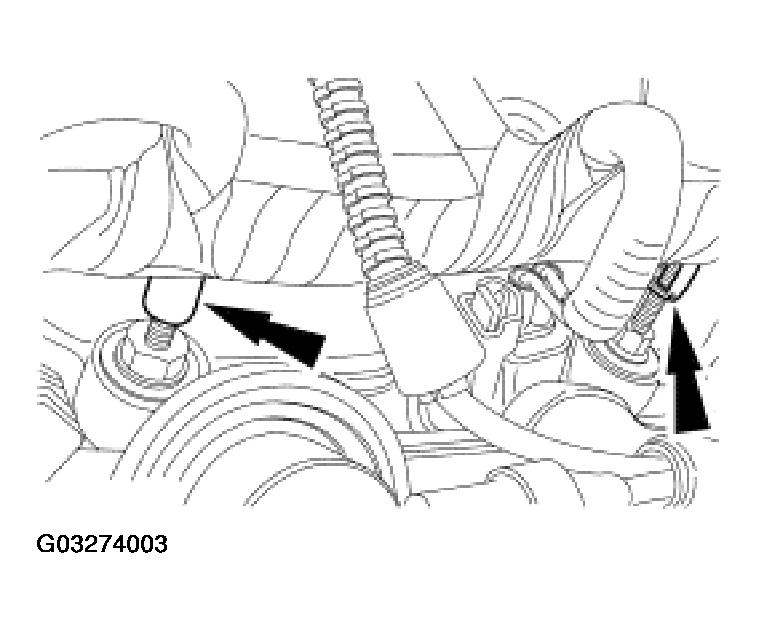

Disconnect the heater hose support from the stud.

Fig 3: Disconnecting Heater Hose Support From Stud
Courtesy of FORD MOTOR CO.

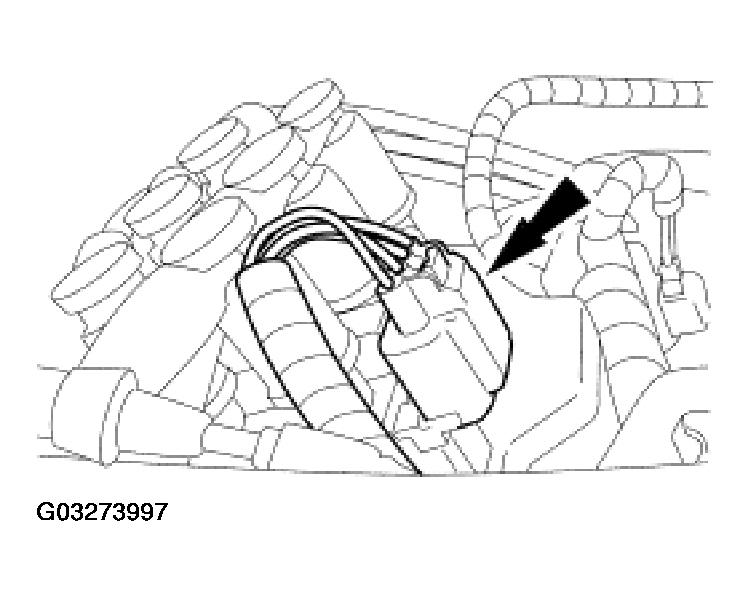

Disconnect the spark plug wire holders.

Fig 4: Disconnecting Spark Plug Wire Holders
Courtesy of FORD MOTOR CO.

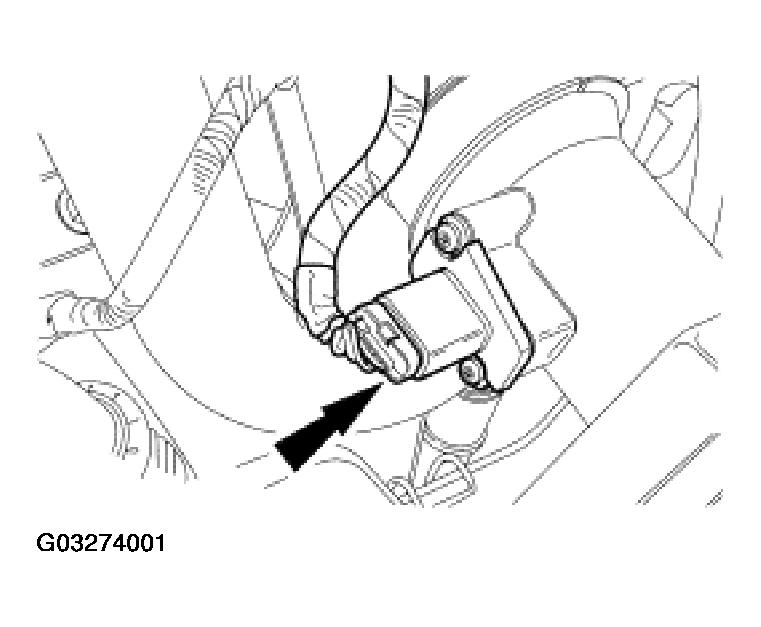

Disconnect the engine control sensor wiring from the mass air flow (MAF) sensor. Position the engine control sensor wiring aside.

Fig 5: Disconnecting Engine Control Sensor Wiring From MAF Sensor
Courtesy of FORD MOTOR CO.

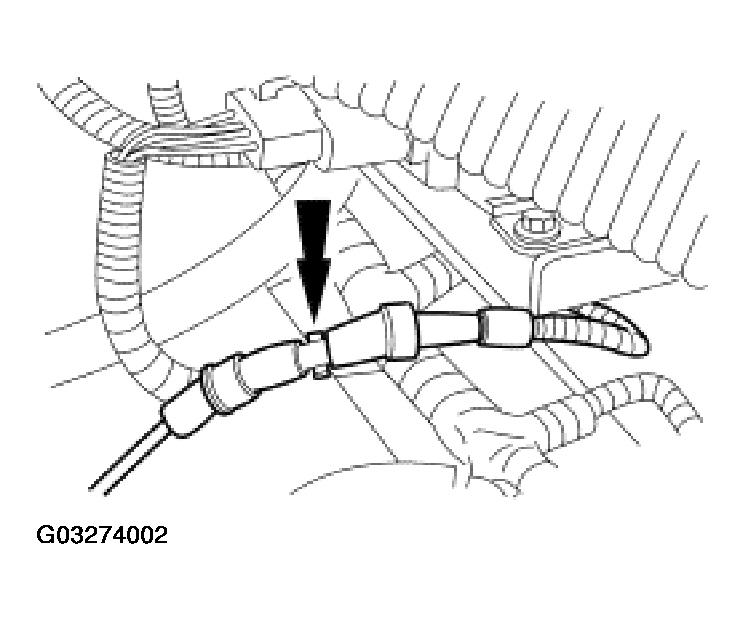

Disconnect the vacuum hose.

Fig 6: Disconnecting Vacuum Hose
Courtesy of FORD MOTOR CO.

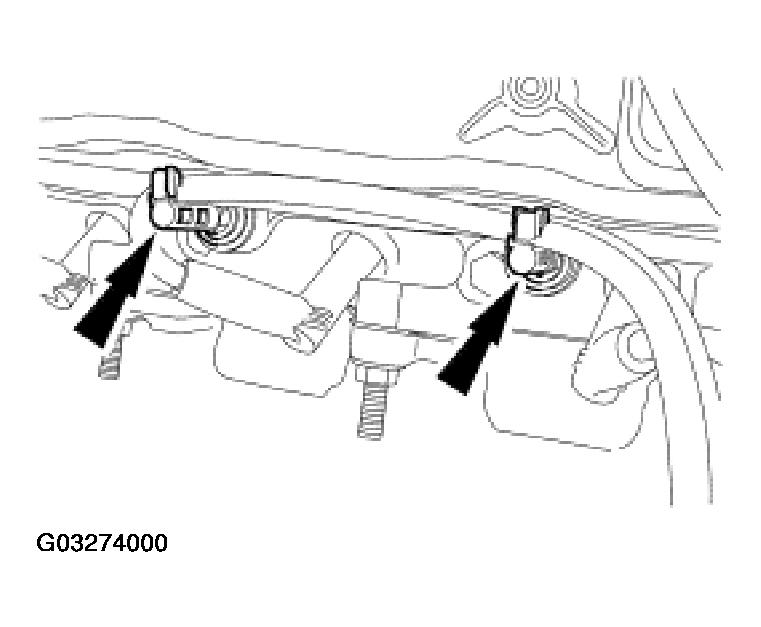

Disconnect the wiring harness from the valve cover studs.

Fig 7: Disconnecting Wiring Harness From Valve Cover Studs
Courtesy of FORD MOTOR CO.

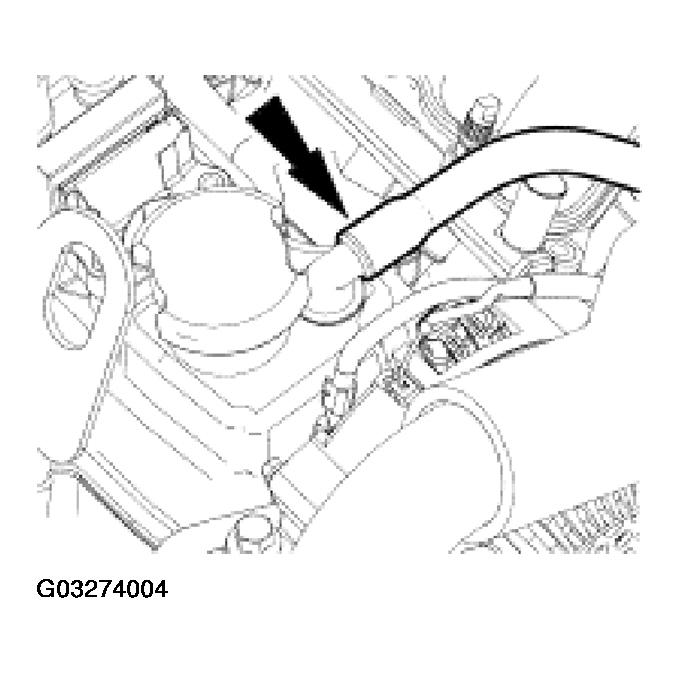

Disconnect the crankcase ventilation tube.

Fig 8: Disconnecting Crankcase Ventilation Tube
Courtesy of FORD MOTOR CO.

NOTE: To prevent stretching the valve cover gasket, loosen silicone gasket and sealant from the cylinder head by sliding a flat knife between the valve cover gasket and cylinder head.

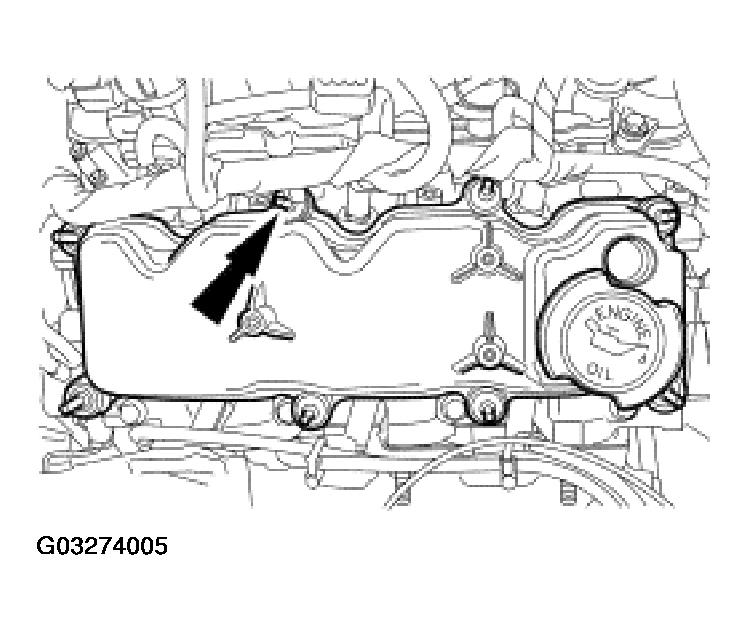

Fig 9: Removing Valve Cover

Courtesy of FORD MOTOR CO.

Remove the eight bolts and remove the valve cover.
Remove the valve cover gasket, if necessary.

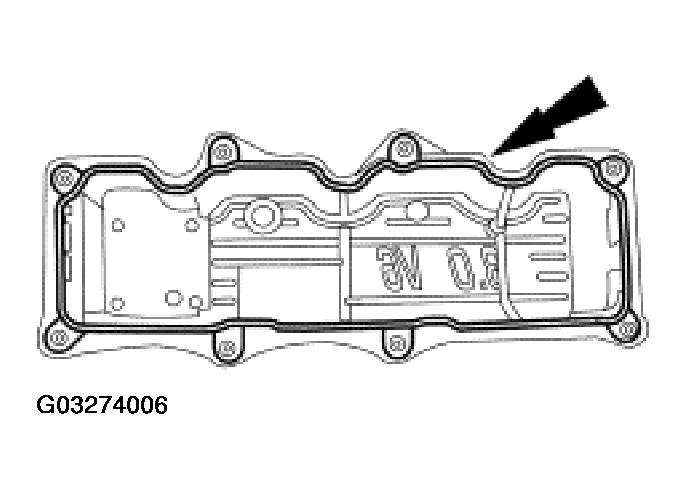

Fig 10: Removing Valve Cover Gasket
Courtesy of FORD MOTOR CO.
