Valve Cover RH: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

Fig 1: Cleaning All Mating Surfaces

Courtesy of FORD MOTOR CO.

Clean all the mating surfaces.
Install the valve cover gasket, if removed.

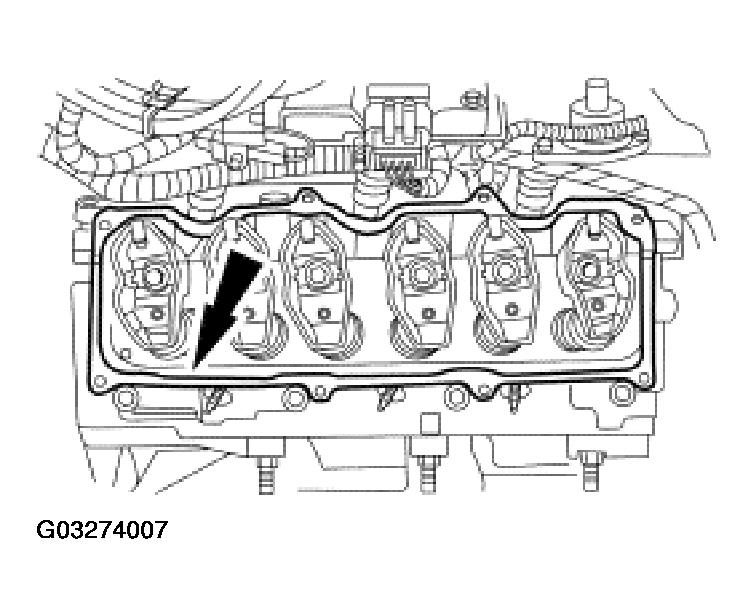

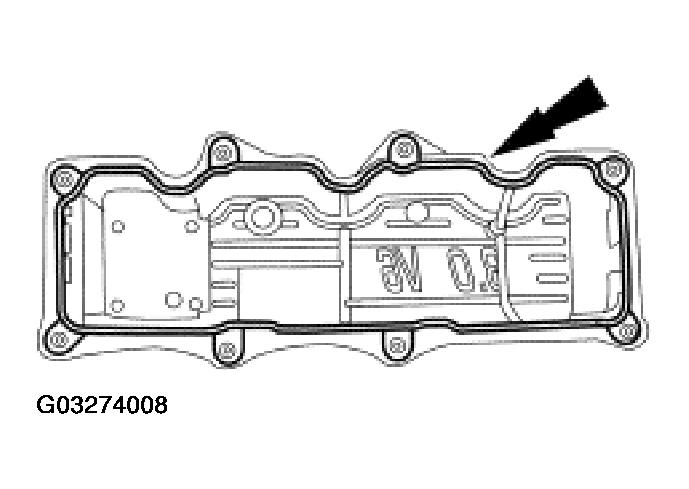

Fig 2: Installing Valve Cover Gasket
Courtesy of FORD MOTOR CO.

NOTE: If the valve cover is not installed within four minutes, remove the sealant and reapply.

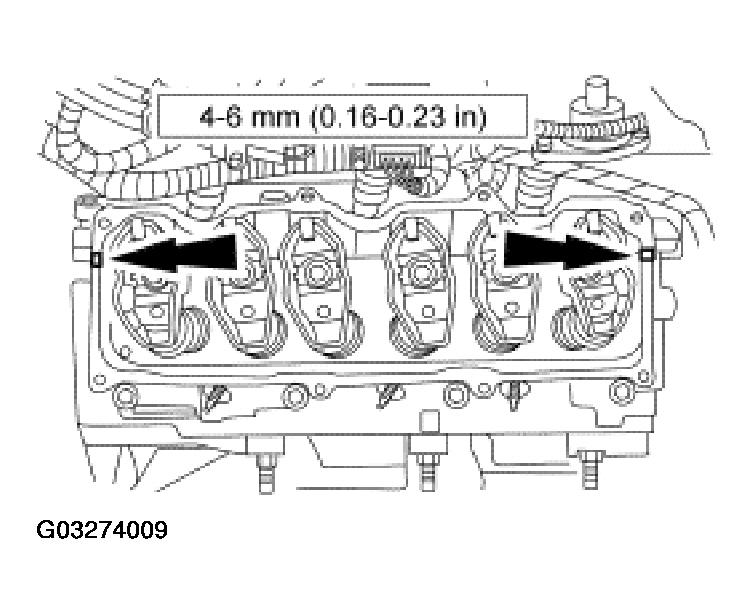

Fig 3: Applying Sealant

Courtesy of FORD MOTOR CO.

Apply a bead of silicone gasket and sealant in two places where the cylinder head and lower intake manifold meet.
Install the valve cover.
- Position the valve cover.
- Tighten the eight bolts in the sequence shown.

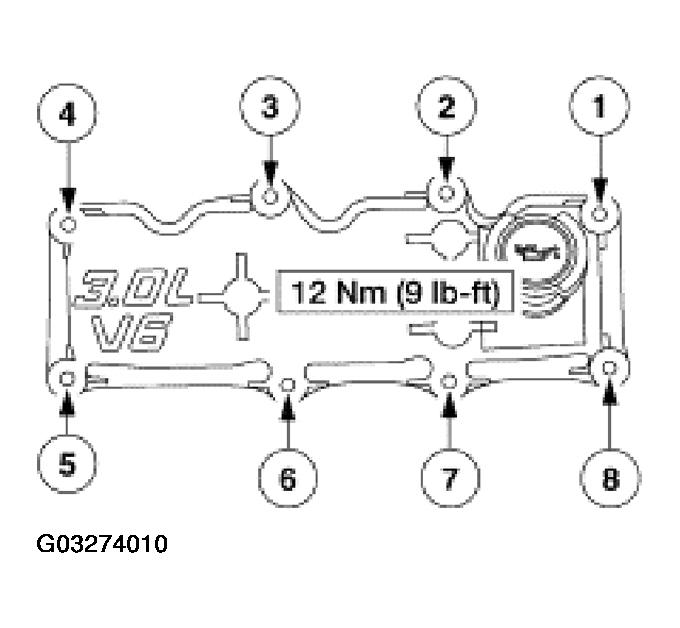

  Fig 4: Valve Cover Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Connect the crankcase ventilation tube.

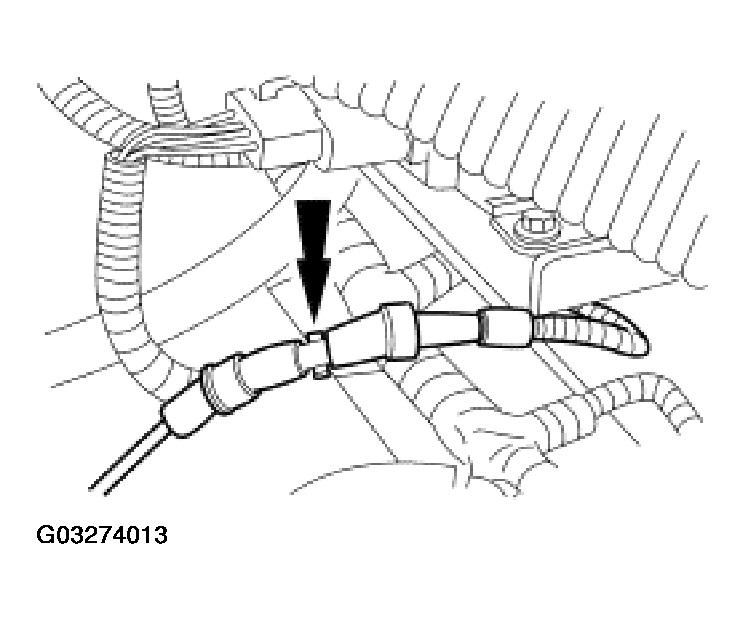

Fig 5: Connecting Crankcase Ventilation Tube
Courtesy of FORD MOTOR CO.
Connect the wiring harness to the valve cover studs.

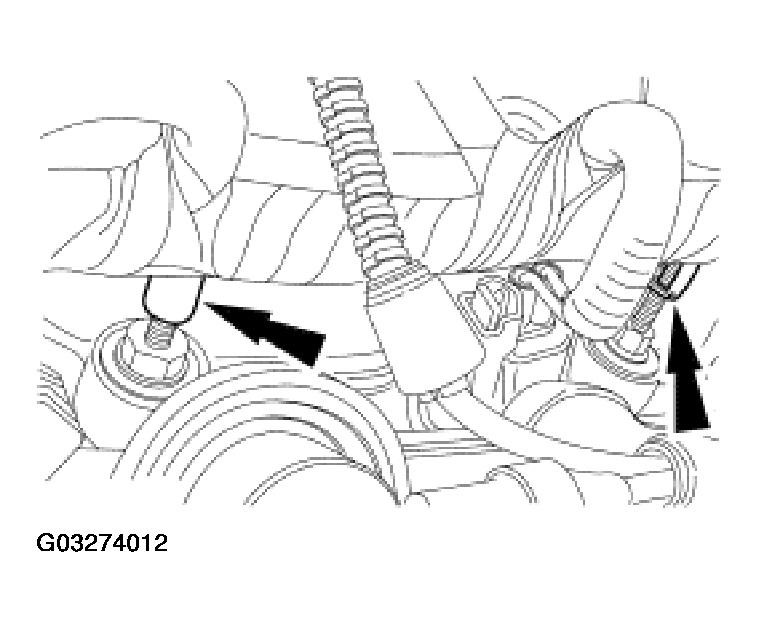

Fig 6: Connecting Wiring Harness To Valve Cover Studs
Courtesy of FORD MOTOR CO.
Connect the vacuum hose.

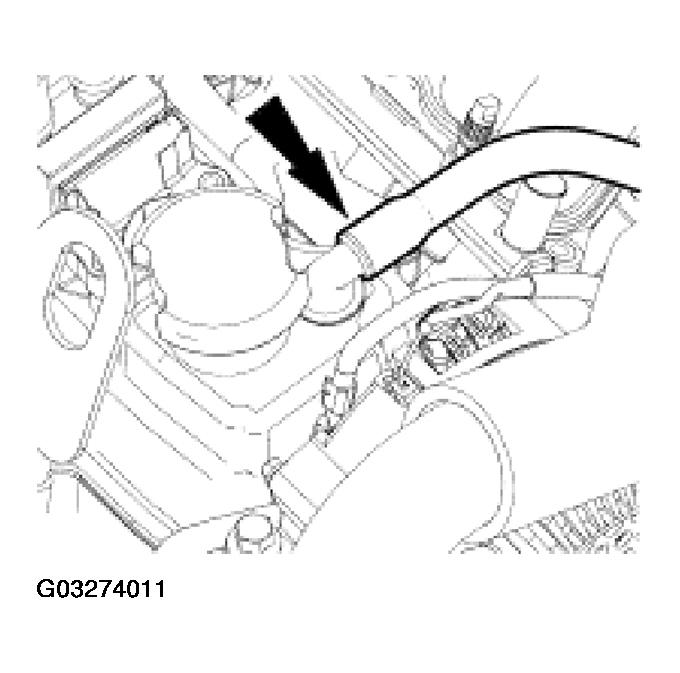

Fig 7: Connecting Vacuum Hose
Courtesy of FORD MOTOR CO.
Position the engine control sensor wiring and connect it to the mass air flow sensor.

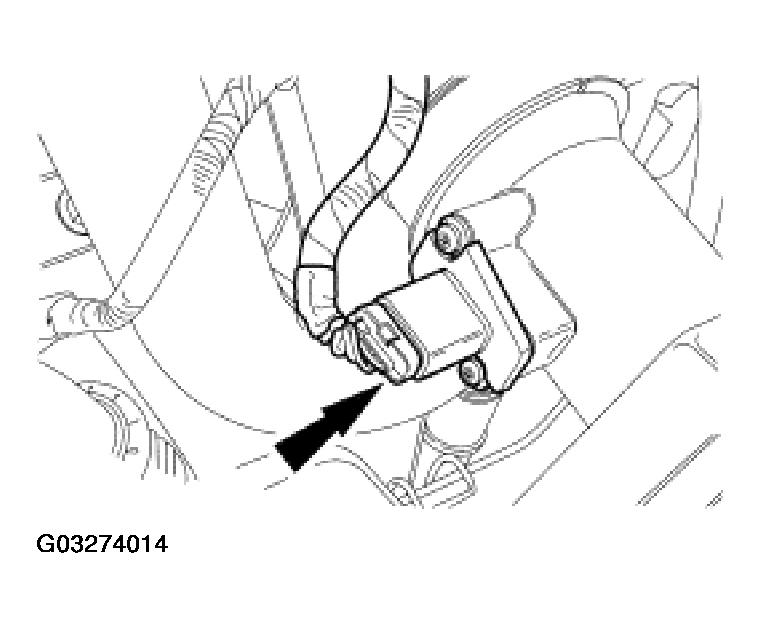

Fig 8: Positioning Engine Control Sensor Wiring & Connect MAF Sensor
Courtesy of FORD MOTOR CO.

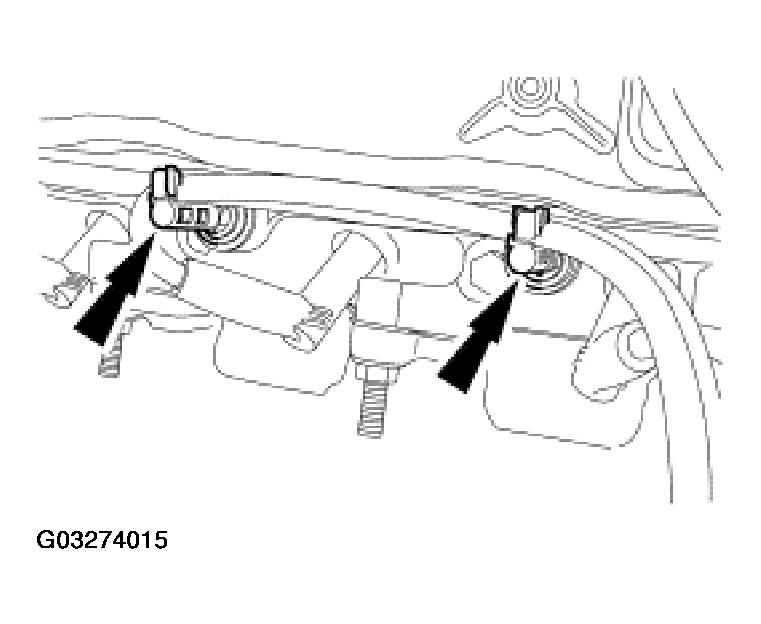

Connect the spark plug wires to the RH spark plug wire holders.

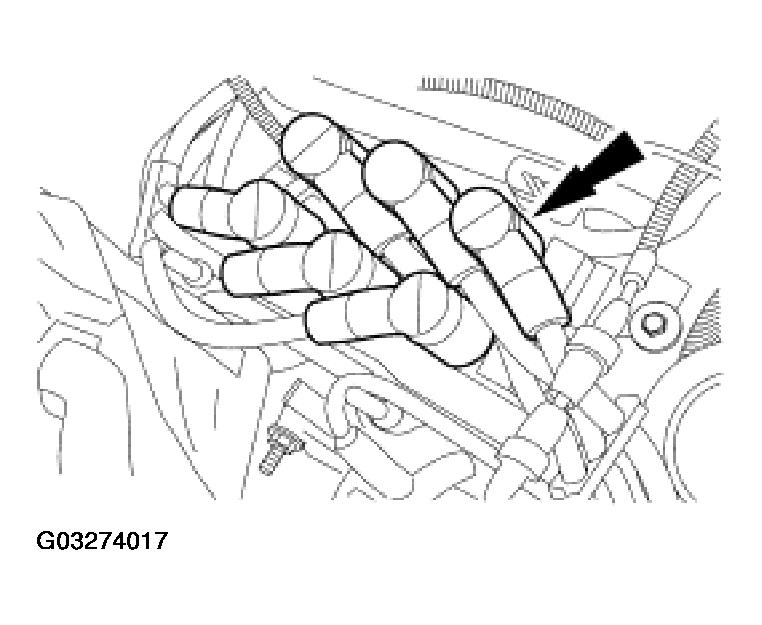

Fig 9: Connecting Spark Plug Wires To RH Spark Plug Wire Holders
Courtesy of FORD MOTOR CO.
Connect the heater hose support.

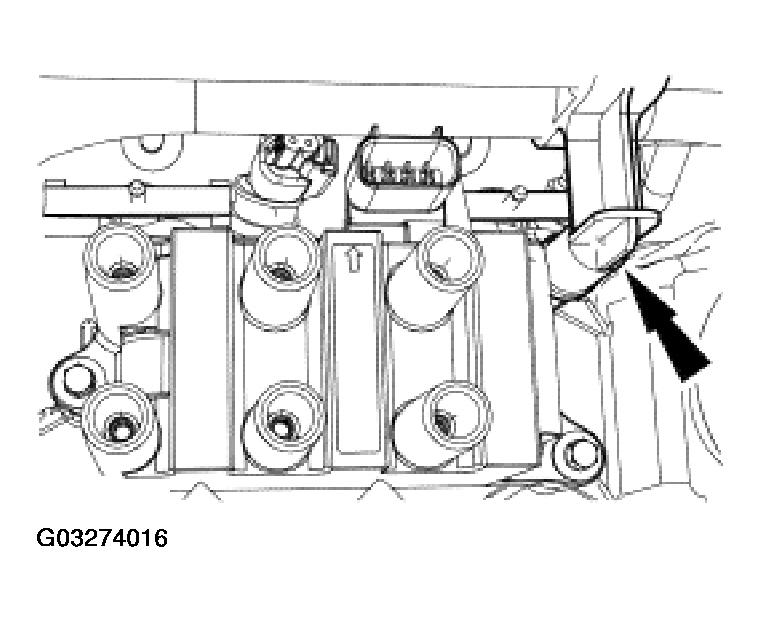

Fig 10: Connecting Heater Hose Support
Courtesy of FORD MOTOR CO.
Install the spark plug wires.

Fig 11: Installing Spark Plug Wires
Courtesy of FORD MOTOR CO.
Connect the ignition coil electrical connector.

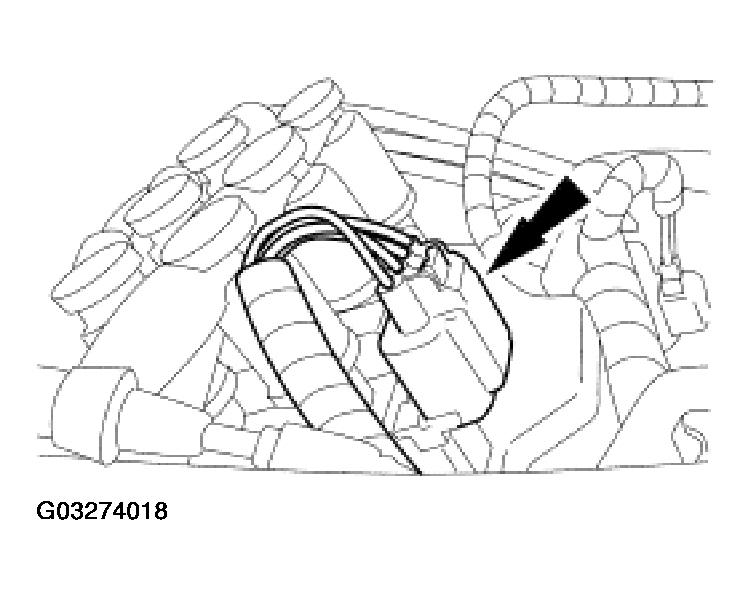

Fig 12: Connecting Ignition Coil Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
