Valve Cover LH: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
  2. Disconnect the LH spark plug wire holders.

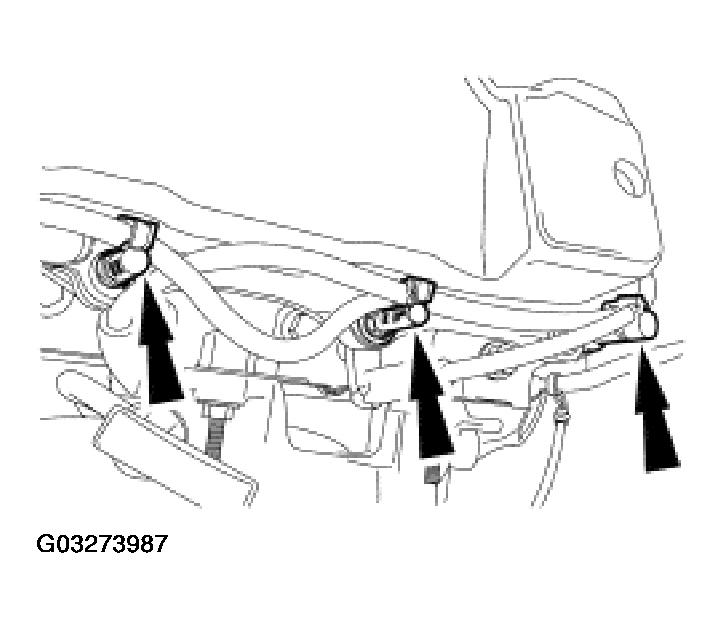

    Fig 1: Disconnecting LH Spark Plug Wire Holders
    G03273987Courtesy of FORD MOTOR CO.
  3. Disconnect the engine control harness from the valve cover studs.

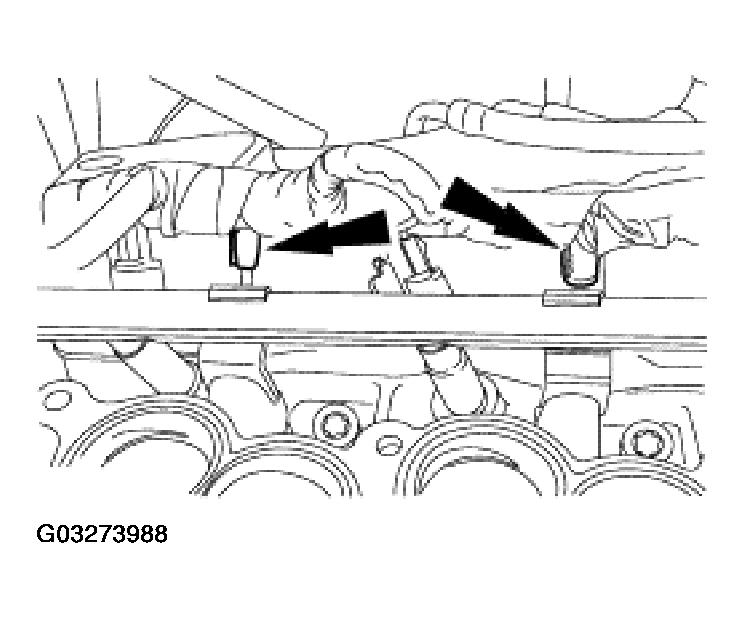

    Fig 2: Disconnecting Engine Control Harness From Valve Cover Studs
    G03273988Courtesy of FORD MOTOR CO.
  4. Remove the three bolts and the five stud bolts.

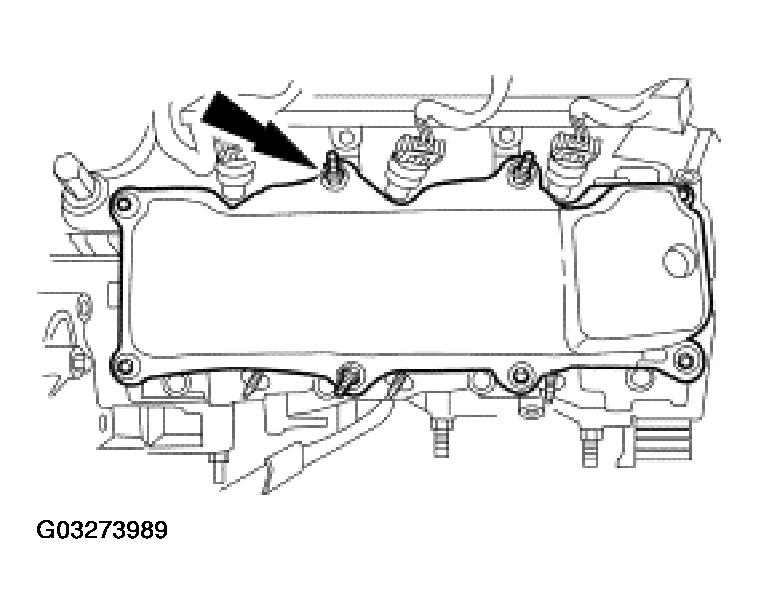

    Fig 3: Removing Three Bolts And Five Stud Bolts
    G03273989Courtesy of FORD MOTOR CO.
    5. NOTE: To prevent stretching the valve cover gasket, loosen silicone gasket and sealant from the cylinder head by sliding a flat knife between the valve cover gasket and cylinder head.
  5. Remove the valve cover.
  6. Remove the valve cover gasket, if required.

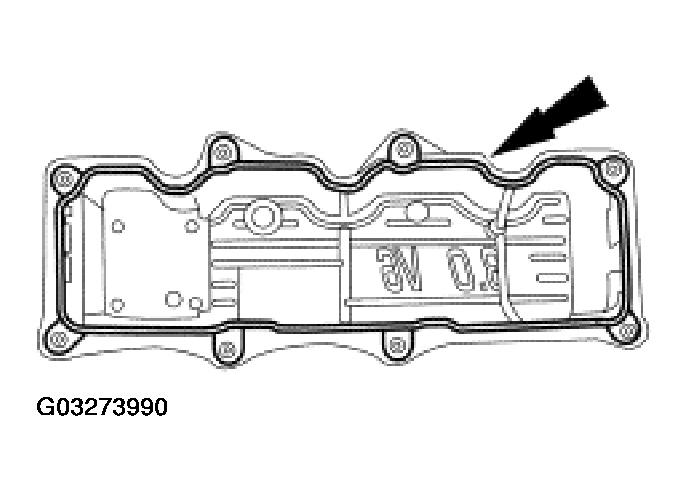

    Fig 4: Removing Valve Cover Gasket
    G03273990Courtesy of FORD MOTOR CO.
