Valve Cover LH: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

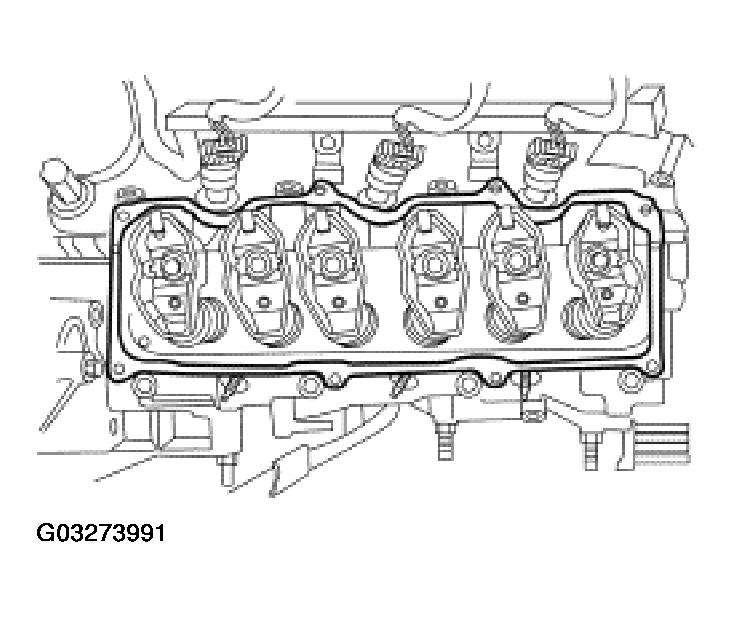

Fig 1: Cleaning All Mating Surfaces

Courtesy of FORD MOTOR CO.

Clean all mating surfaces.
If removed, install the valve cover gasket.

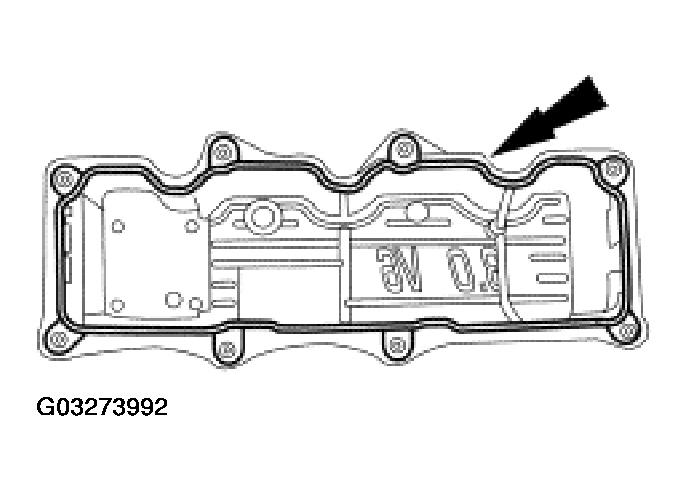

Fig 2: Installing Valve Cover Gasket
Courtesy of FORD MOTOR CO.

NOTE: If the valve cover is not installed within four minutes, remove the sealant and reapply.

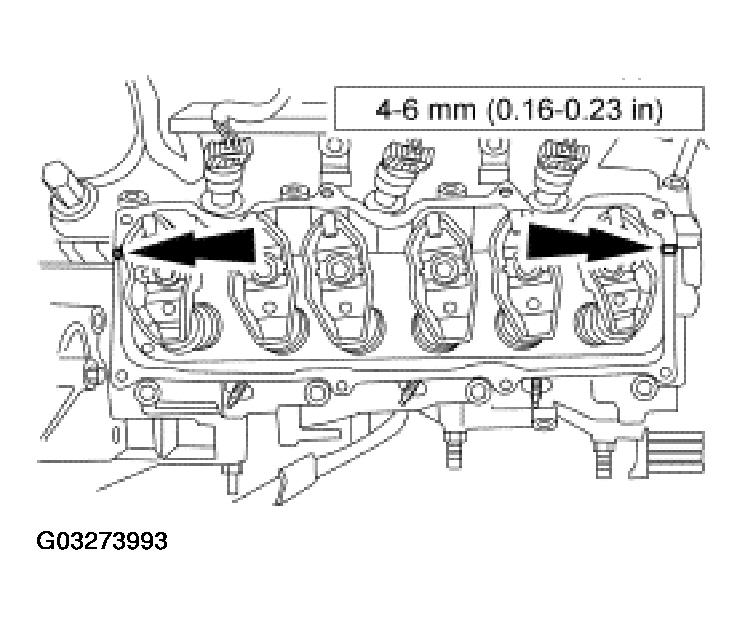

Fig 3: Applying Bead Of Silicone Gasket And Sealant In Two Places

Courtesy of FORD MOTOR CO.

Apply a bead of silicone gasket and sealant in two places where the cylinder head and lower intake manifold meet.
Install the valve cover.
- Position the valve cover.
- Tighten the three bolts and the five stud bolts in the sequence shown.

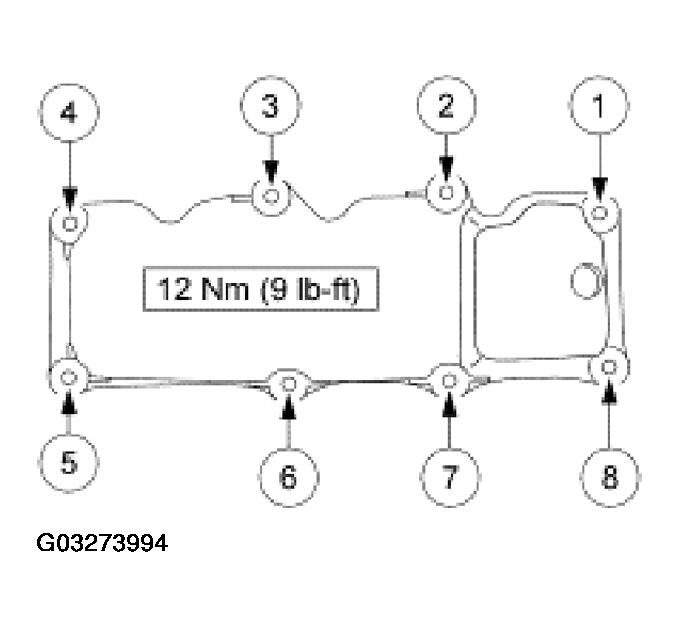

  Fig 4: Valve Cover Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Connect the engine control harness to the valve cover.

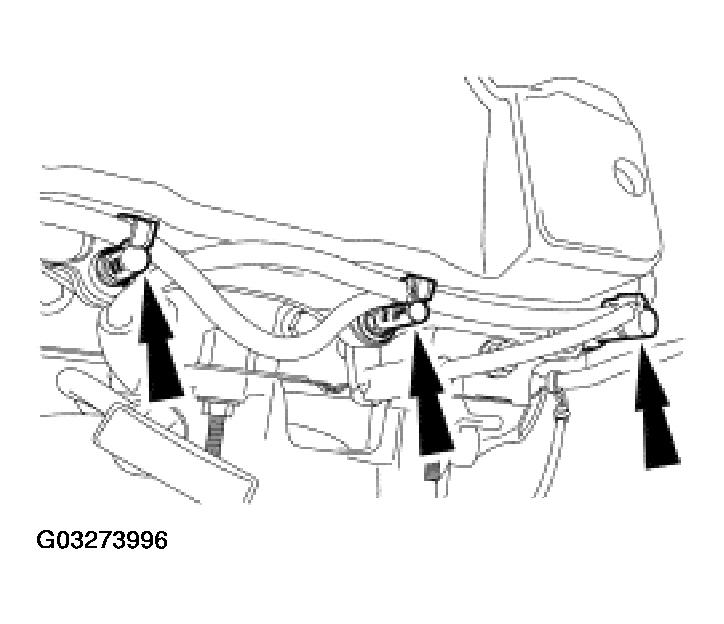

Fig 5: Connecting Engine Control Harness To Valve Cover
Courtesy of FORD MOTOR CO.
Connect the LH spark plug wire holders.

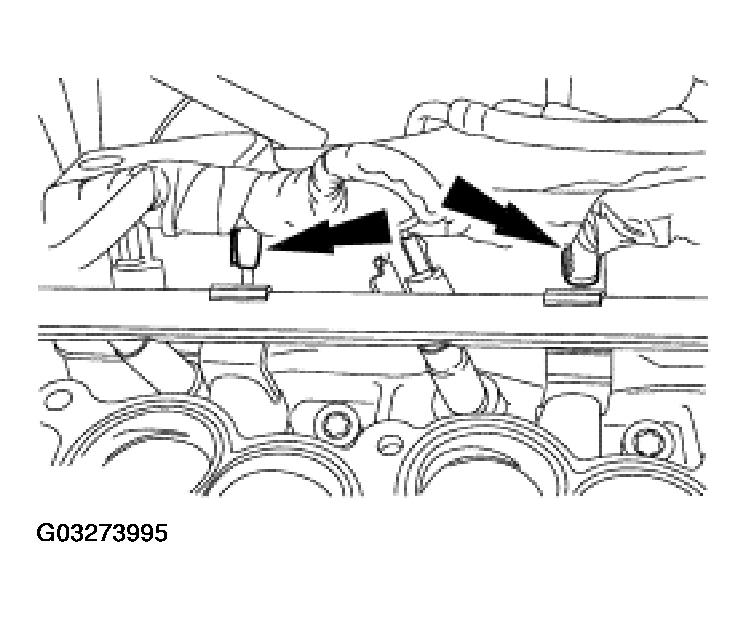

Fig 6: Connecting LH Spark Plug Wire Holders
Courtesy of FORD MOTOR CO.
Install the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
