Timing Chain: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  3. Rotate the crankshaft and align the timing marks.

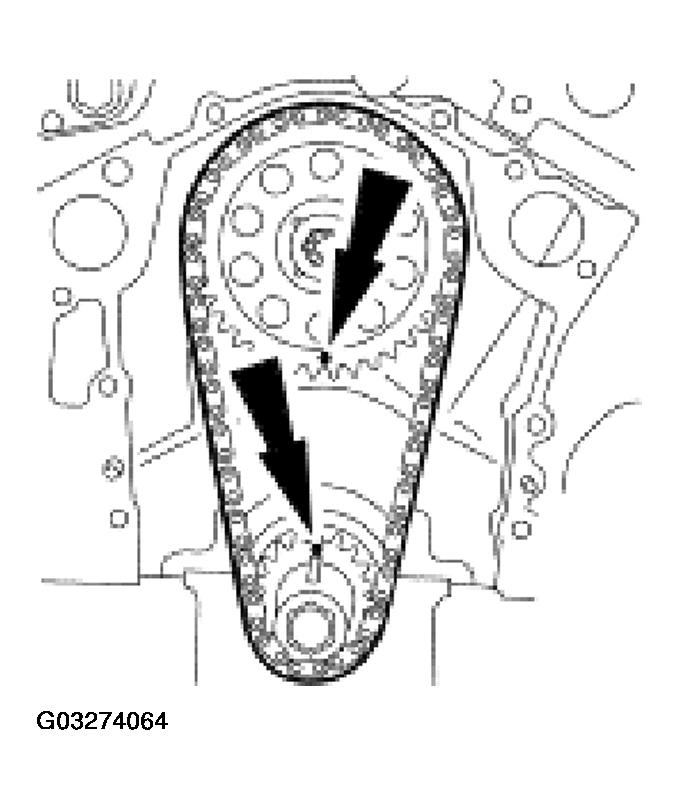

    Fig 1: Rotating Crankshaft And Align Timing Marks
    G03274064Courtesy of FORD MOTOR CO.
  4. Remove the bolt.

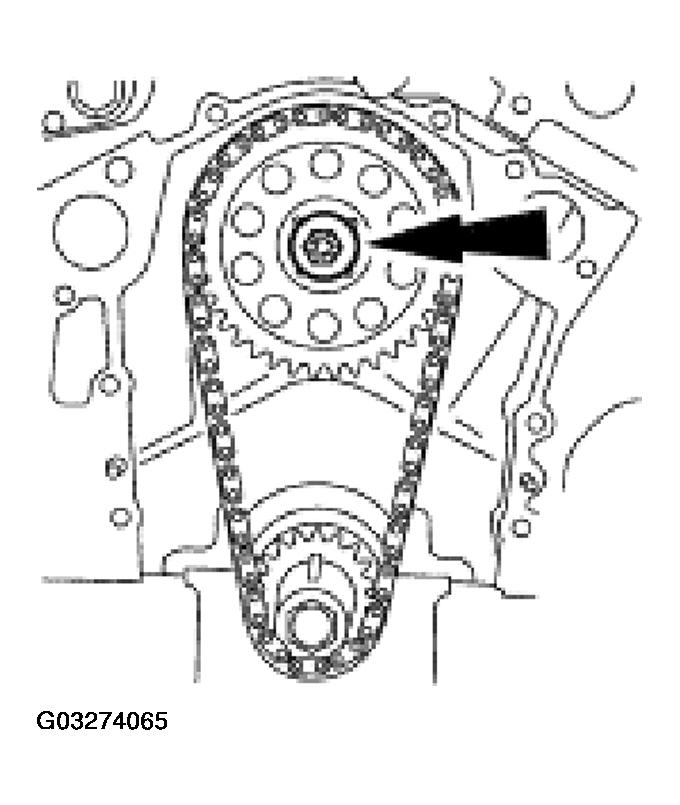

    Fig 2: Removing Bolt
    G03274065Courtesy of FORD MOTOR CO.
  5. Remove the timing chain, the camshaft sprocket and the crankshaft sprocket as an assembly.

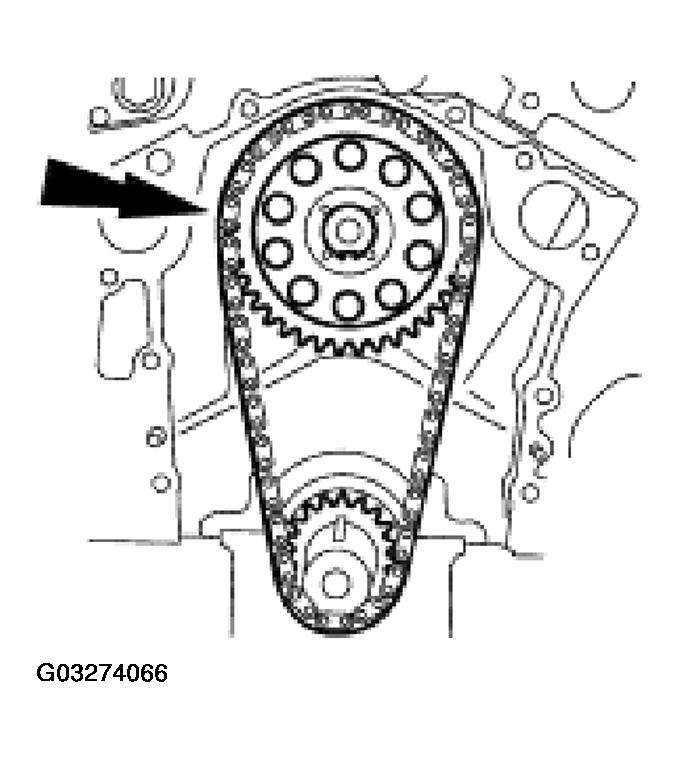

    Fig 3: Removing Timing Chain, Camshaft Sprocket And Crankshaft Sprocket As An Assembly
    G03274066Courtesy of FORD MOTOR CO.
