Timing Chain: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the timing marks.

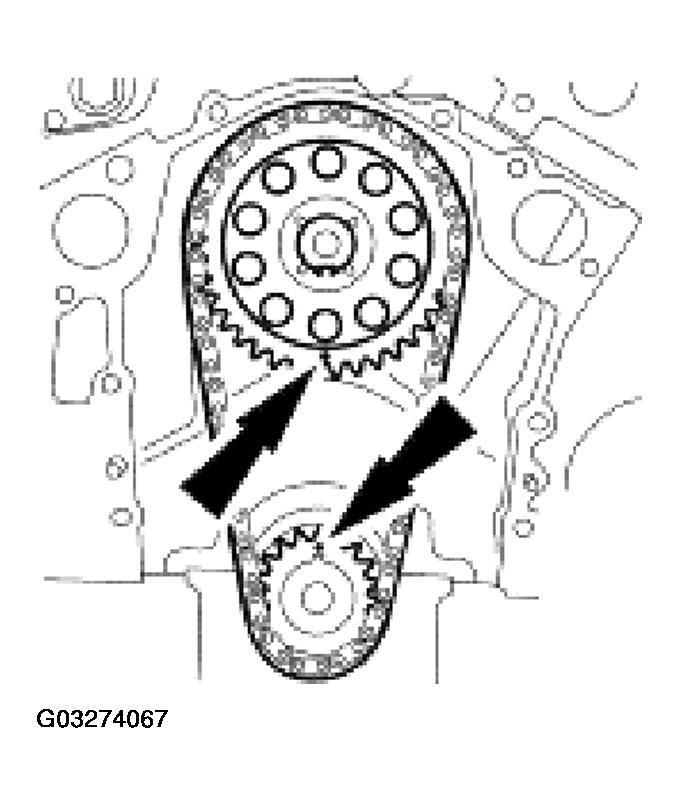

    Fig 1: Aligning Timing Marks
    G03274067Courtesy of FORD MOTOR CO.
  2. Install the timing chain, the camshaft sprocket and the crankshaft sprocket as an assembly.

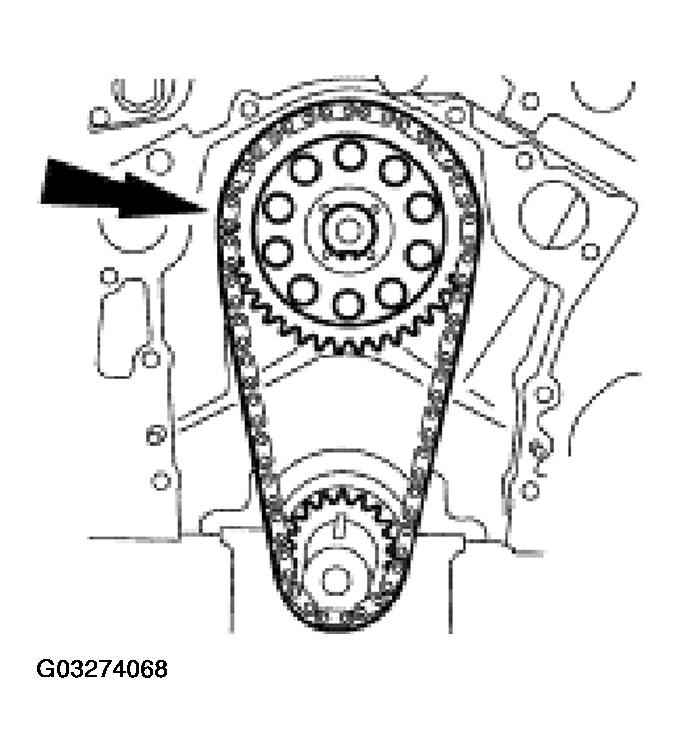

    Fig 2: Installing Timing Chain, Camshaft Sprocket
    G03274068Courtesy of FORD MOTOR CO.
  3. Install the bolt.

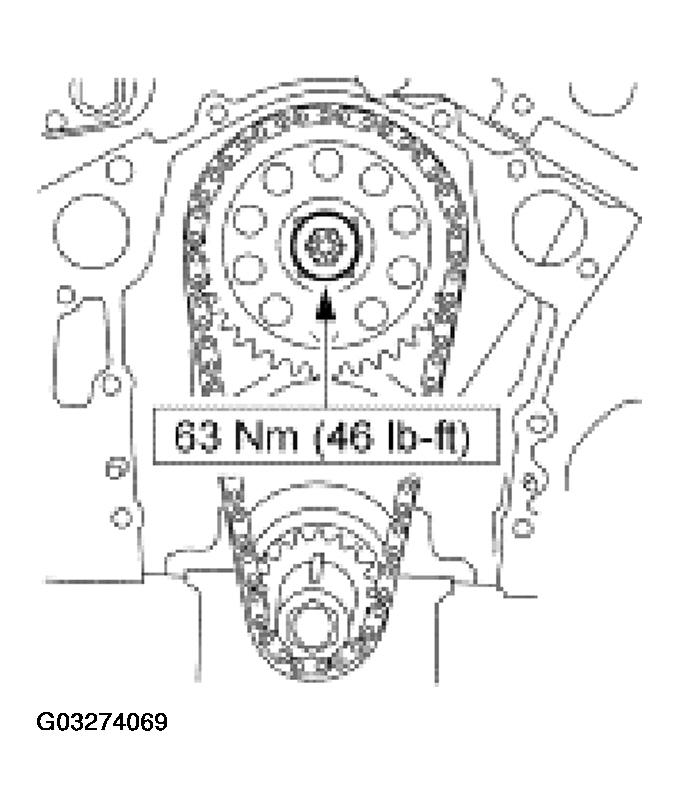

    Fig 3: Installing Bolt
    G03274069Courtesy of FORD MOTOR CO.
  4. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  5. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
