Oil Pump: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the oil pan. For additional information, refer to OIL PAN - 4X2  or OIL PAN - 4x4 .
  3. Remove the bolt and the oil pump.

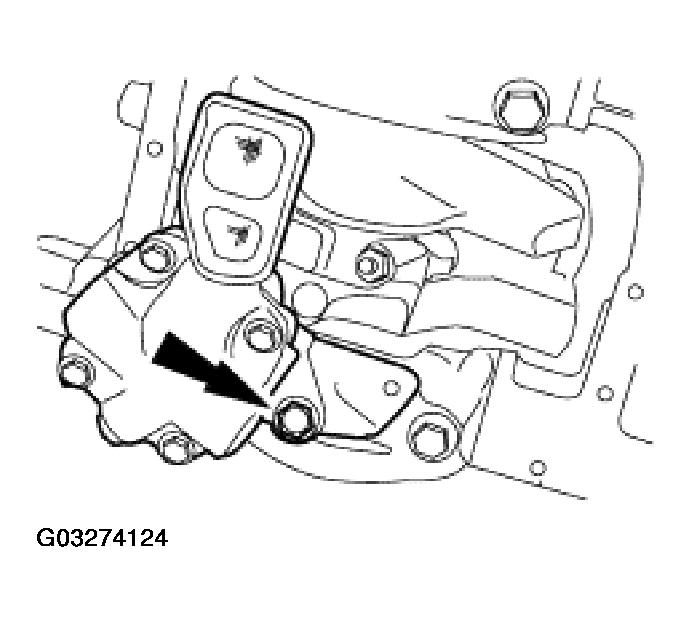

    Fig 1: Removing Oil Pump
    G03274124Courtesy of FORD MOTOR CO.
  4. Clean and inspect the oil pump assembly. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
