Oil Pump: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all the sealing surfaces.

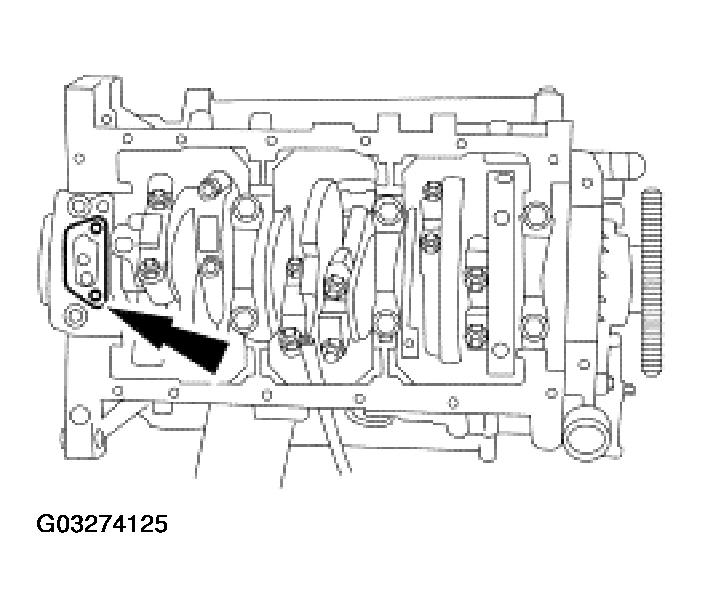

    Fig 1: Cleaning All Sealing Surfaces
    G03274125Courtesy of FORD MOTOR CO.
  2. Install the oil pump and the bolt.

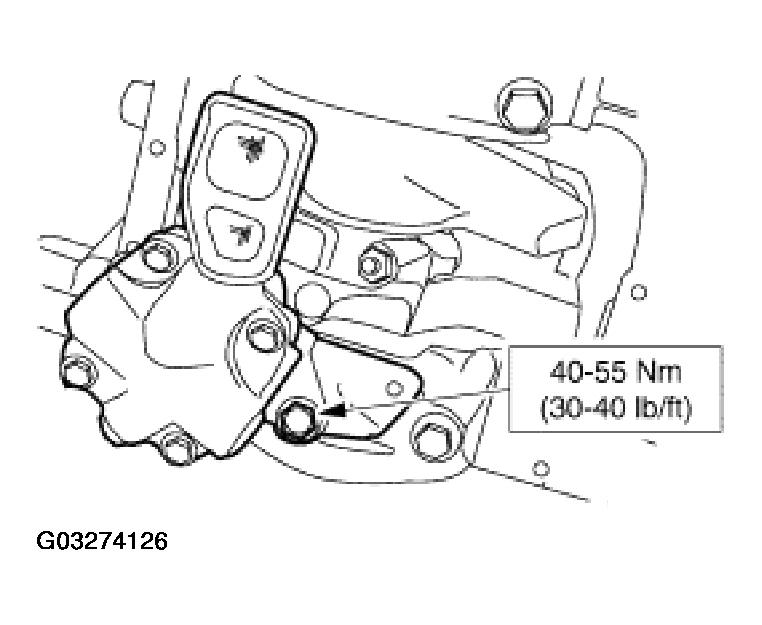

    Fig 2: Installing Oil Pump And Bolt
    G03274126Courtesy of FORD MOTOR CO.
  3. Install the oil pan. For additional information, refer to OIL PAN - 4X2  or OIL PAN - 4x4 .
  4. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
