Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the engine control sensor wiring from the oil pressure sensor.

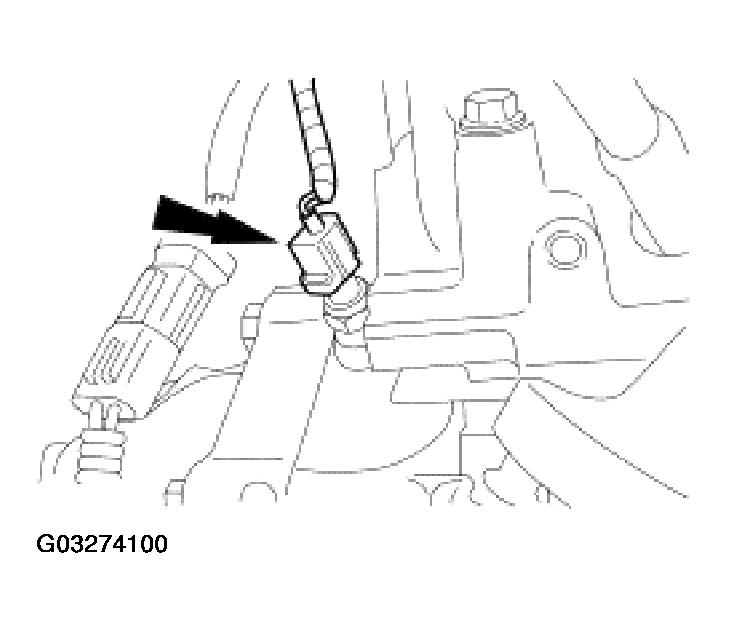

    Fig 1: Disconnecting Oil Pressure Sensor Connector
    G03274100Courtesy of FORD MOTOR CO.
  3. Remove the oil pressure sensor.

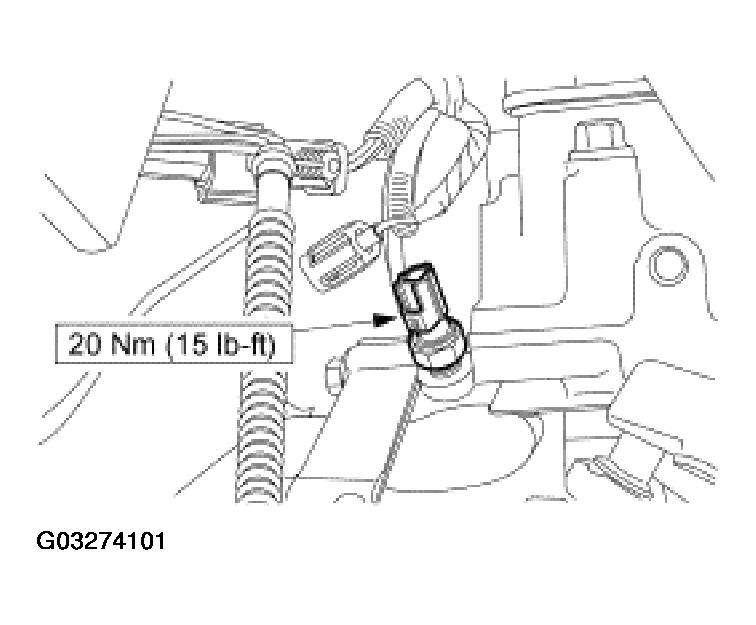

    Fig 2: Removing Oil Pressure Sensor
    G03274101Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
