Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel or flexplate. For additional information, refer to GENERAL SPECIFICATIONS - CRANKSHAFT AND FLYWHEEL .
    2. CAUTION: Tape the U-joint bearing caps to prevent them from falling off the U-joints
    CAUTION: Index-mark the front axle pinion flange to the front driveshaft.
  2. Remove the front driveshaft from the front axle pinion flange.
    • Discard the bolts and straps.

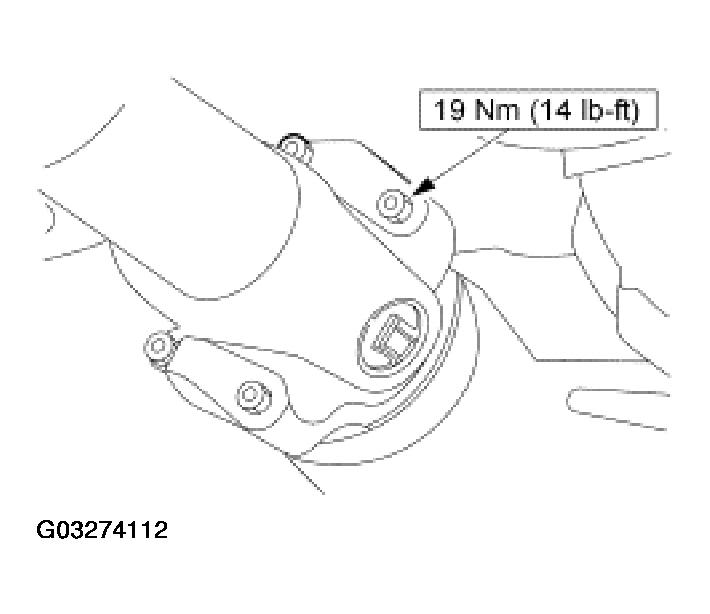

      Fig 1: Removing Front Driveshaft From Front Axle Pinion Flange
      G03274112Courtesy of FORD MOTOR CO.
  3. Drain the engine oil.
  4. Secure the front axle housing to a suitable jack.

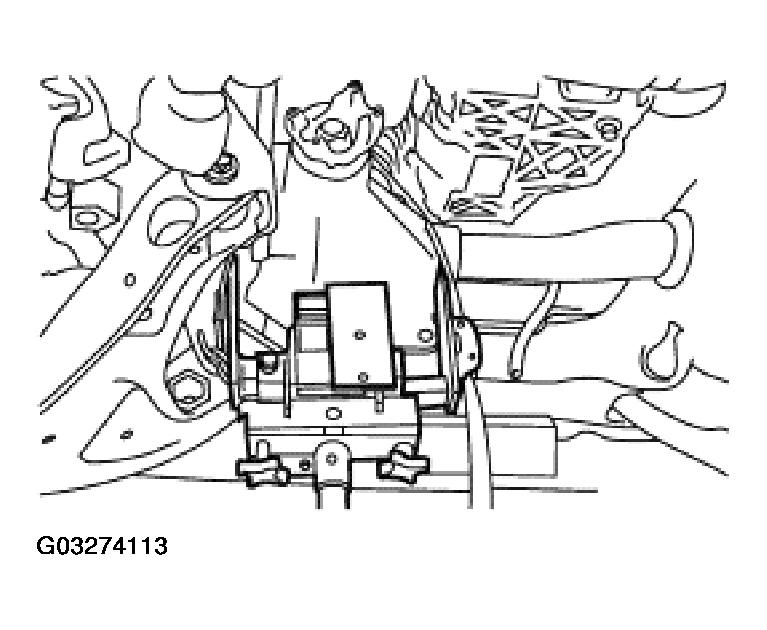

    Fig 2: Securing Front Axle Housing To A Suitable Jack
    G03274113Courtesy of FORD MOTOR CO.
  5. Remove the three axle housing mounting bolts and lower the axle housing approximately two inches.

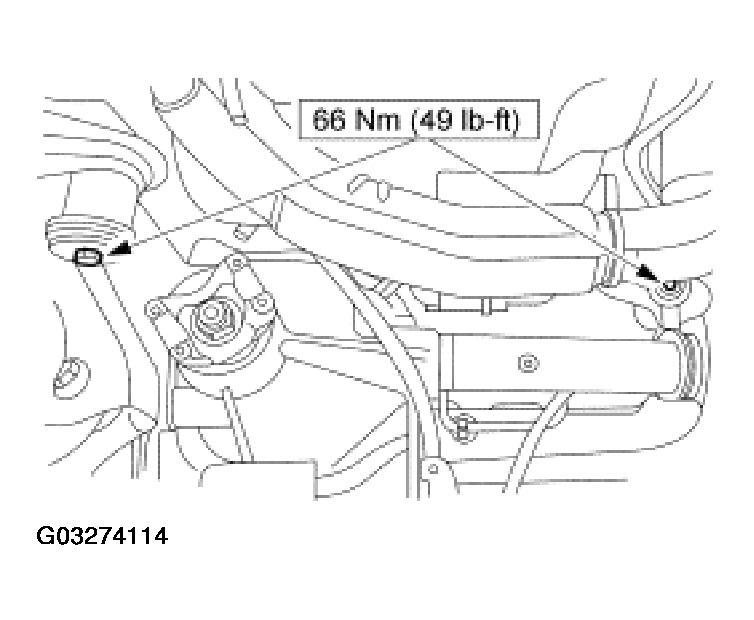

    Fig 3: Lowering Axle Housing
    G03274114Courtesy of FORD MOTOR CO.
  6. Remove the oil pan bolts and the oil pan.

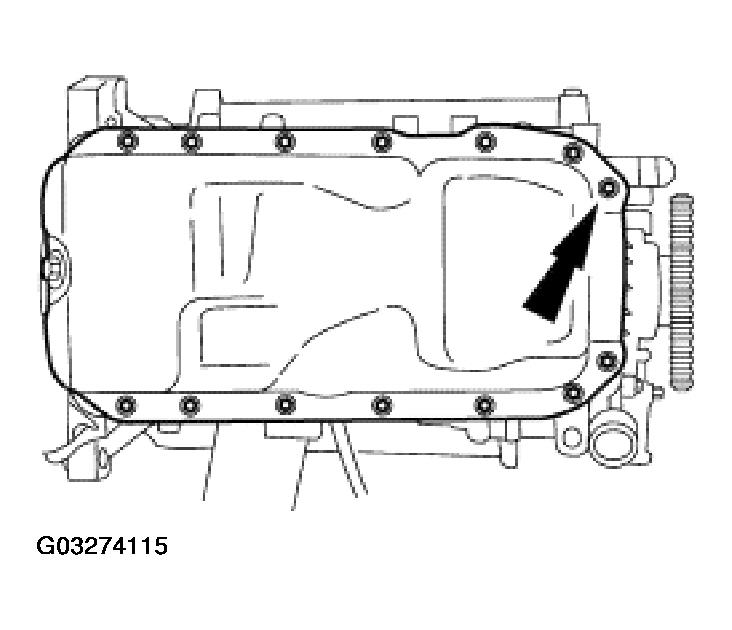

    Fig 4: Removing Oil Pan Bolts And Oil Pan
    G03274115Courtesy of FORD MOTOR CO.
  7. Remove and discard the oil pan gasket.

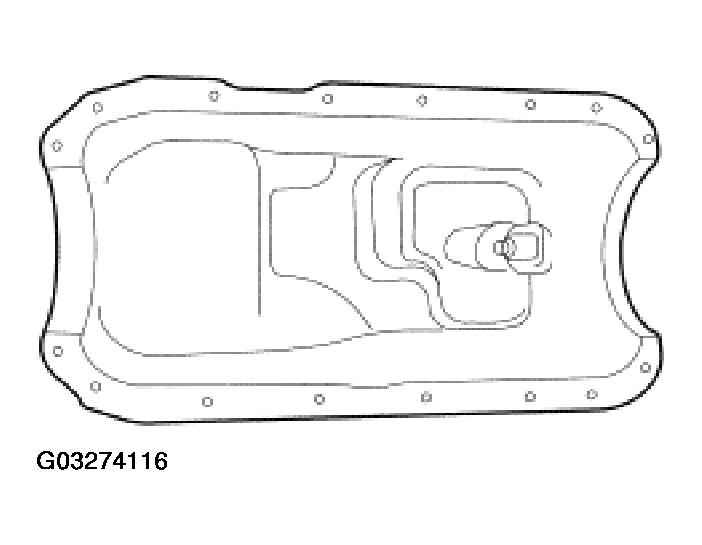

    Fig 5: Removing Oil Pan Gasket
    G03274116Courtesy of FORD MOTOR CO.
