Oil Pan - 4x2: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

  1. Remove the flywheel or flexplate. For additional information, refer to GENERAL SPECIFICATIONS - CRANKSHAFT AND FLYWHEEL .
  2. Drain the engine oil.

    3. VEHICLES EQUIPPED WITH COIL SPRINGS

  3. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  4. Remove the nuts from the engine mounts.

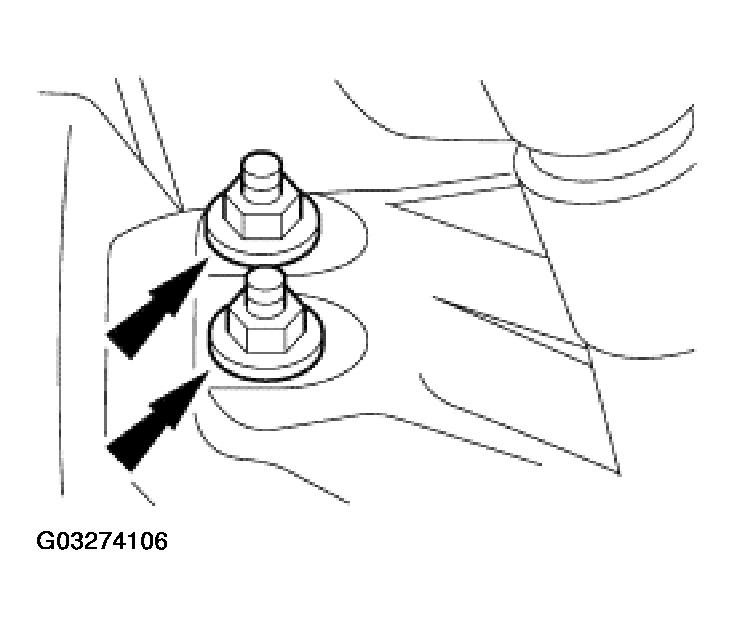

    Fig 1: Removing Nuts From Engine Mounts
    G03274106Courtesy of FORD MOTOR CO.
  5. Install the Lifting Eyes, the Three-Bar Engine Support and raise the engine 43 mm (1.72 in).
  6. Install blocks between the engine mounts and the support brackets.

    7. ALL VEHICLES

  7. Remove the bolts and the oil pan.
    • Discard the gasket.

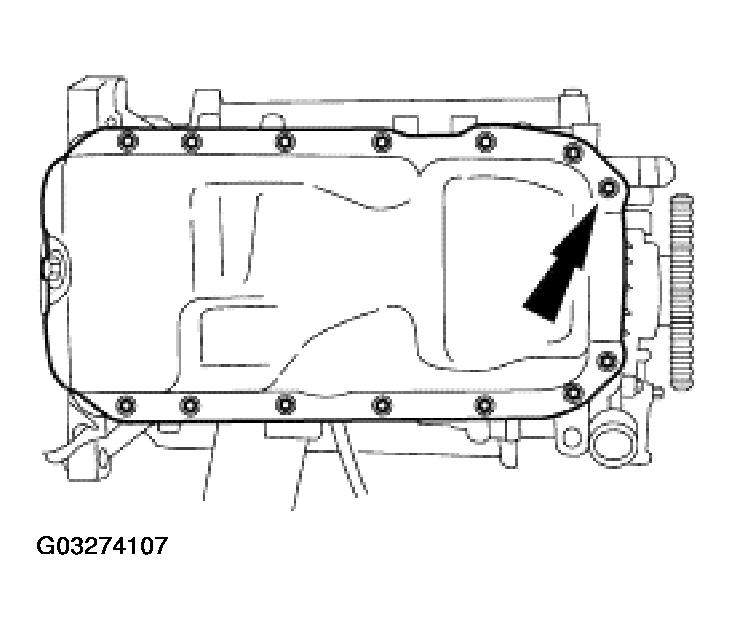

      Fig 2: Removing Bolts And Oil Pan
      G03274107Courtesy of FORD MOTOR CO.
