Oil Level Indicator and Tube: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the sealing surfaces of the oil level indicator tube with silicone gasket and sealant.

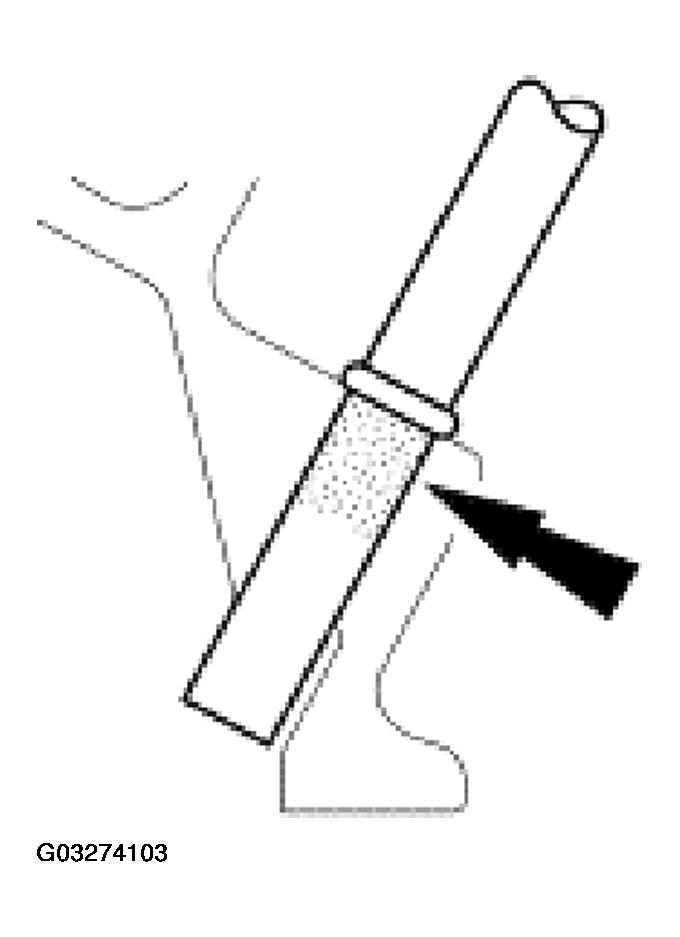

    Fig 1: Coating Sealing Surfaces Of Oil Level Indicator Tube With Silicone Gasket And Sealant
    G03274103Courtesy of FORD MOTOR CO.
  2. Install the oil level indicator tube assembly.

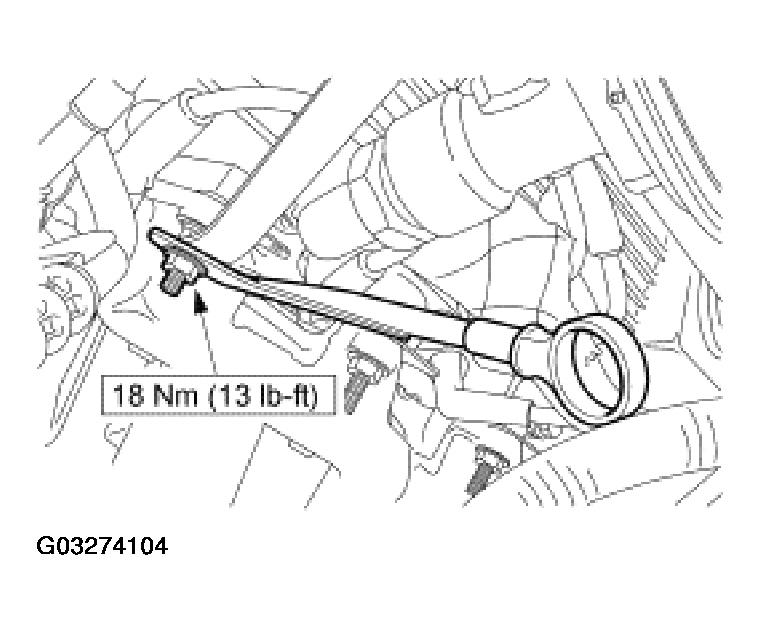

    Fig 2: Installing Oil Level Indicator Tube Assembly
    G03274104Courtesy of FORD MOTOR CO.
