Lower Intake Manifold: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
Remove both the valve covers. For additional information, refer to VALVE COVER RH .
Disconnect the upper radiator hose, heater hose and coolant bypass hose.

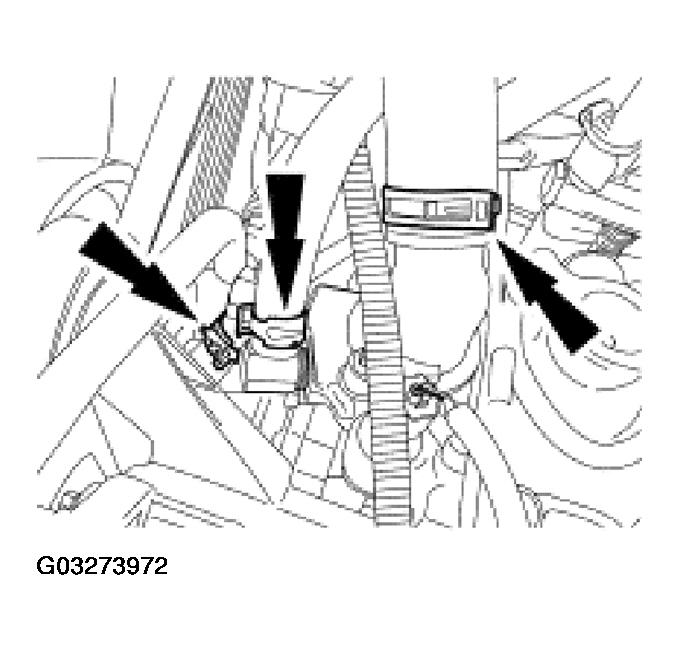

Fig 1: Disconnecting Upper Radiator Hose, Heater Hose And Coolant Bypass Hose
Courtesy of FORD MOTOR CO.
Disconnect the engine coolant temperature (ECT) sensor and coolant temperature sender electrical connectors.

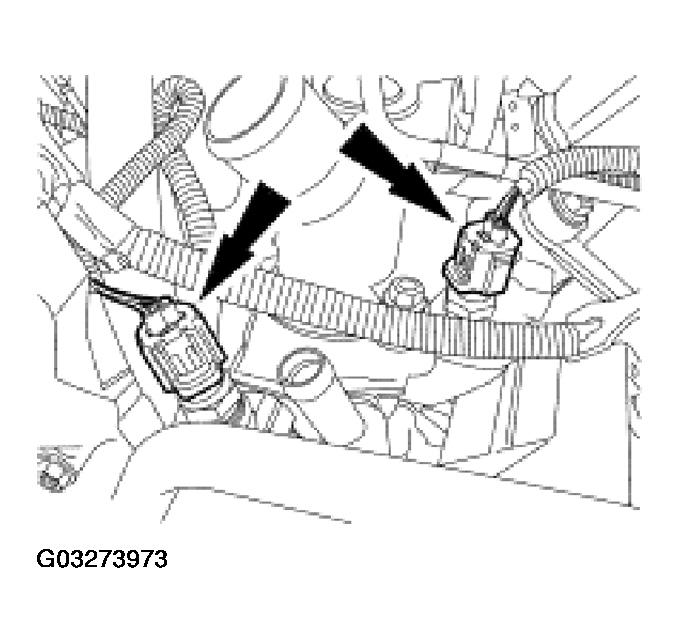

Fig 2: Disconnecting ECT Sensor And Coolant Temperature Sender Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the crankshaft position (CKP) sensor and detach the wiring from the stud bolt.

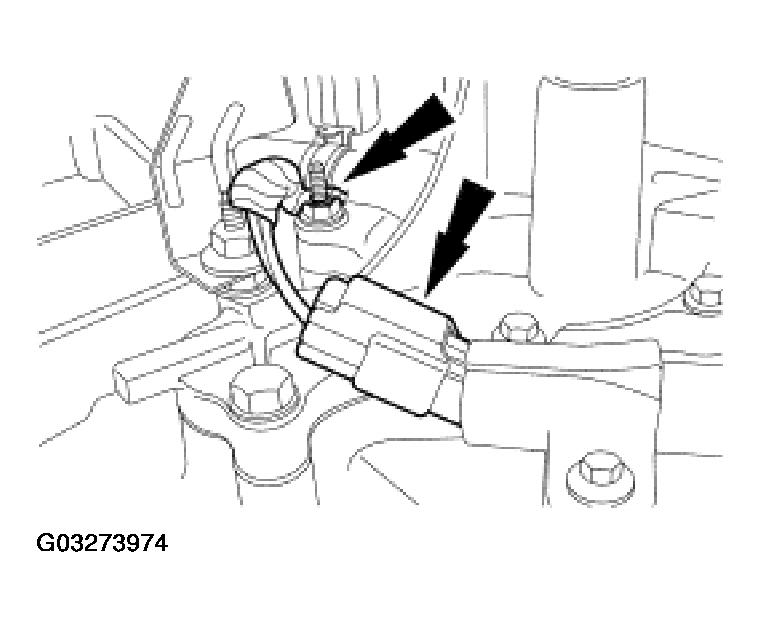

Fig 3: Disconnecting CKP Sensor And Detach Wiring From Stud Bolt
Courtesy of FORD MOTOR CO.
Disconnect the fuel injector electrical connectors and position the engine control wiring aside.
Release the fuel pressure and disconnect the fuel tube. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Loosen all the rocker arm bolts.

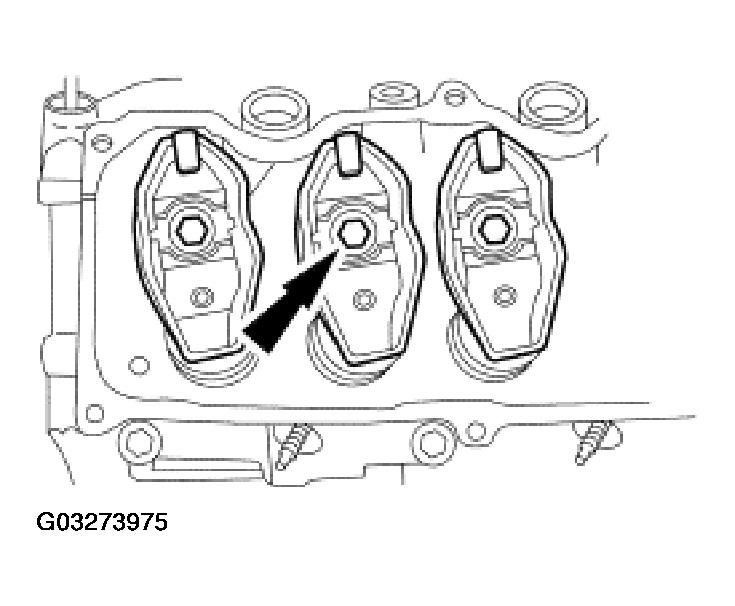

Fig 4: Loosening All Rocker Arm Bolts
Courtesy of FORD MOTOR CO.

NOTE: Identify the location of each pushrod. Each pushrod is to be installed in the original location to prevent premature wear.

Remove all the pushrods.
Remove the bolts from the lower intake manifold.

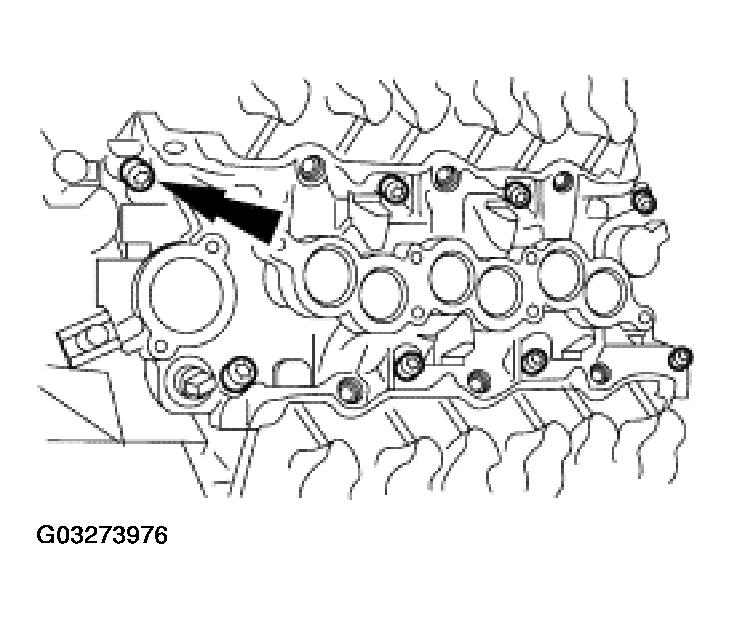

Fig 5: Removing Bolts From Lower Intake Manifold
Courtesy of FORD MOTOR CO.

NOTE: Gently loosen the intake manifold to separate the silicone sealant from the cylinder block.

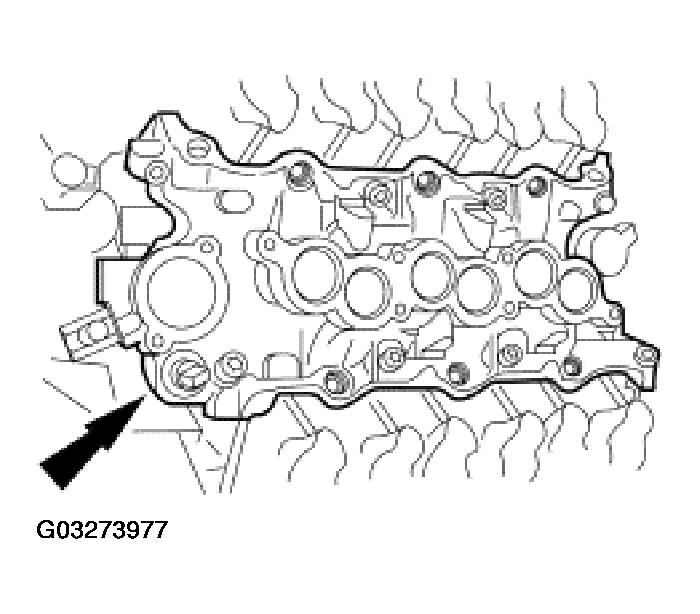

Fig 6: Removing Lower Intake Manifold

Courtesy of FORD MOTOR CO.

Remove the lower intake manifold.
Remove and discard the intake manifold gaskets and end seals.

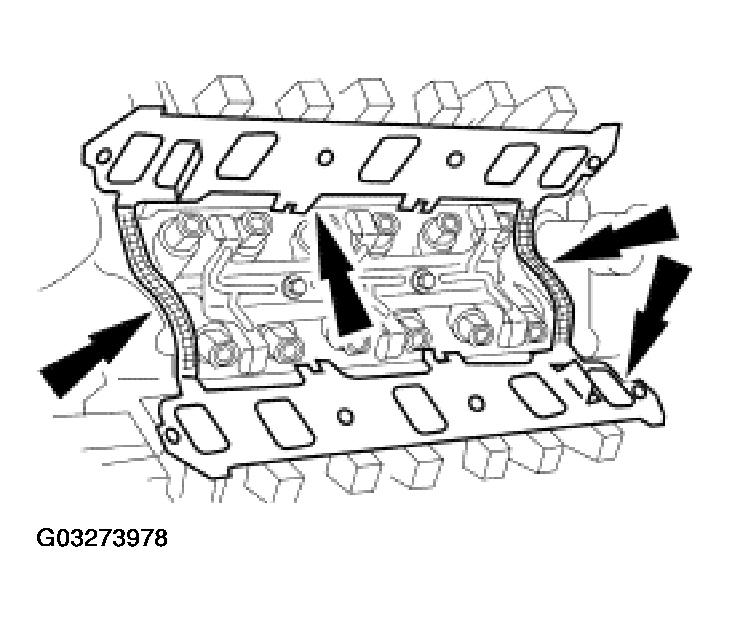

Fig 7: Removing Intake Manifold Gaskets And End Seals
Courtesy of FORD MOTOR CO.
