Hydraulic Lash Adjusters: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For a valve train noise concern, inspect the valve-to-rocker arm clearance, rocker arms and push rods for wear. For additional information refer to ENGINE SYSTEM-GENERAL INFORMATION .

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Remove the rocker arms and the push rods.

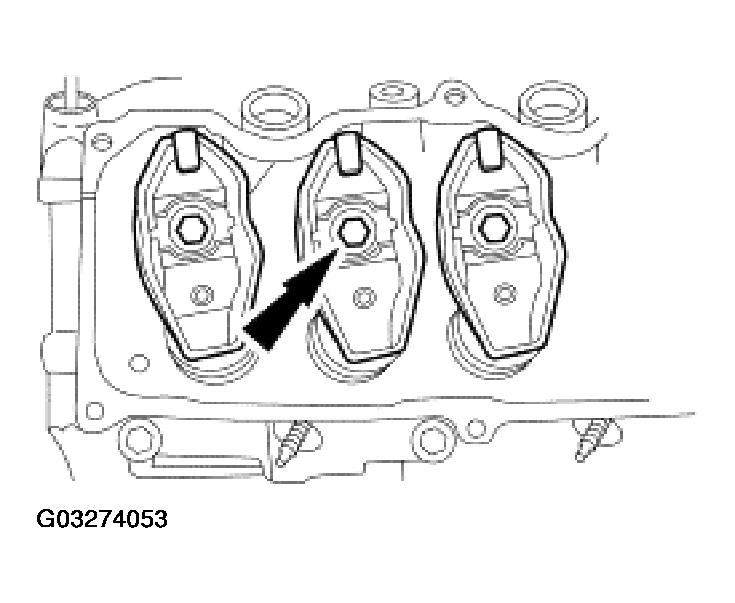

Fig 1: Removing Rocker Arms And Push Rods
Courtesy of FORD MOTOR CO.
Remove the tappet guide plate retainer.

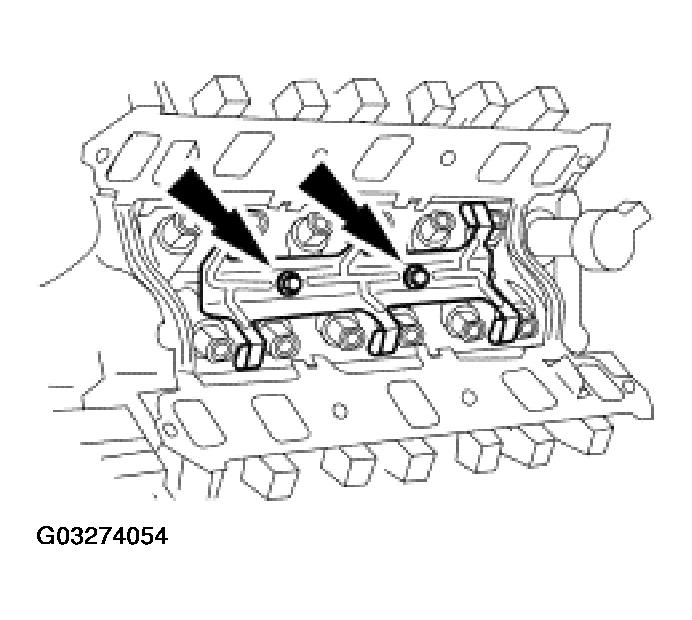

Fig 2: Removing Tappet Guide Plate Retainer
Courtesy of FORD MOTOR CO.
Remove the valve tappet guide plates.

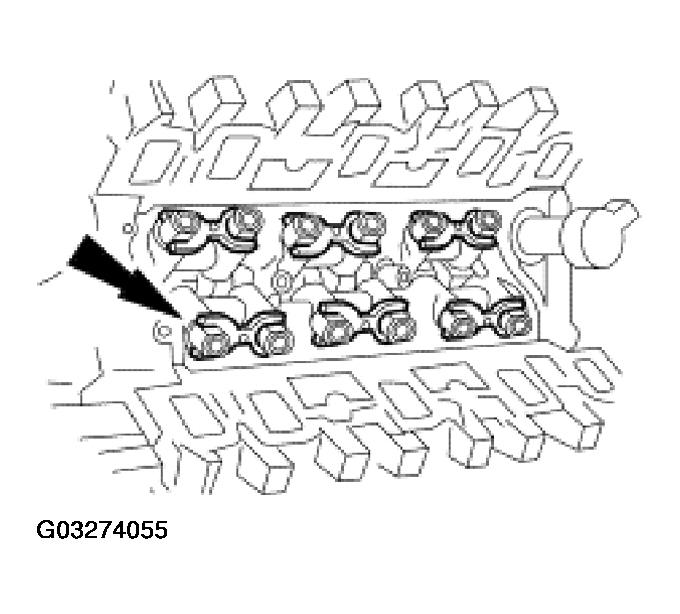

Fig 3: Removing Valve Tappet Guide Plates
Courtesy of FORD MOTOR CO.
Remove the valve tappets.

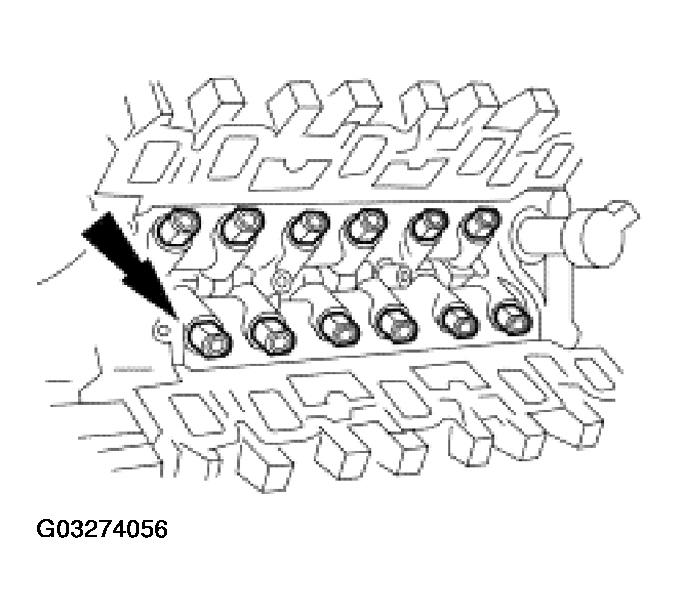

Fig 4: Removing Valve Tappets
Courtesy of FORD MOTOR CO.
