In-Vehicle Repair: Flywheel: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch. For additional information, refer to CLUTCH .
  2. Remove the flywheel bolts.

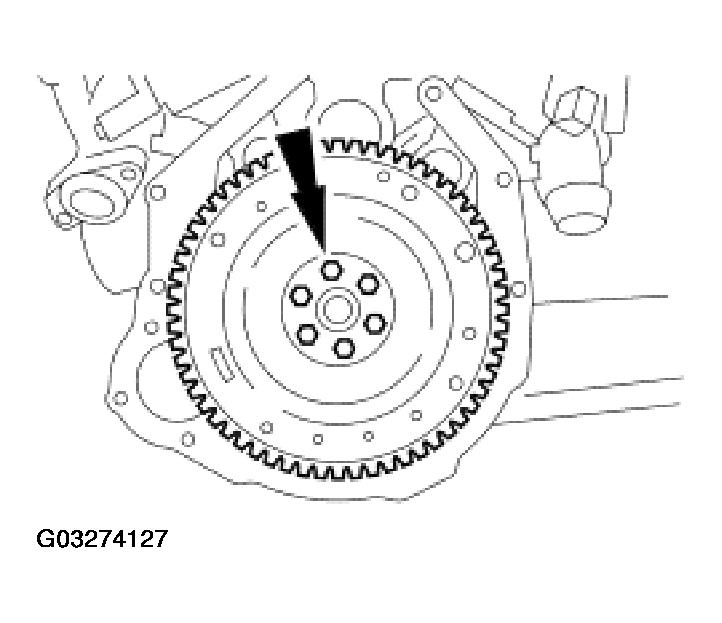

    Fig 1: Removing Flywheel Bolts
    G03274127Courtesy of FORD MOTOR CO.
  3. Remove the flywheel.
