In-Vehicle Repair: Flywheel: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.
    • Install the six bolts. Tighten the bolts in a criss-cross pattern.

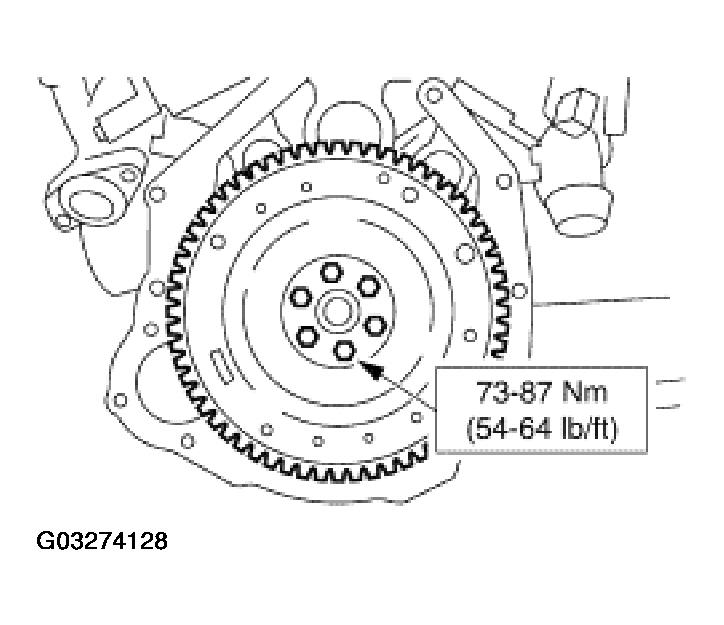

      Fig 1: Installing Flywheel Bolts
      G03274128Courtesy of FORD MOTOR CO.
  2. Install the clutch. For additional information, refer to CLUTCH .
