In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 5R44E & 5R55E .
  2. Remove the bolts and the flexplate.
    • Inspect the flexplate for cracks or other damage. Install a new flexplate if necessary.

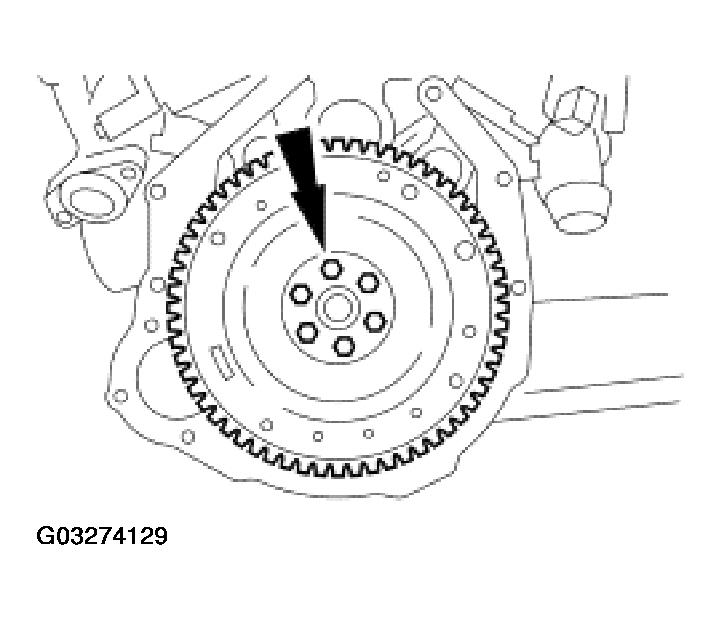

      Fig 1: Removing Flexplate
      G03274129Courtesy of FORD MOTOR CO.
