In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Special bolts are used for the installation. Do not use standard bolts.
  1. Position the flexplate on the crankshaft and install the bolts.
    • Tighten the bolts in a criss-cross pattern.

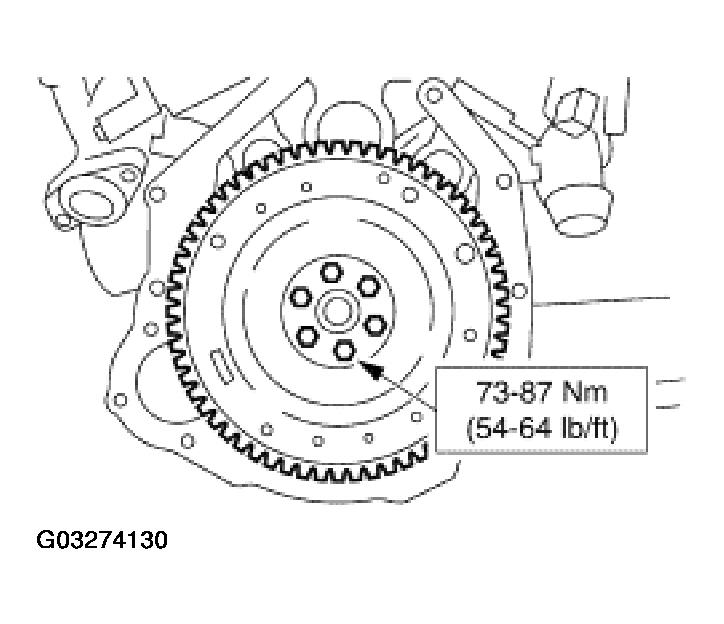

      Fig 1: Installing Flexplate
      G03274130Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 5R44E & 5R55E .
