Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the exhaust manifold gasket and the exhaust manifold.
  2. Install the bolts and the nuts.
    • Tighten in the sequence shown in two stages.
    • Stage 1: Tighten to 10 N.m (8 lb-ft).
    • Stage 2: Tighten to 23 N.m (17 lb-ft).

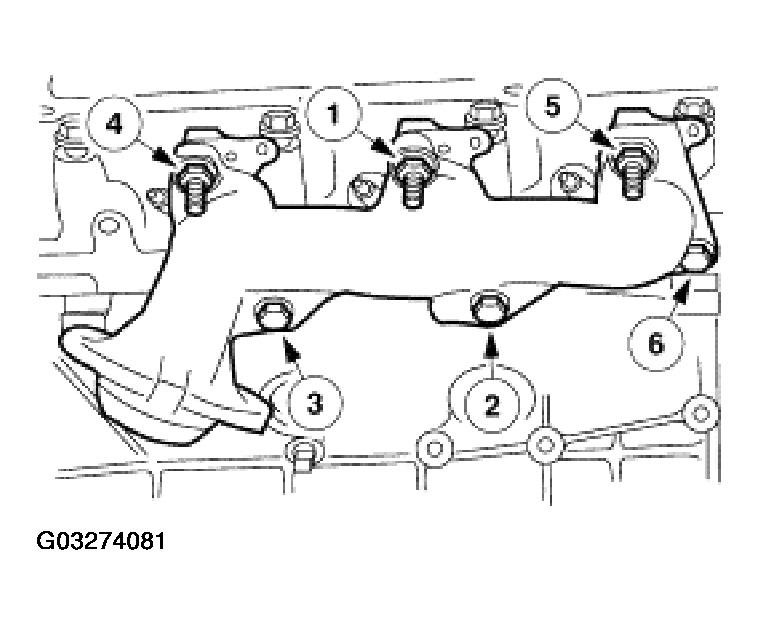

      Fig 1: RH Exhaust Manifold Tightening Sequence
      G03274081Courtesy of FORD MOTOR CO.
  3. Install the exhaust flange nuts.

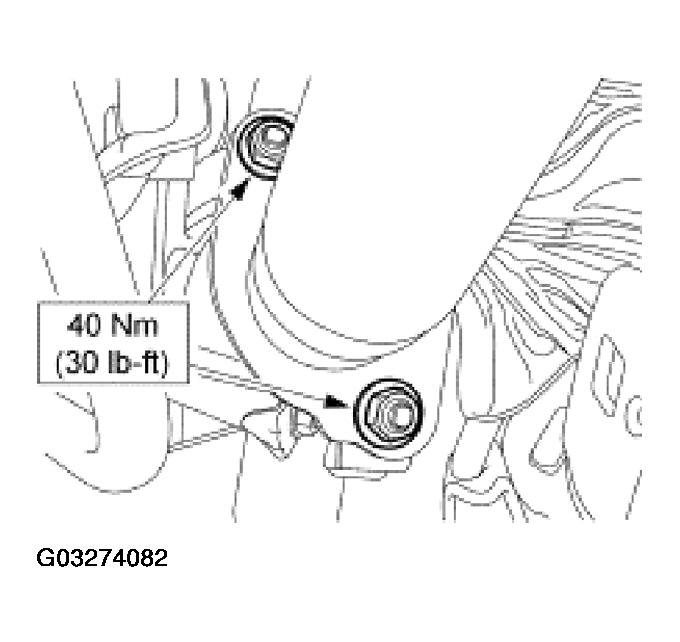

    Fig 2: Installing Exhaust Flange Nuts
    G03274082Courtesy of FORD MOTOR CO.
  4. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
