Exhaust Manifold LH: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the exhaust flange nuts.

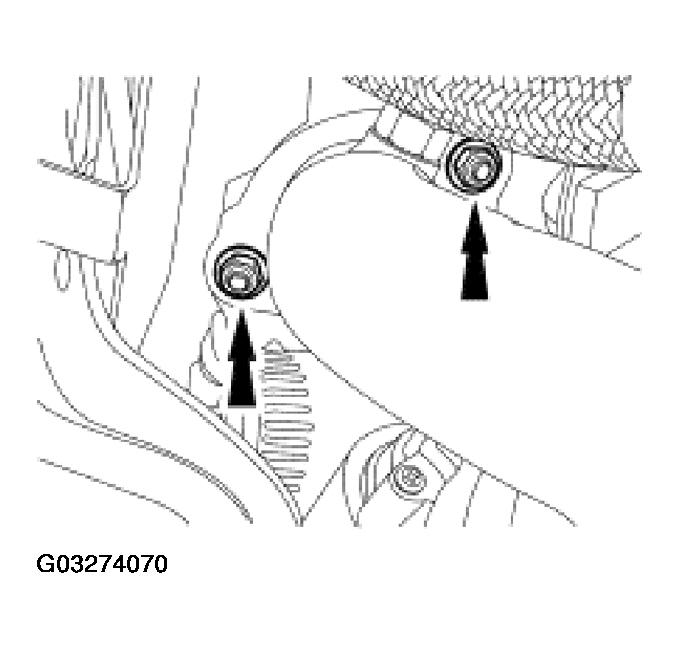

    Fig 1: Removing Exhaust Flange Nuts
    G03274070Courtesy of FORD MOTOR CO.
  4. Remove the nut and the oil level indicator and tube assembly.

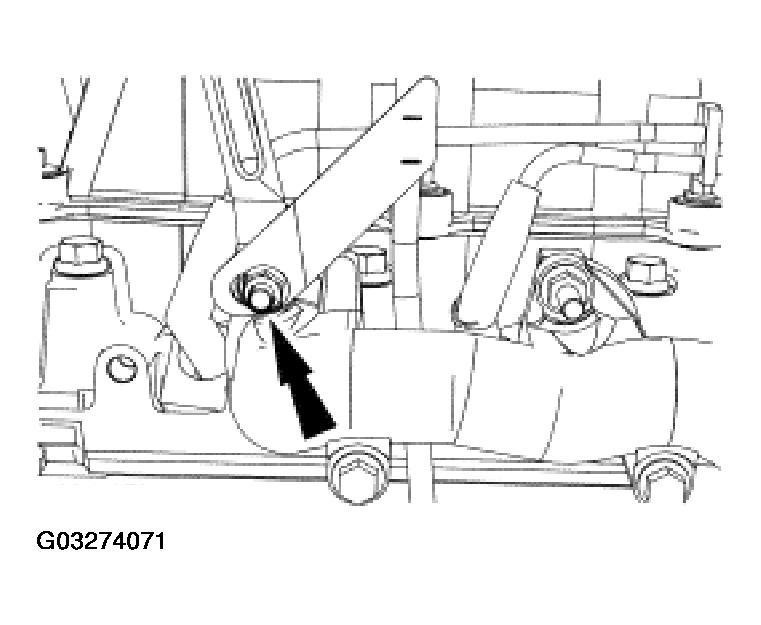

    Fig 2: Removing Nut And Oil Level Indicator And Tube Assembly
    G03274071Courtesy of FORD MOTOR CO.
  5. Remove the upper intake manifold support brace.

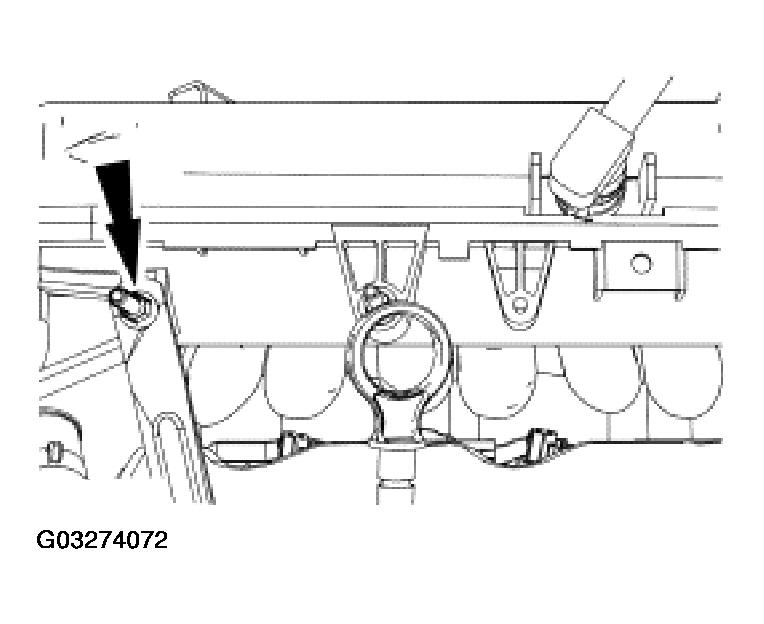

    Fig 3: Removing Upper Intake Manifold Support Brace
    G03274072Courtesy of FORD MOTOR CO.
  6. Remove the bolts, nuts and the exhaust manifold and gasket.

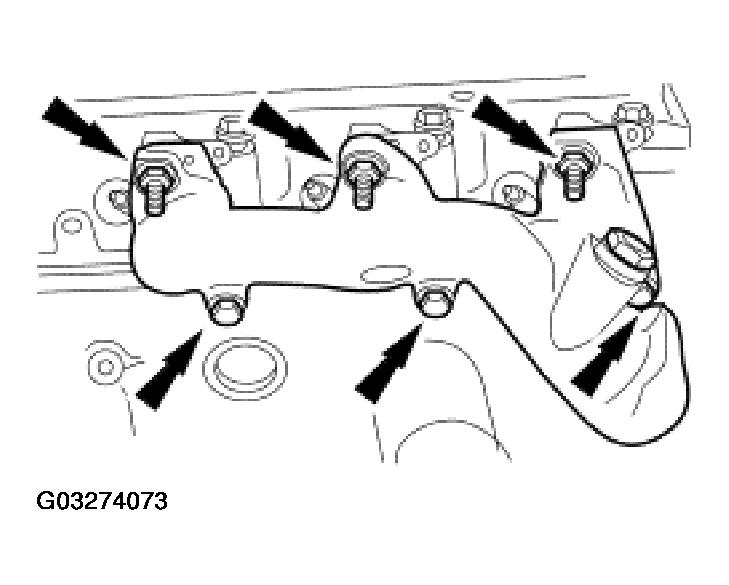

    Fig 4: Removing Bolts, Nuts And Exhaust Manifold And Gasket
    G03274073Courtesy of FORD MOTOR CO.
