Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust manifold gasket, exhaust manifold and the bolts and nuts.
- Tighten the nuts and the bolts in the sequence shown, in two stages:
- Stage 1: Tighten to 10 N.m (8 lb-ft).
- Stage 2: Tighten to 23 N.m (17 lb-ft).

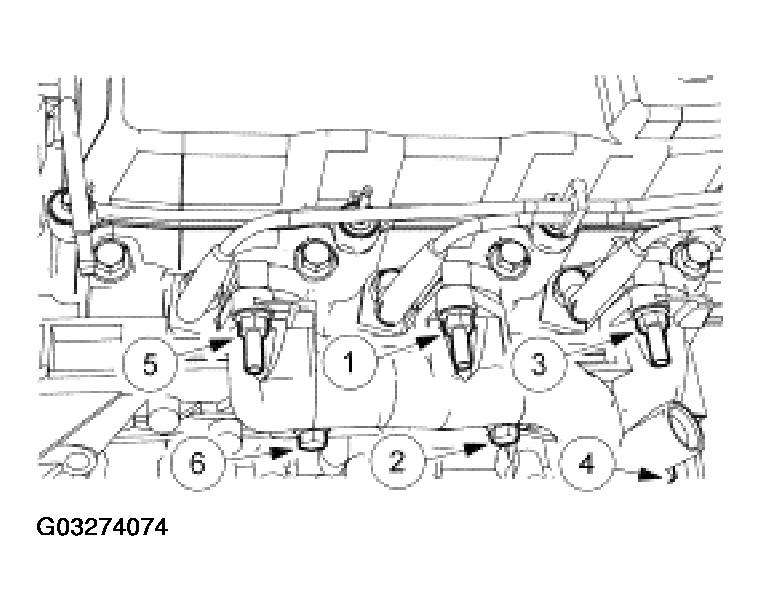

  Fig 1: LH Exhaust Manifold Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the upper intake manifold support brace.

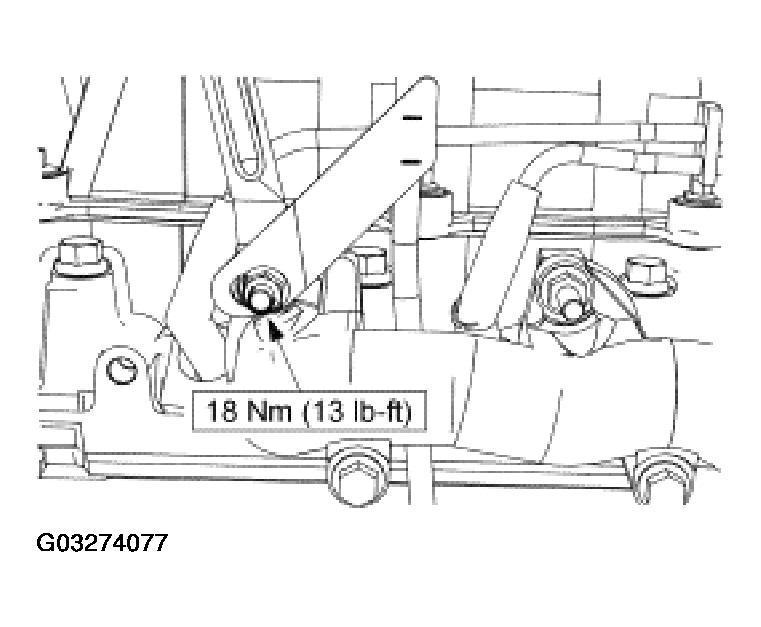

Fig 2: Installing Upper Intake Manifold Support Brace
Courtesy of FORD MOTOR CO.

NOTE: The end of the oil level indicator tube should be cleaned with metal parts cleaner before application of the sealant.

Install the oil level indicator and tube assembly.
- Coat the oil level indicator tube with silicone gasket and sealant.

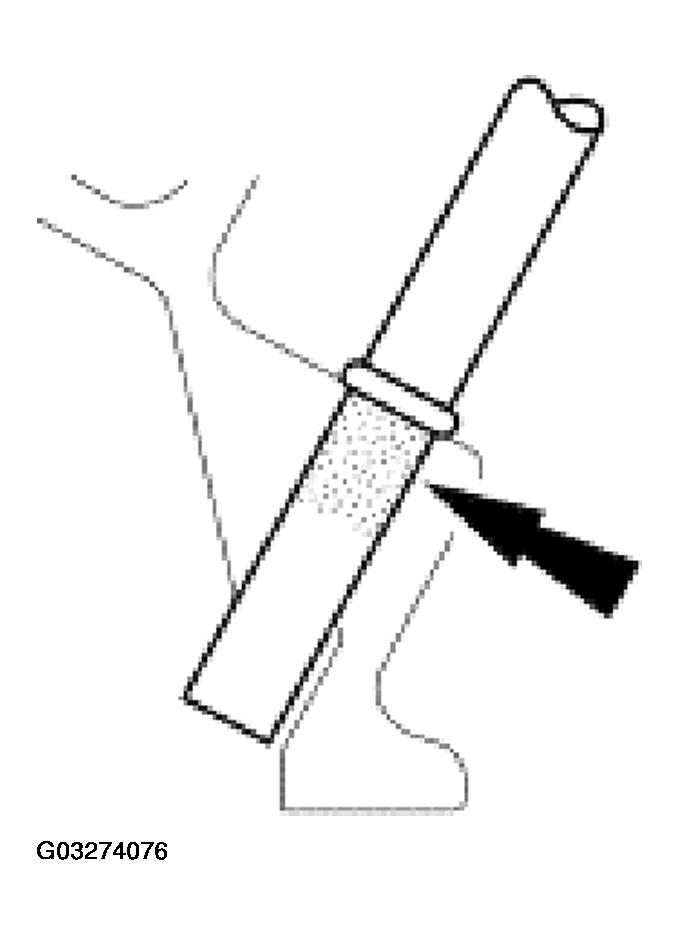

  Fig 3: Installing Oil Level Indicator And Tube Assembly
  Courtesy of FORD MOTOR CO.
Install the oil level indicator tube bracket nut.

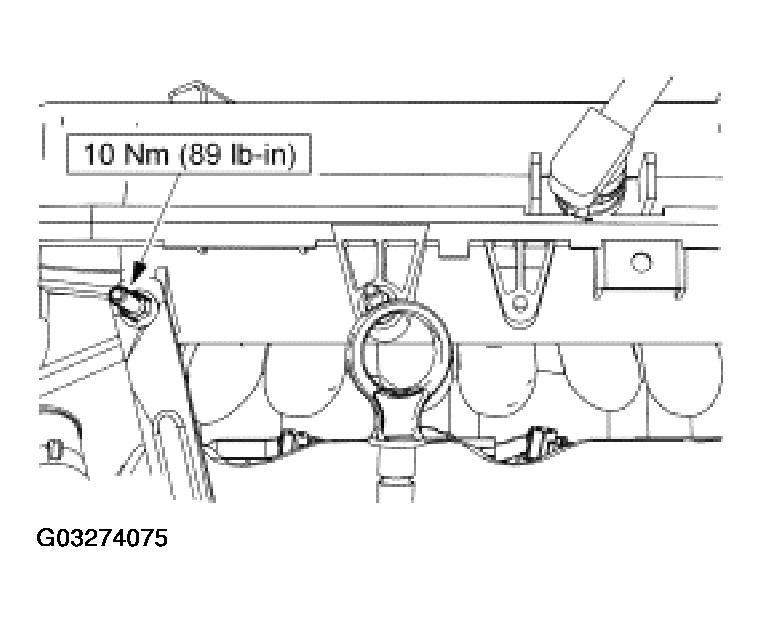

Fig 4: Installing Oil Level Indicator Tube Bracket Nut
Courtesy of FORD MOTOR CO.
Install the exhaust flange nuts.

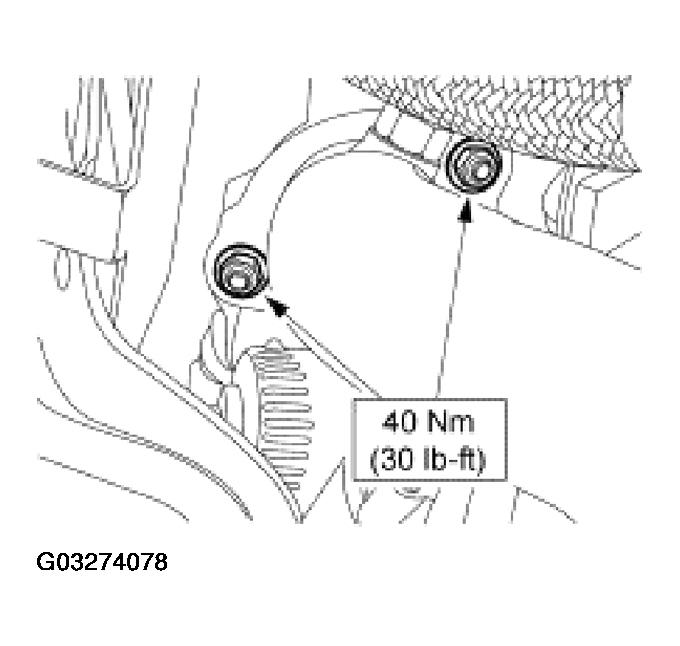

Fig 5: Installing Exhaust Flange Nuts
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
