Engine Support Insulator - LH: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

ALL VEHICLES

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the hood.
Remove the fan. For additional information, refer to ENGINE COOLING .
Attach the Engine Lifting Eyes.
Remove the engine support insulator nuts.

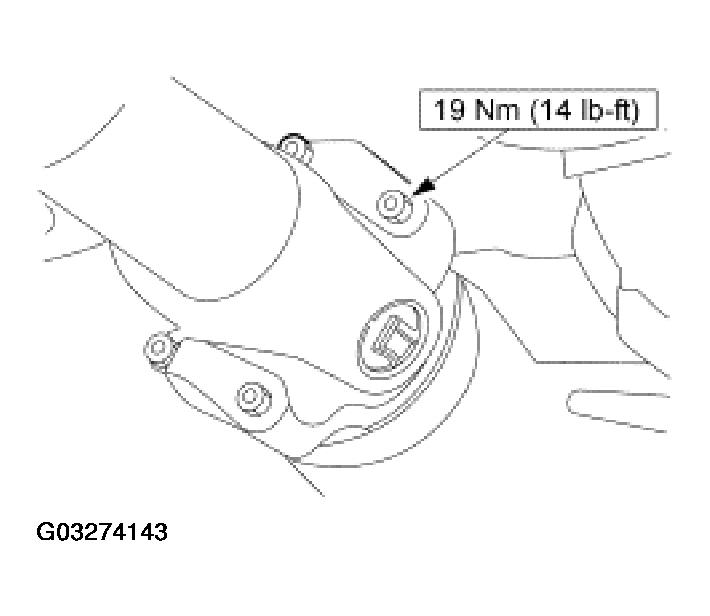

Fig 1: Removing Engine Support Insulator Nuts
Courtesy of FORD MOTOR CO.
Raise the engine and support with a Three-Bar Engine Support.

4X2 VEHICLES

Remove the engine support insulator nut.

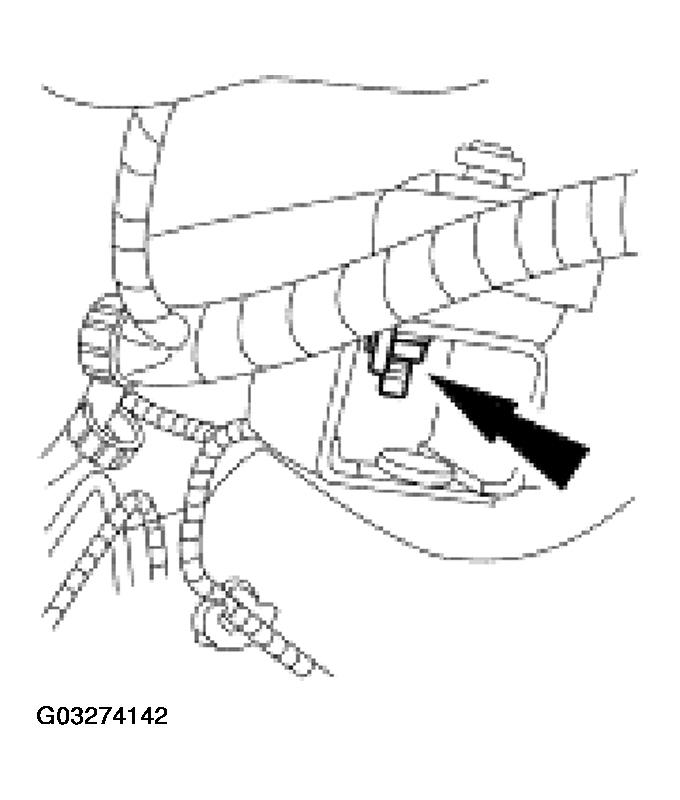

Fig 2: Removing Engine Support Insulator Nut
Courtesy of FORD MOTOR CO.

4X4 VEHICLES

CAUTION: Tape the U-joint bearing caps to prevent them from falling off the U-joints.

CAUTION: Index-mark the front axle pinion flange to the front driveshaft.

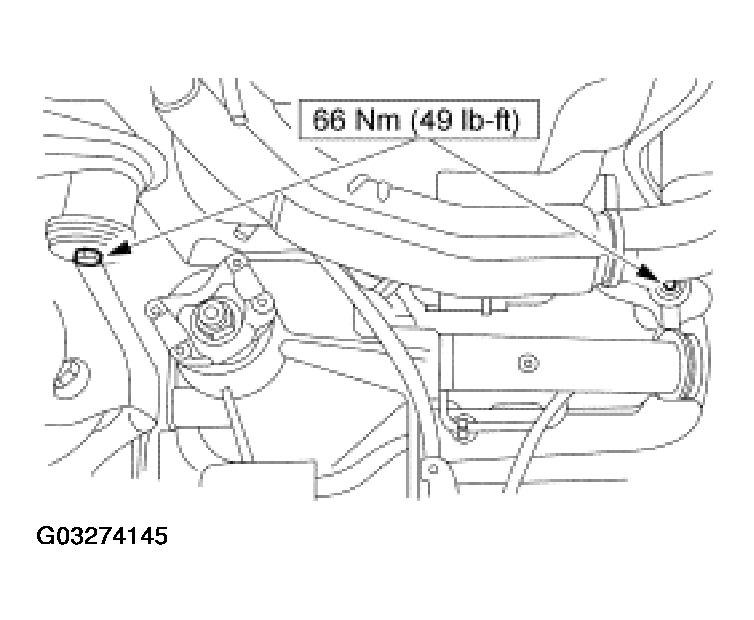

Fig 3: Removing Driveshaft Bolts And Straps

Courtesy of FORD MOTOR CO.

Remove and discard the bolts and straps. Secure the driveshaft out of the way.
Secure the front axle housing to a suitable jack.

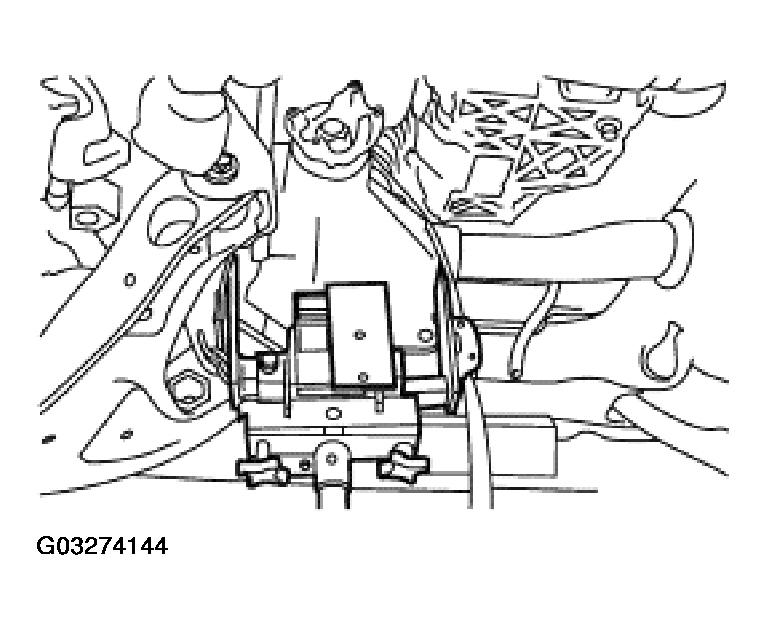

Fig 4: Securing Front Axle Housing To A Suitable Jack
Courtesy of FORD MOTOR CO.
Remove the three axle housing mounting bolts and lower the axle housing approximately 50 mm (2 inches).

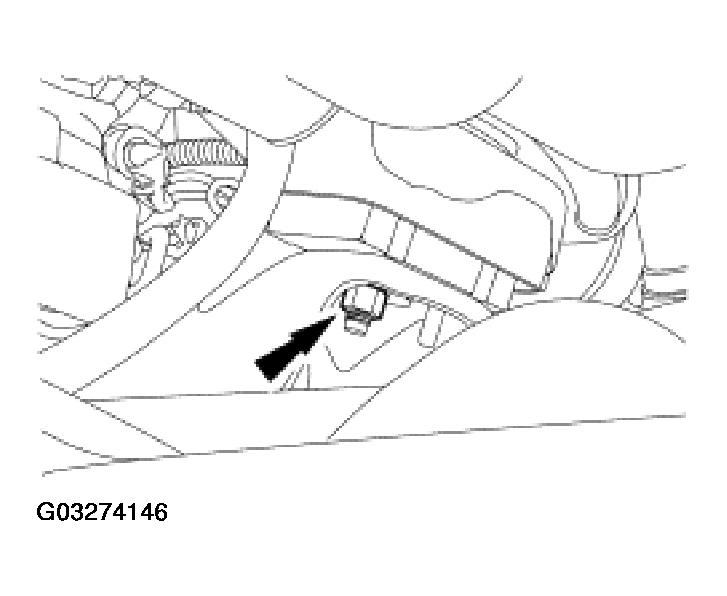

Fig 5: Lowering Axle Housing
Courtesy of FORD MOTOR CO.
Remove the engine support insulator nut.

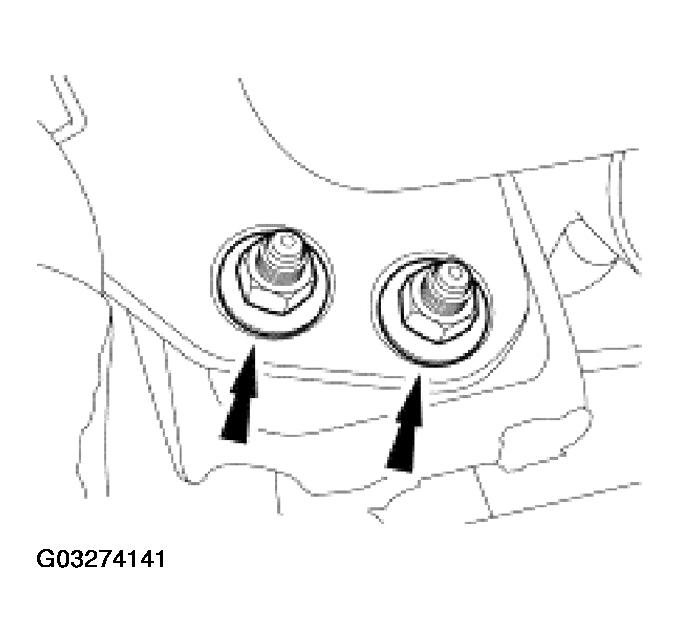

Fig 6: Removing Engine Support Insulator Nut
Courtesy of FORD MOTOR CO.

ALL VEHICLES

Remove the engine support insulator.
