Engine Front Cover: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Drain the engine coolant. For additional information, refer to ENGINE COOLING .
Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Remove the fan and shroud assembly. For additional information, refer to ENGINE COOLING .
Remove the bolts and the coolant pump pulley.

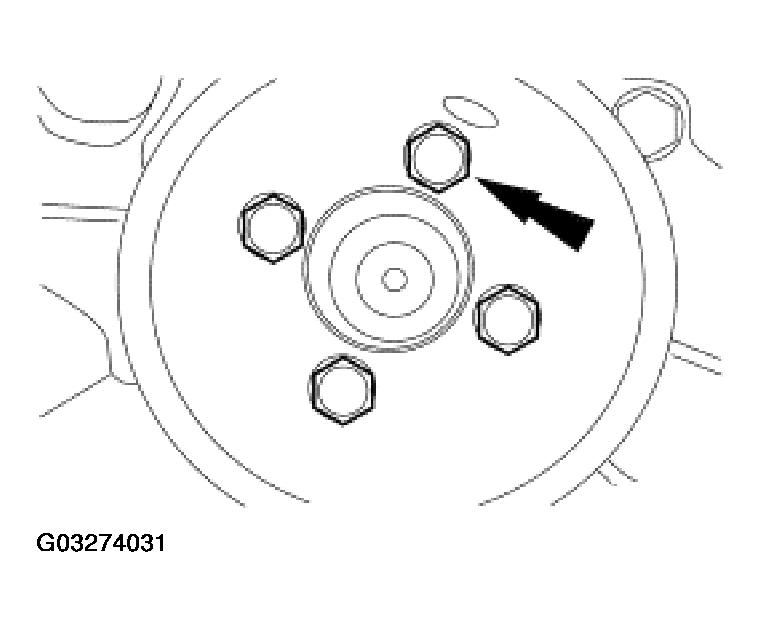

Fig 1: Removing Coolant Pump Pulley
Courtesy of FORD MOTOR CO.
Remove the nuts and detach the fuel tube bracket and the wiring harness bracket.

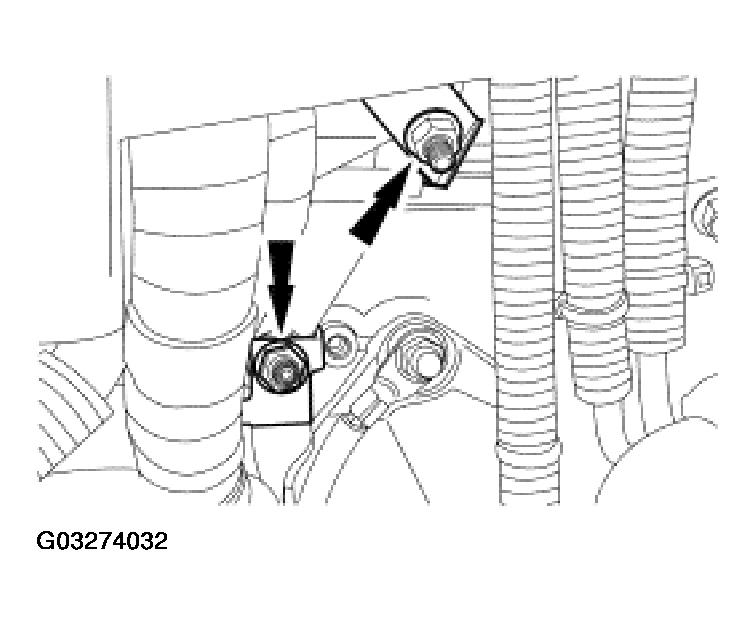

Fig 2: Removing Fuel Tube And Wiring Harness Brackets
Courtesy of FORD MOTOR CO.
Remove the stud bolts from the A/C compressor mounting bracket.

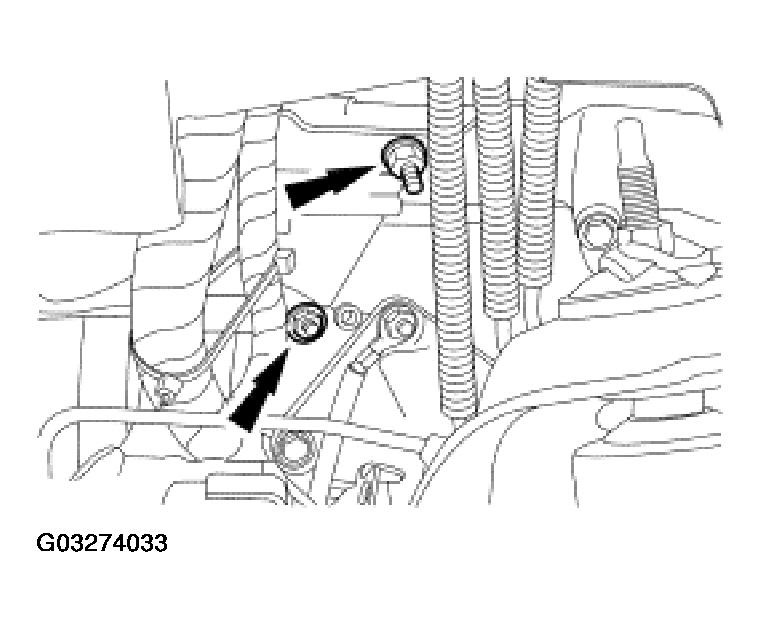

Fig 3: Removing Stud bolts From A/C Compressor Mounting Bracket
Courtesy of FORD MOTOR CO.
Remove the bolts and position the power steering bracket and compressor aside.

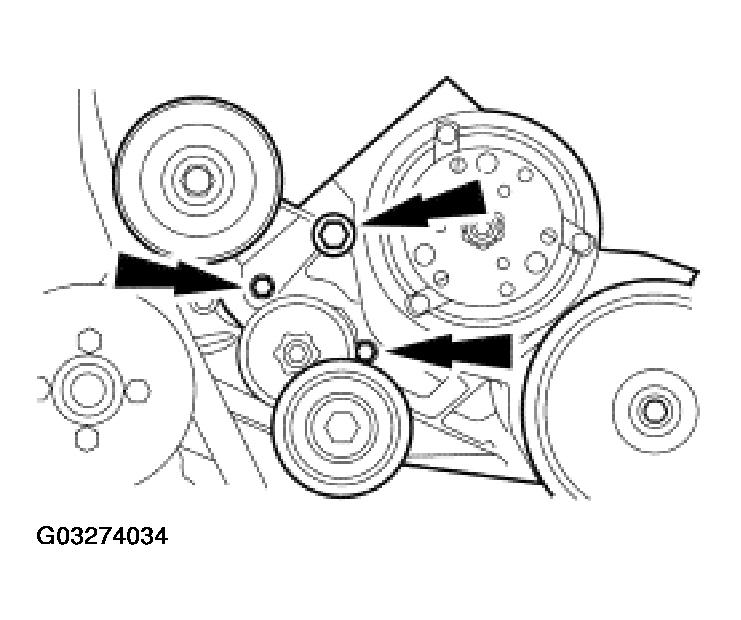

Fig 4: Removing Bolts And Position Power Steering Bracket And Compressor Aside
Courtesy of FORD MOTOR CO.
Disconnect the lower radiator hose at the water pump outlet.
Remove the crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT OIL SEAL .
Remove the oil pan. For additional information, refer to OIL PAN - 4X2 .
Remove the crankshaft position (CKP) sensor.

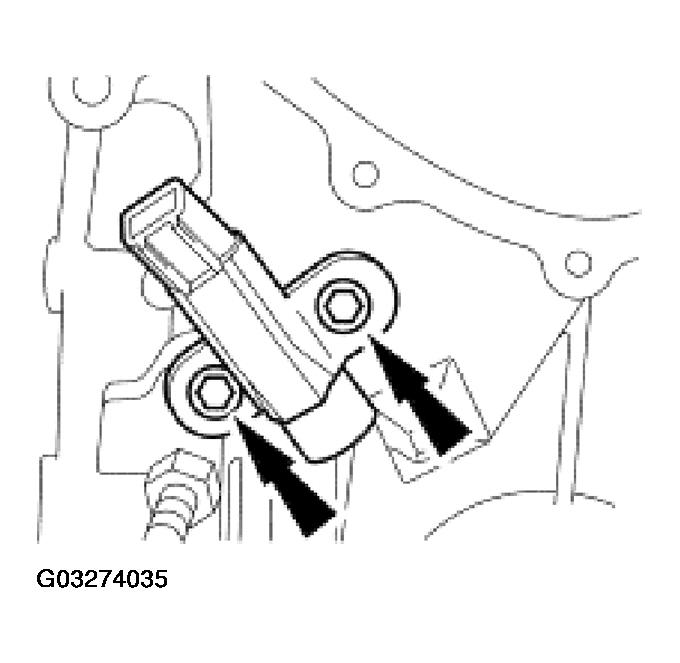

Fig 5: Removing Crankshaft Position (CKP) Sensor
Courtesy of FORD MOTOR CO.
Remove the engine front cover and the coolant pump as an assembly.
- Remove the bolts.

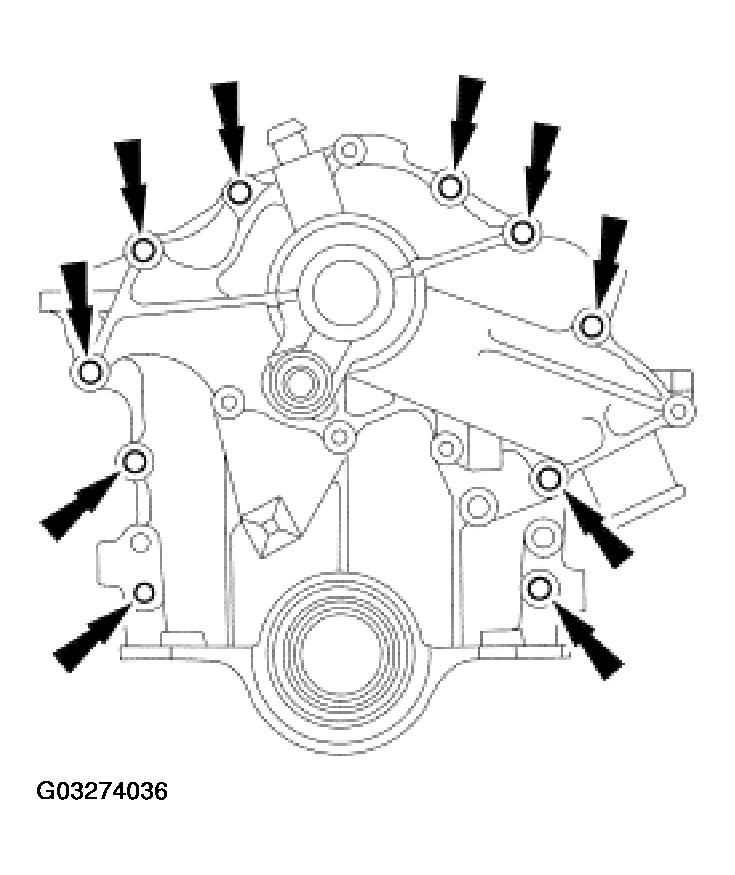

  Fig 6: Removing Engine Front Cover And Coolant Pump Assembly
  Courtesy of FORD MOTOR CO.
Remove and discard the front cover gasket.

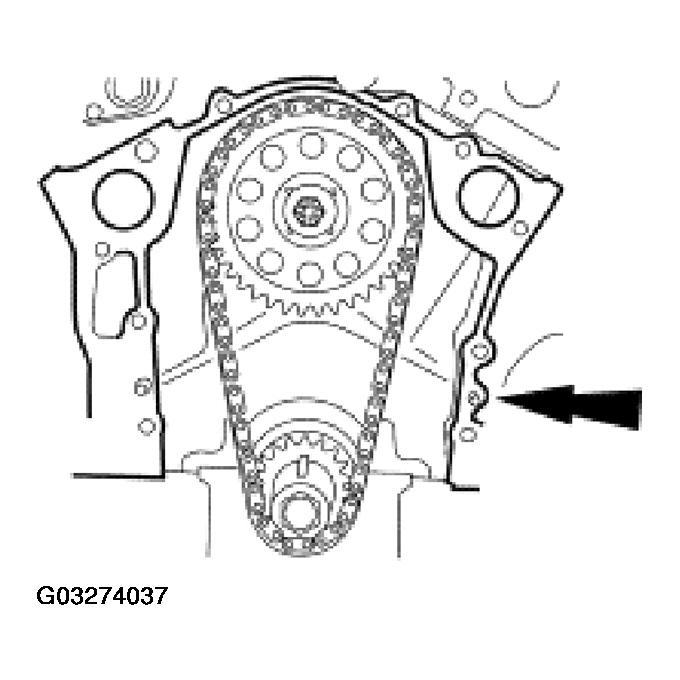

Fig 7: Removing Front Cover Gasket
Courtesy of FORD MOTOR CO.
