Engine Front Cover: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Clean all sealing surfaces and position a new front cover gasket.

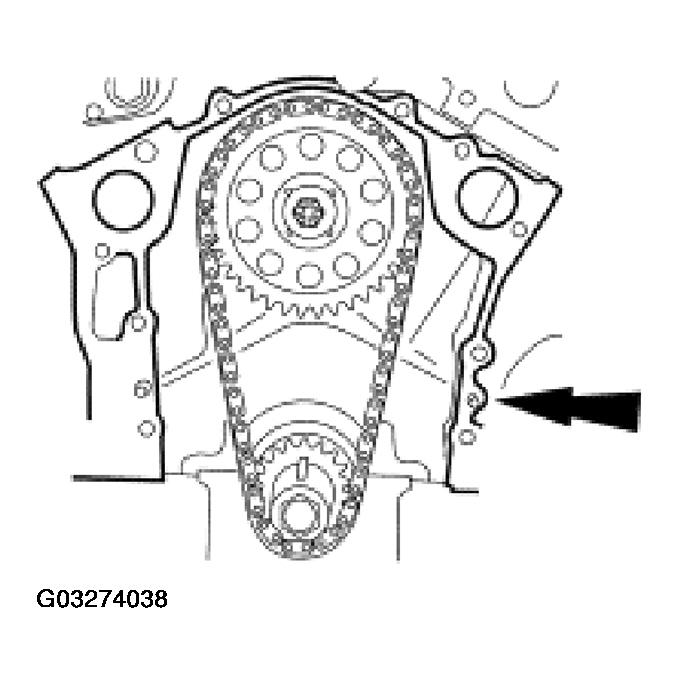

Fig 1: Positioning New Front Cover Gasket
Courtesy of FORD MOTOR CO.
Position the engine front cover.

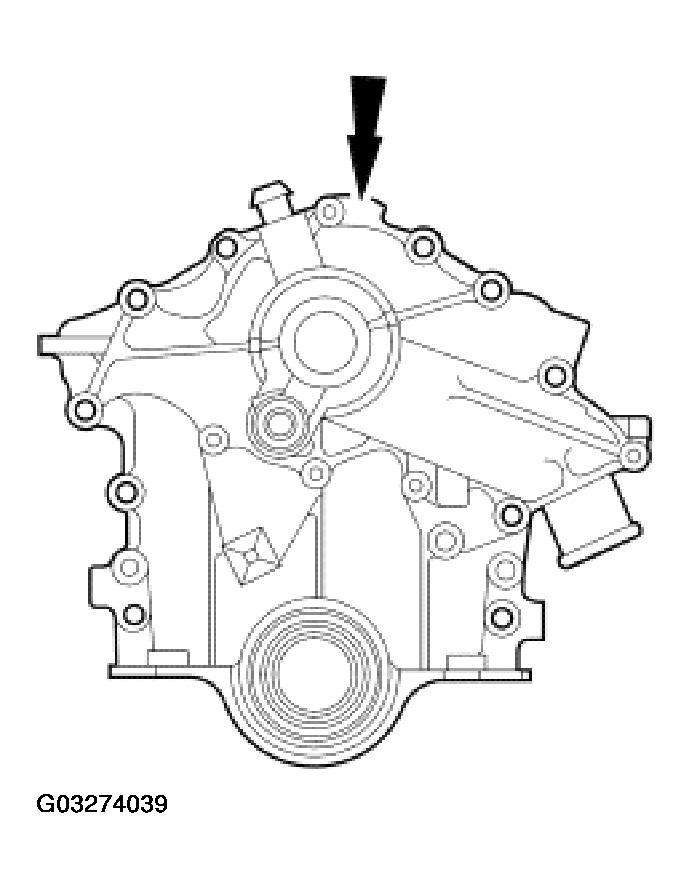

Fig 2: Positioning Engine Front Cover
Courtesy of FORD MOTOR CO.
Apply pipe sealant with Teflon® to the bolts to be installed in the locations shown.

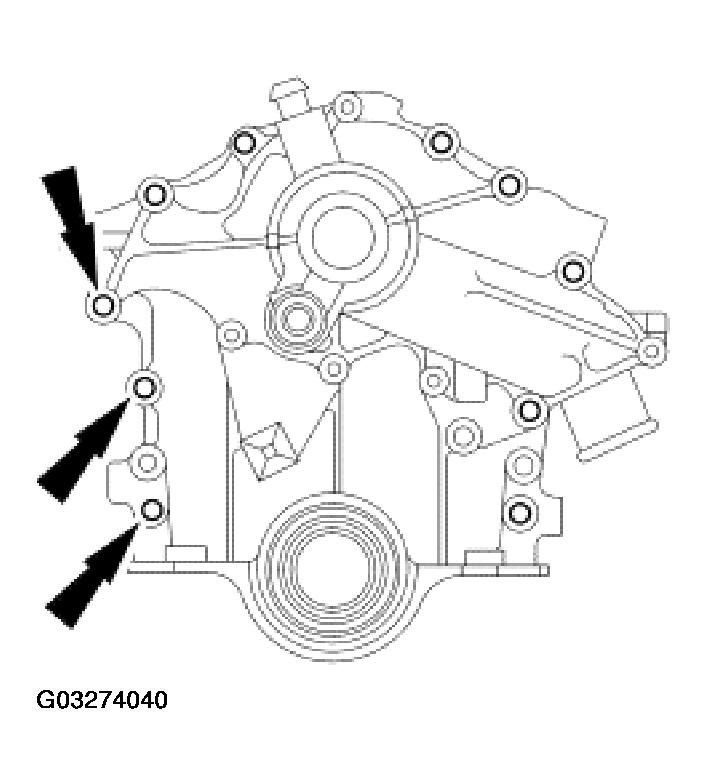

Fig 3: Identifying Bolt Locations Requiring Pipe Sealant
Courtesy of FORD MOTOR CO.
Install the engine front cover bolts.

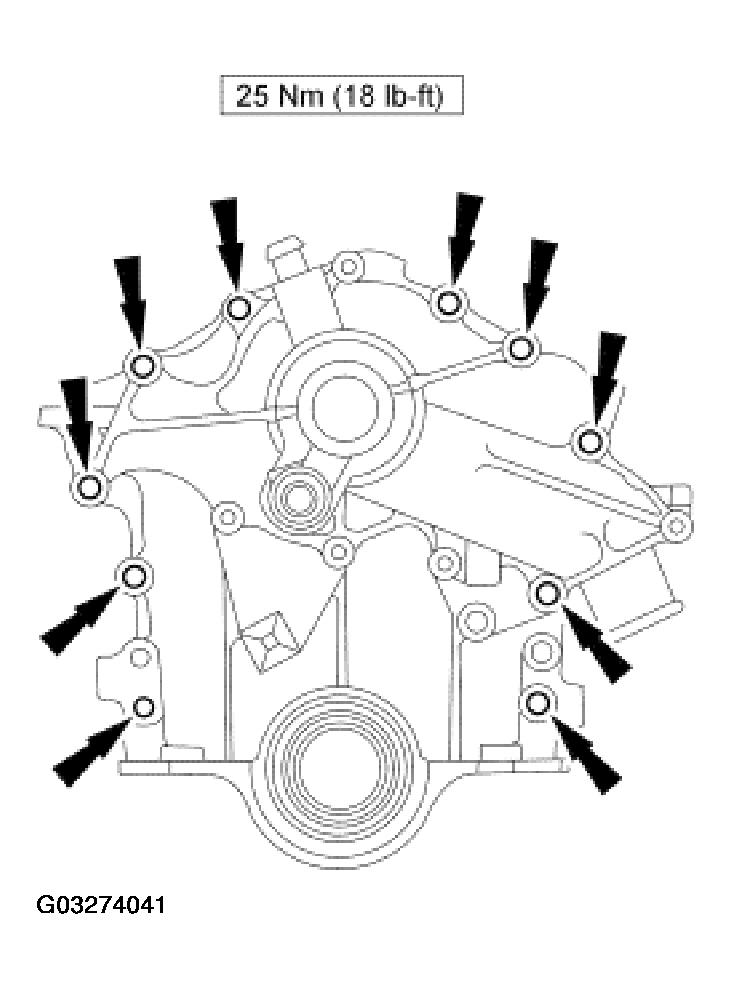

Fig 4: Installing Engine Front Cover Bolts
Courtesy of FORD MOTOR CO.
Install the crankshaft position sensor.

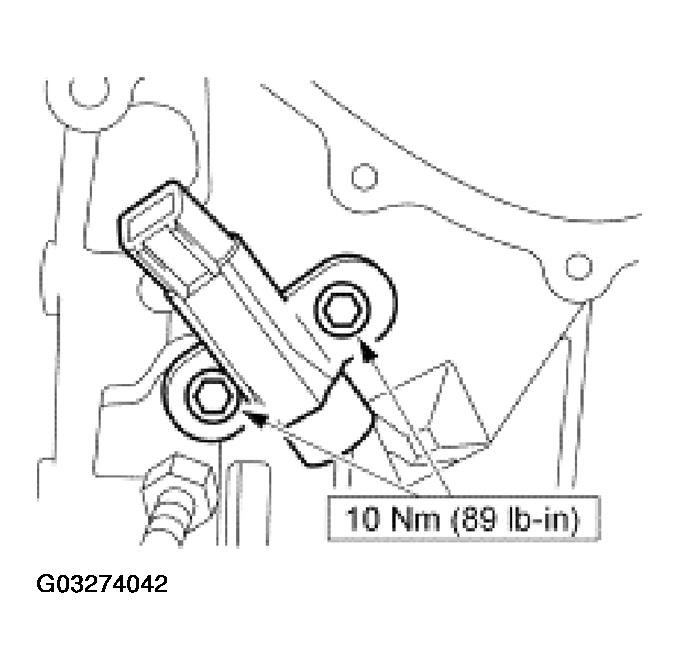

Fig 5: Installing Crankshaft Position Sensor
Courtesy of FORD MOTOR CO.
Install the oil pan. For additional information, refer to OIL PAN - 4X2 .
Install the crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT OIL SEAL .
Connect the lower radiator hose to the water pump outlet.

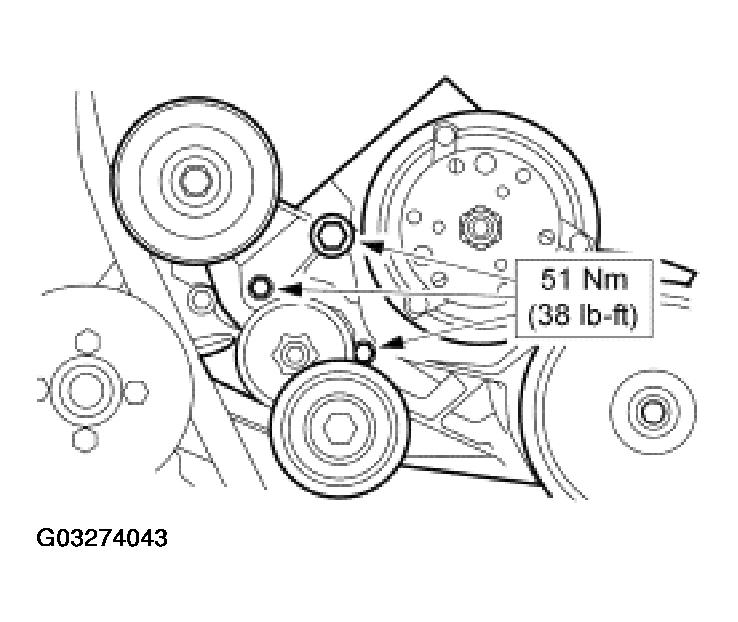

Position back the A/C compressor and power steering bracket.

Fig 6: Positioning Back A/C Compressor And Power Steering Bracket
Courtesy of FORD MOTOR CO.
Install the stud bolts to the A/C compressor mounting bracket.

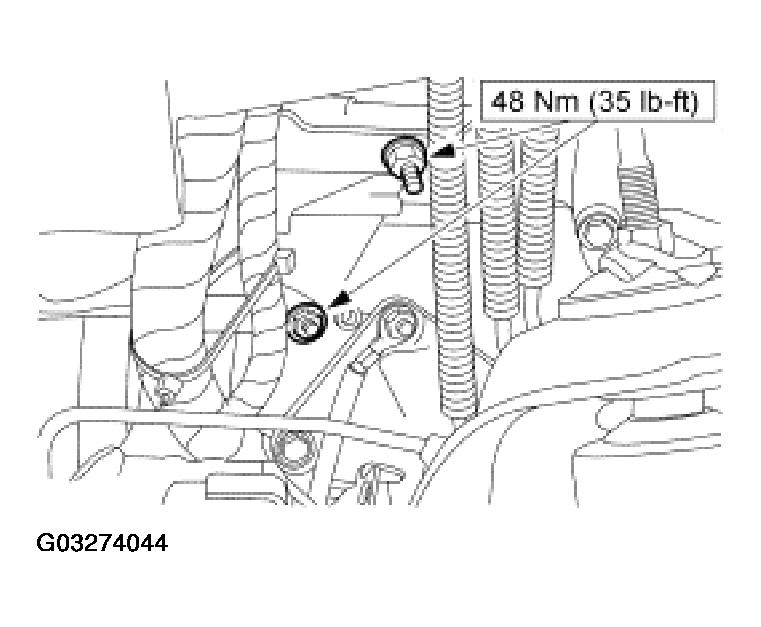

Fig 7: Installing Stud bolts To A/C Compressor Mounting Bracket
Courtesy of FORD MOTOR CO.
Position the wiring harness bracket, the fuel tube bracket, and install the nuts.

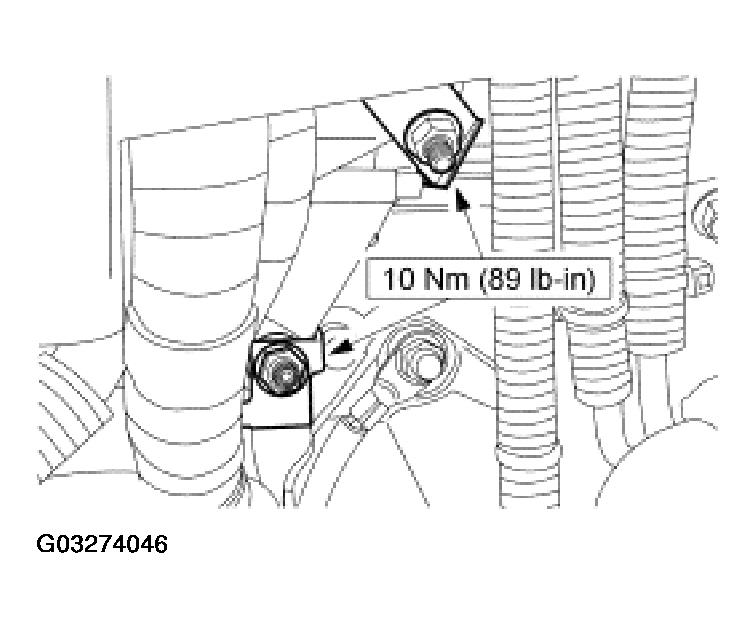

Fig 8: Positioning Wiring Harness Bracket, Fuel Tube Bracket
Courtesy of FORD MOTOR CO.
Install the coolant pump pulley and the bolts.

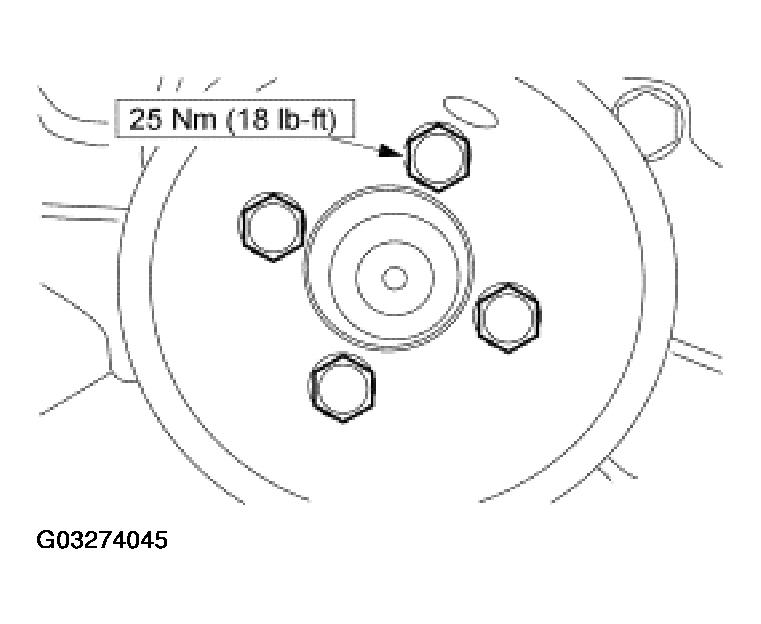

Fig 9: Installing Coolant Pump Pulley
Courtesy of FORD MOTOR CO.
Install the fan and shroud assembly. For additional information, refer to ENGINE COOLING .
Install the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
