Cylinder Head: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Remove the A/C compressor. For additional information, refer to AIR CONDITIONING .
Remove the generator (GEN). For additional information, refer to GENERATORS & REGULATORS .
Remove the power steering pump. For additional information, refer to POWER STEERING .
Remove the generator mounting bracket.

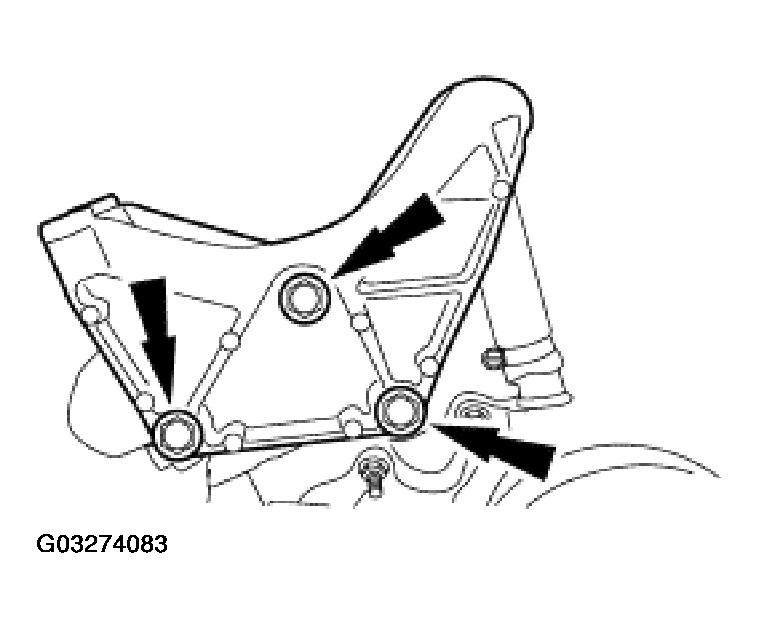

Fig 1: Removing Generator Mounting Bracket
Courtesy of FORD MOTOR CO.
Remove the rocker arms and the push rods.

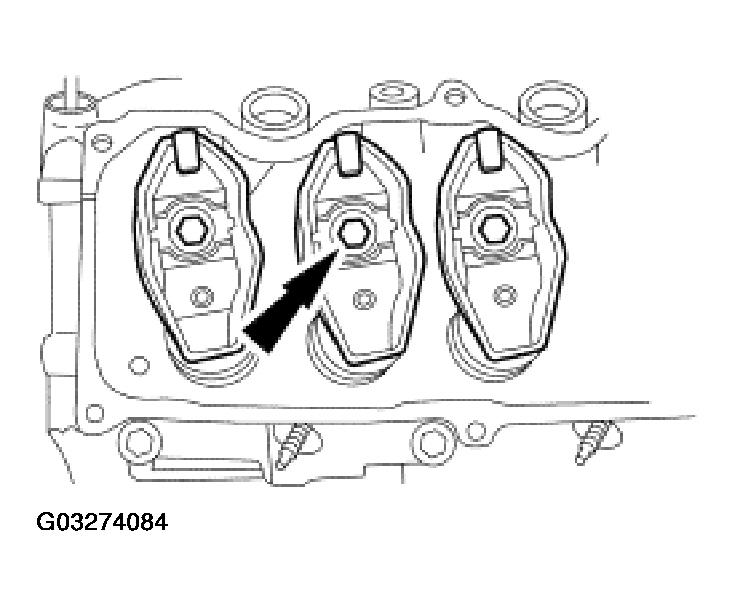

Fig 2: Removing Rocker Arms And Push Rods
Courtesy of FORD MOTOR CO.
Remove the nuts and detach the fuel tube bracket and the wiring harness bracket.

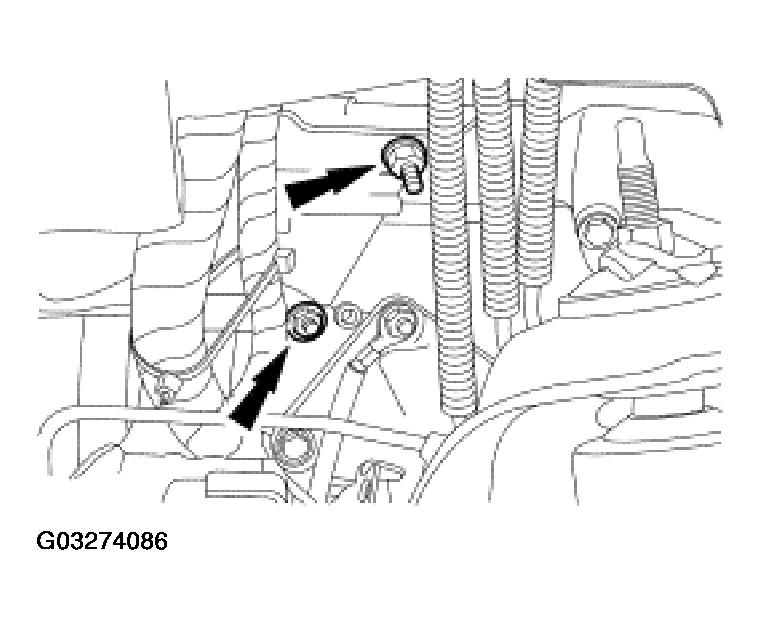

Fig 3: Removing Fuel Tube Bracket And Wiring Harness Bracket
Courtesy of FORD MOTOR CO.
Remove the two stud bolts from the rear of the A/C compressor mounting bracket.

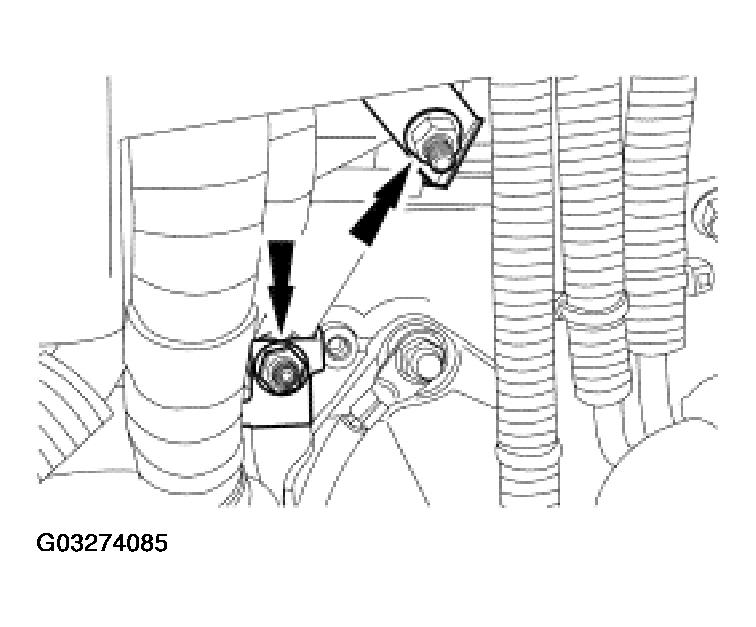

Fig 4: Removing Stud Bolts From Rear Of A/C Compressor Mounting Bracket
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the front of the A/C compressor mounting bracket.

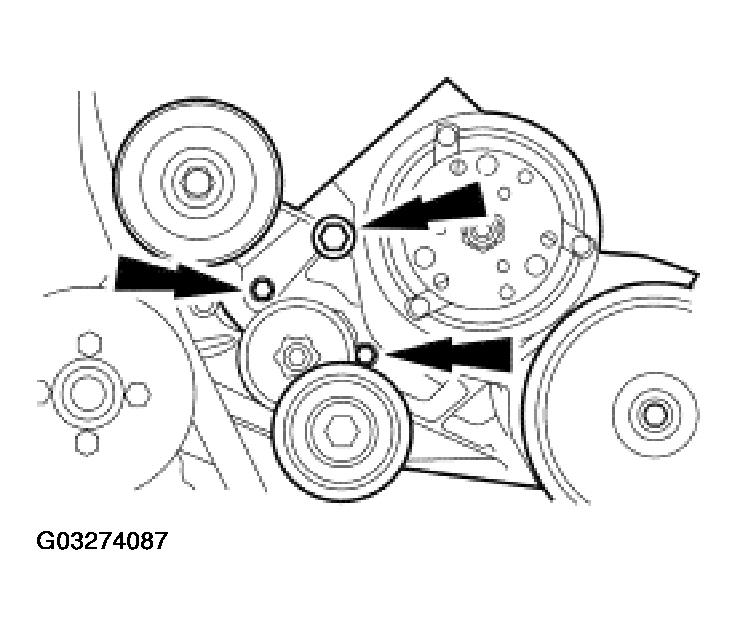

Fig 5: Removing Front Of A/C Compressor Mounting Bracket
Courtesy of FORD MOTOR CO.
Remove the exhaust manifolds. For additional information, refer to EXHAUST MANIFOLD RH .
Remove and discard the eight cylinder head bolts.

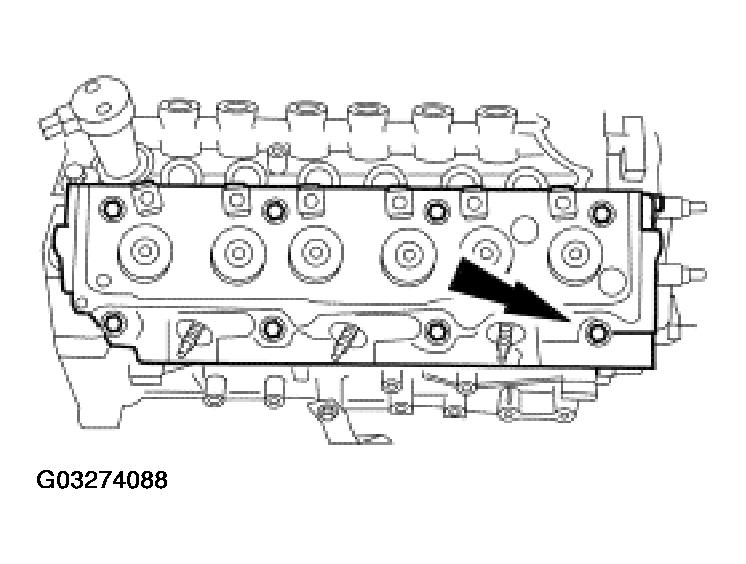

Fig 6: Removing Cylinder Head Bolts
Courtesy of FORD MOTOR CO.
Remove the cylinder heads.

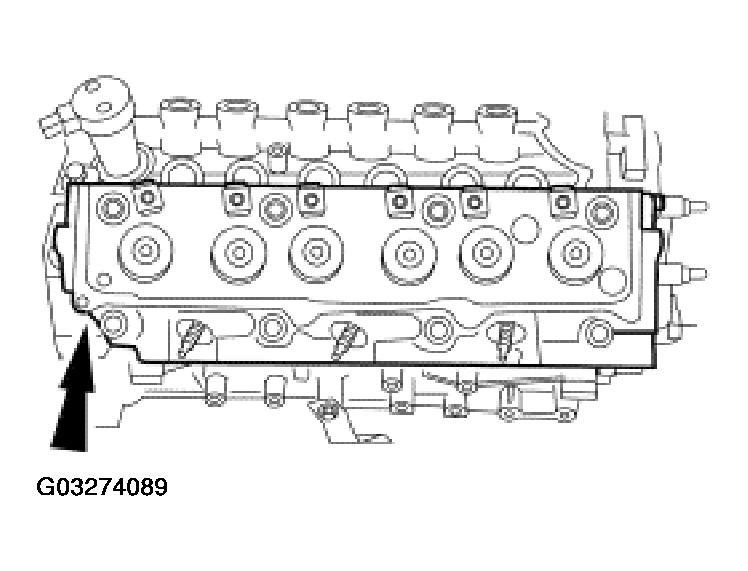

Fig 7: Removing Cylinder Heads
Courtesy of FORD MOTOR CO.
Remove and discard the cylinder head gaskets.

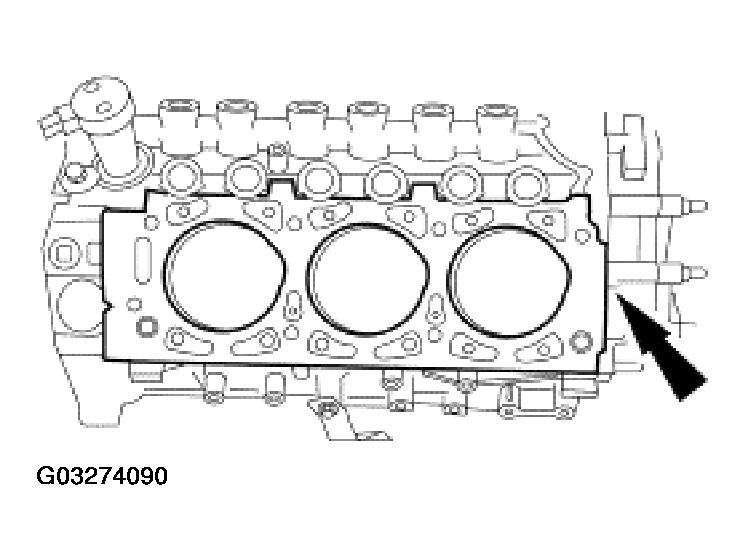

Fig 8: Removing Cylinder Head Gaskets
Courtesy of FORD MOTOR CO.
