Cylinder Head: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all the sealing surfaces.

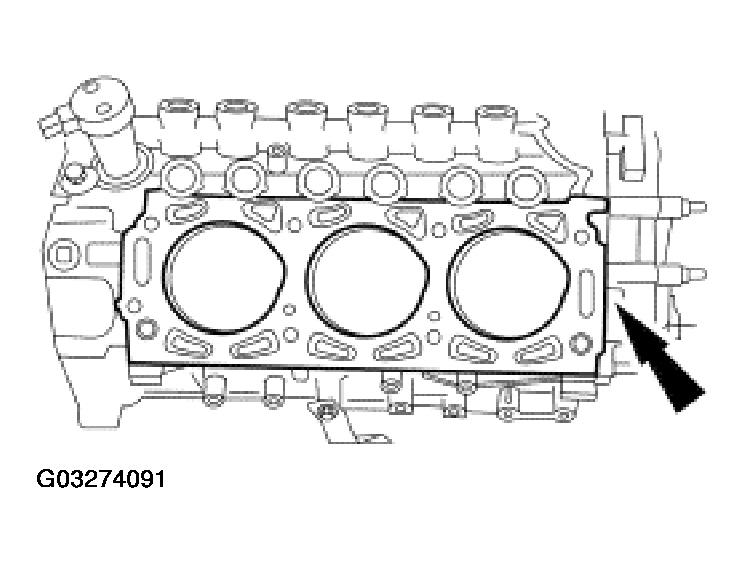

    Fig 1: Cleaning All Sealing Surfaces
    G03274091Courtesy of FORD MOTOR CO.
  2. Check the cylinder head for flatness. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
    3. NOTE: The "V" notch in the head gasket faces the front of the engine.

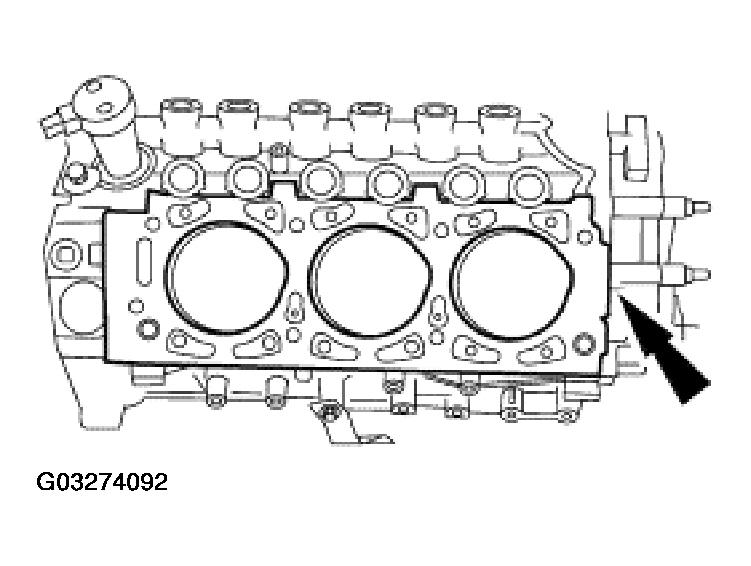

    Fig 2: Installing New Cylinder Head Gaskets
    G03274092Courtesy of FORD MOTOR CO.
  3. Install new cylinder head gaskets.
  4. Install the cylinder heads.

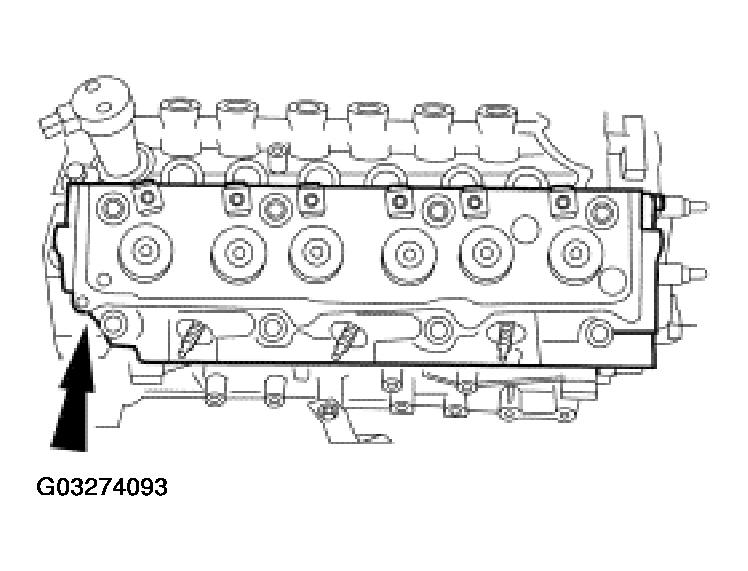

    Fig 3: Installing Cylinder Heads
    G03274093Courtesy of FORD MOTOR CO.
  5. Install the bolts.
    • Tighten the bolts in five stages in the sequence shown.
    • Stage 1: Tighten to 50 N.m (37 lb-ft).
    • Stage 2: Loosen the bolts one full turn.
    • Stage 3: Tighten to 30 N.m (22 lb-ft).
    • Stage 4: Tighten the bolts 90 degrees.
    • Stage 5: Tighten the bolts an additional 90 degrees.

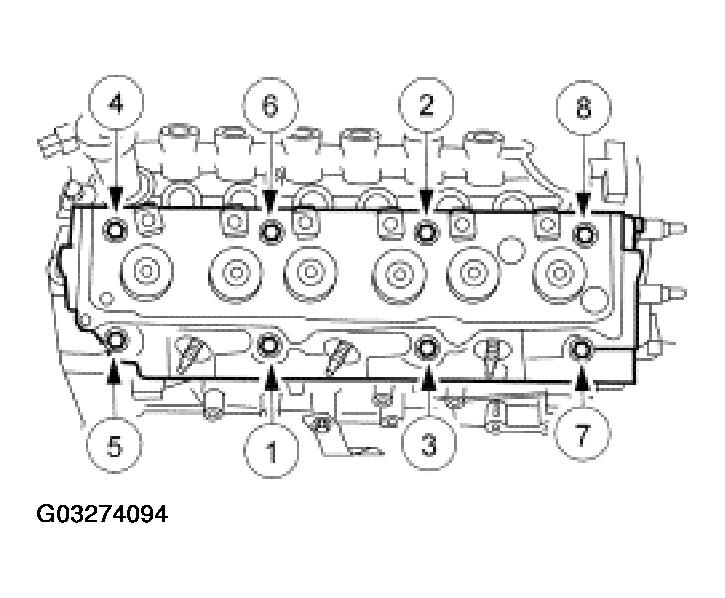

      Fig 4: Cylinder Head Bolts Tightening Sequence
      G03274094Courtesy of FORD MOTOR CO.
  6. Install the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
  7. Install the exhaust manifolds. For additional information, refer to EXHAUST MANIFOLD RH .
  8. Install the A/C compressor mounting bracket.

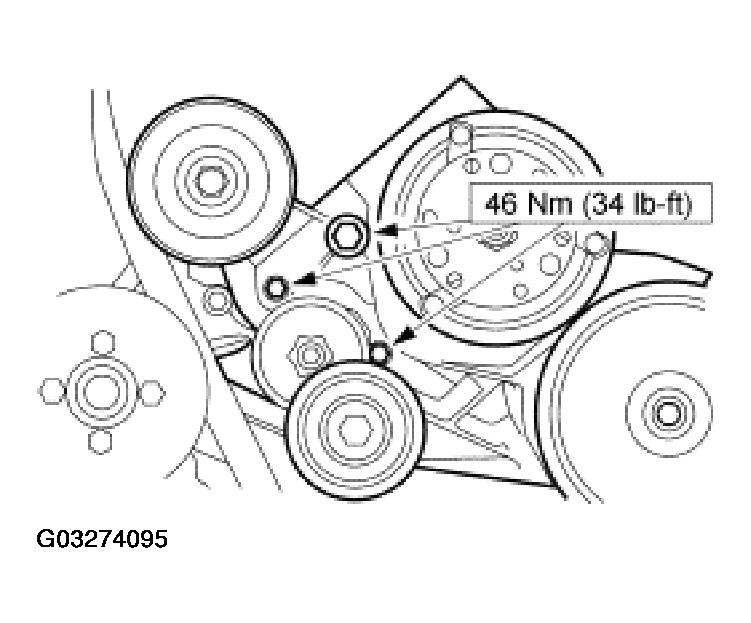

    Fig 5: Installing A/C Compressor Mounting Bracket
    G03274095Courtesy of FORD MOTOR CO.
  9. Install the stud bolts to the A/C compressor mounting bracket.

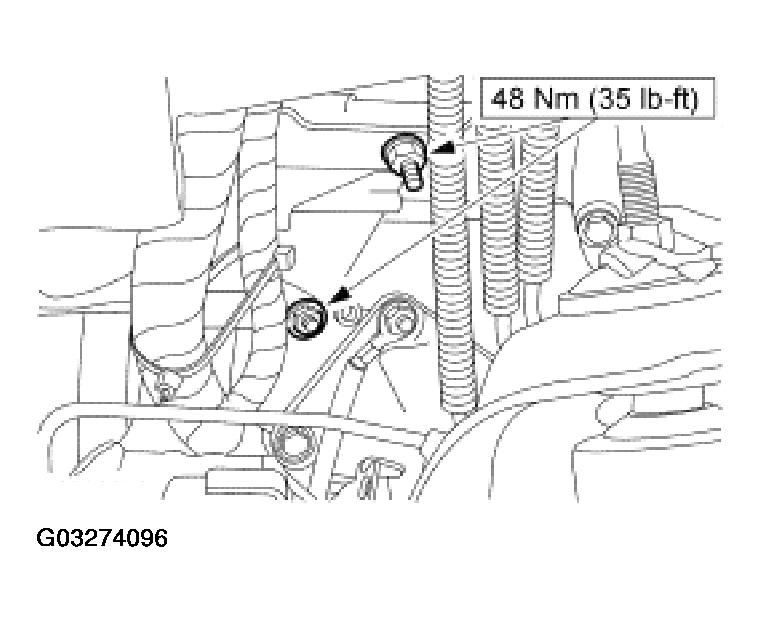

    Fig 6: Installing Stud Bolts To A/C Compressor Mounting Bracket
    G03274096Courtesy of FORD MOTOR CO.
  10. Position the wiring harness bracket and the fuel tube bracket and install the nuts.

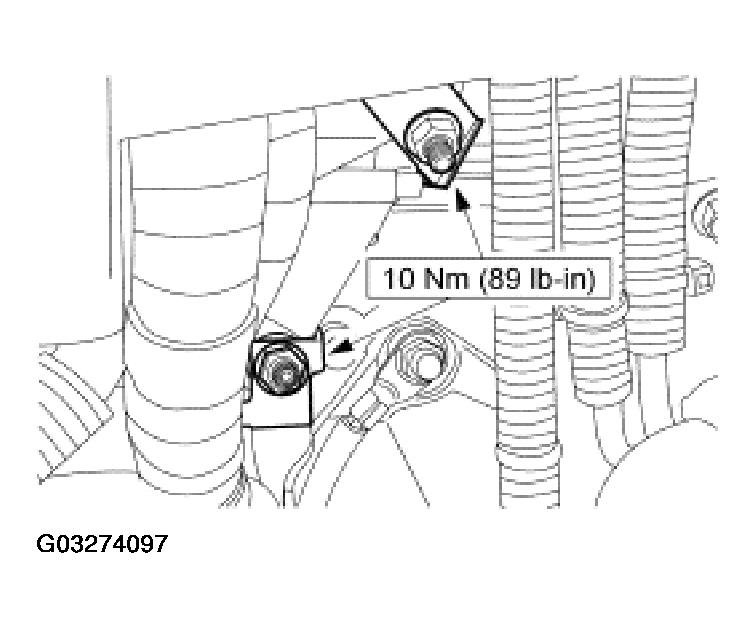

    Fig 7: Positioning Wiring Harness Bracket And Fuel Tube Bracket
    G03274097Courtesy of FORD MOTOR CO.
  11. Install the push rods and the rocker arms.

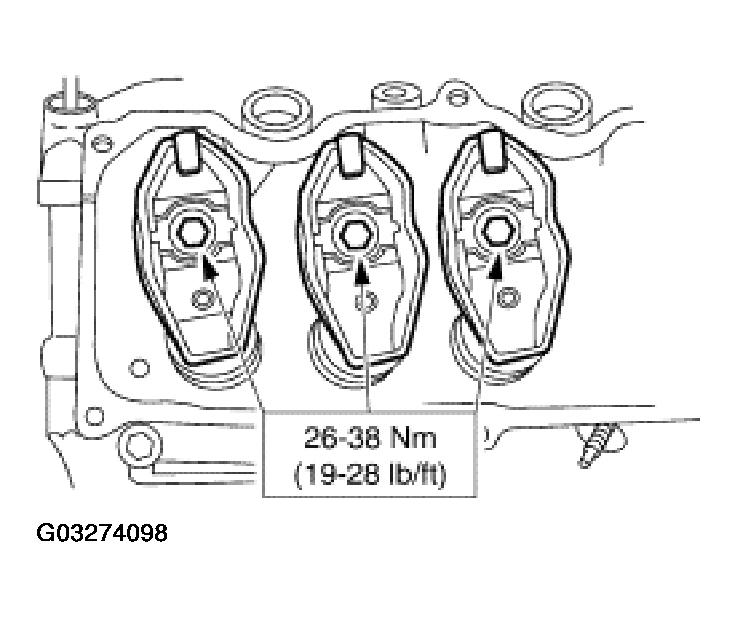

    Fig 8: Installing Push Rods And Rocker Arms
    G03274098Courtesy of FORD MOTOR CO.
  12. Install the generator mounting bracket.
    • Install the bolts.

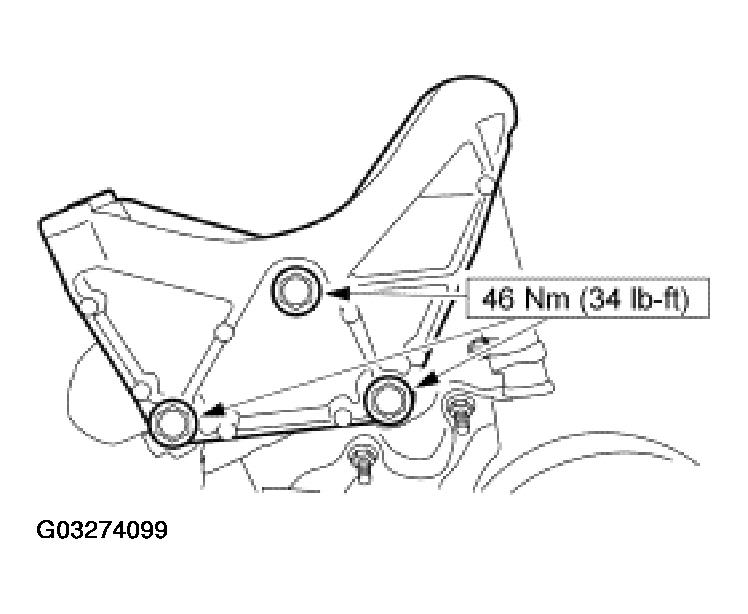

      Fig 9: Installing Bolts
      G03274099Courtesy of FORD MOTOR CO.
  13. Install the power steering pump. For additional information, refer to POWER STEERING .
  14. Install the generator. For additional information, refer to GENERATORS & REGULATORS .
  15. Install the A/C compressor. For additional information, refer to AIR CONDITIONING .
  16. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  17. Drain the engine oil.
  18. Fill the engine with clean engine oil.
  19. Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
  20. Fill the power steering system. For additional information, refer to POWER STEERING .
  21. Charge the A/C system. For additional information, refer to AIR CONDITIONING .
