Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Apply a drop of silicone gasket and sealant, securing crankshaft key in position.

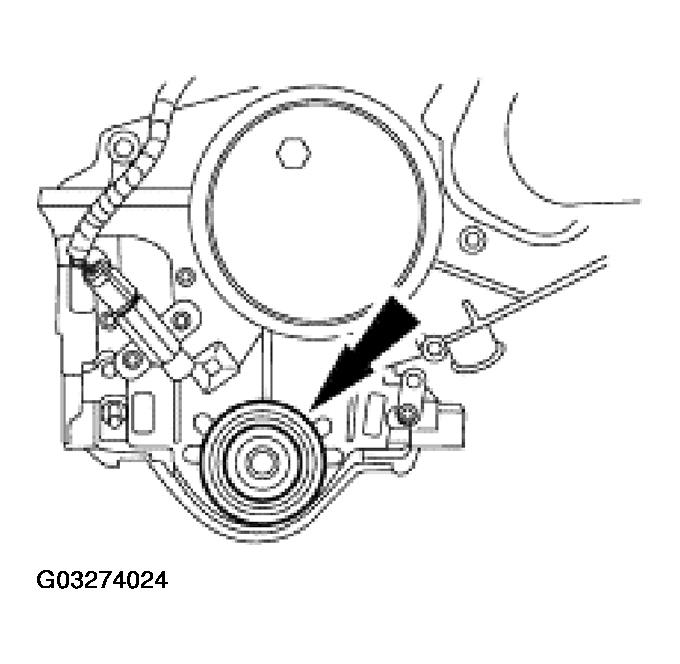

Fig 1: Installing Crankshaft Key

Courtesy of FORD MOTOR CO.

If removed, install the crankshaft key.
Using a Crankshaft Vibration Damper Installer, install the crankshaft damper.
- Coat the sealing surfaces of the crankshaft damper with clean engine oil.
- Coat the crankshaft damper keyway with silicone gasket and sealant.
- Install the crankshaft damper.

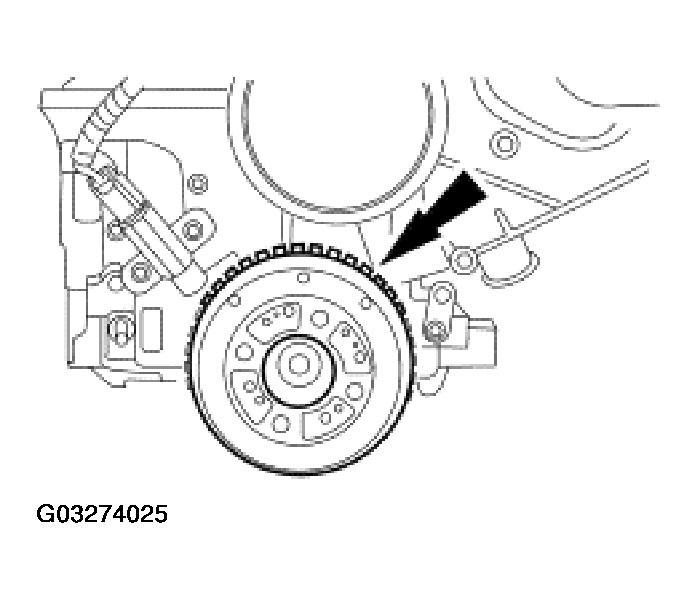

  Fig 2: Installing Crankshaft Damper
  Courtesy of FORD MOTOR CO.
Install the bolt and the washer.

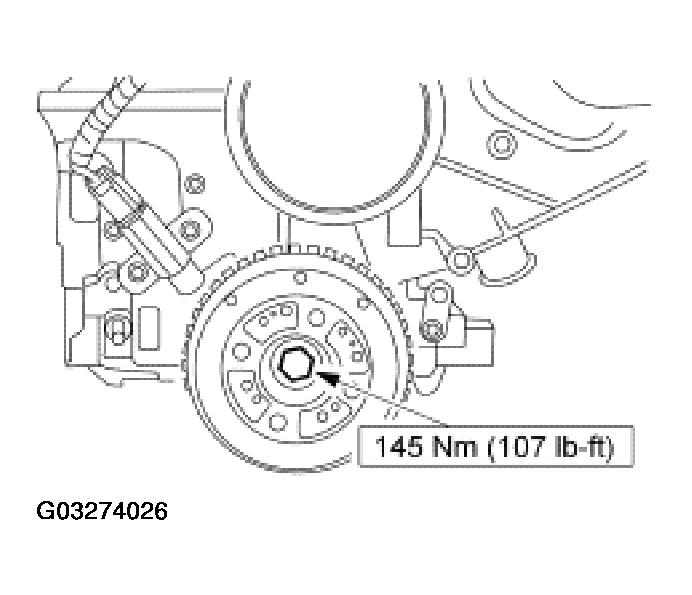

Fig 3: Installing Bolt And Washer
Courtesy of FORD MOTOR CO.
Install the crankshaft pulley.

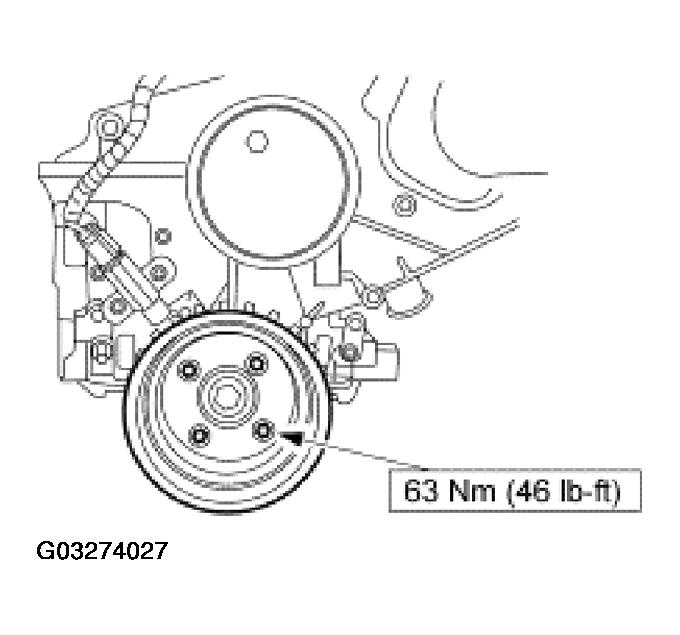

Fig 4: Installing Crankshaft Pulley
Courtesy of FORD MOTOR CO.
Install the drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Install the fan blade and the fan shroud. For additional information, refer to ENGINE COOLING .
Install the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
