Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the crankshaft front seal.
    • Lubricate the seal lip with clean engine oil.
    • Using the Crankshaft Vibration Damper Installer, install the crankshaft front seal.

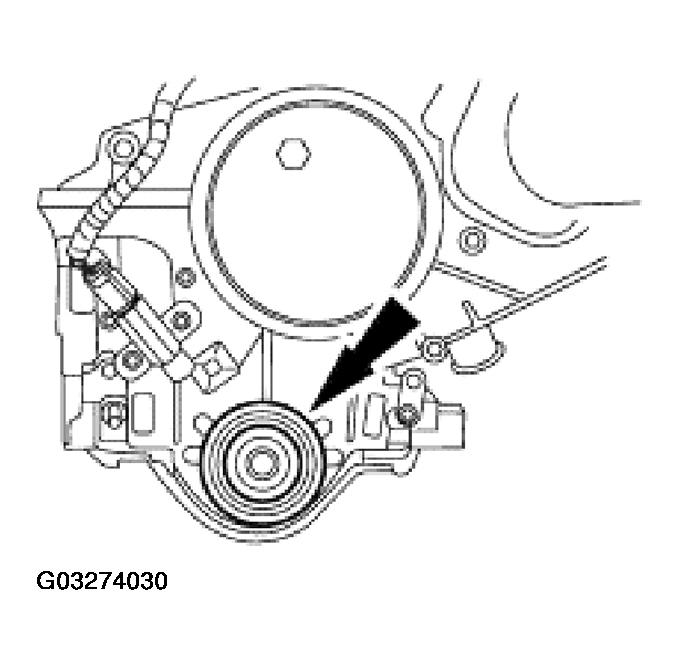

      Fig 1: Installing Crankshaft Front Seal
      G03274030Courtesy of FORD MOTOR CO.
  2. Install the crankshaft damper. For additional information, refer to CRANKSHAFT PULLEY .
