Connecting Rod Bearings: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. The connecting rod bearings are precision fit. Refer to ENGINE SYSTEM-GENERAL INFORMATION for checking clearances or bearing selection.
    2. CAUTION: The connecting rod bearings must be lubricated with clean engine oil prior to installation or damage to the connecting rod bearing may occur.

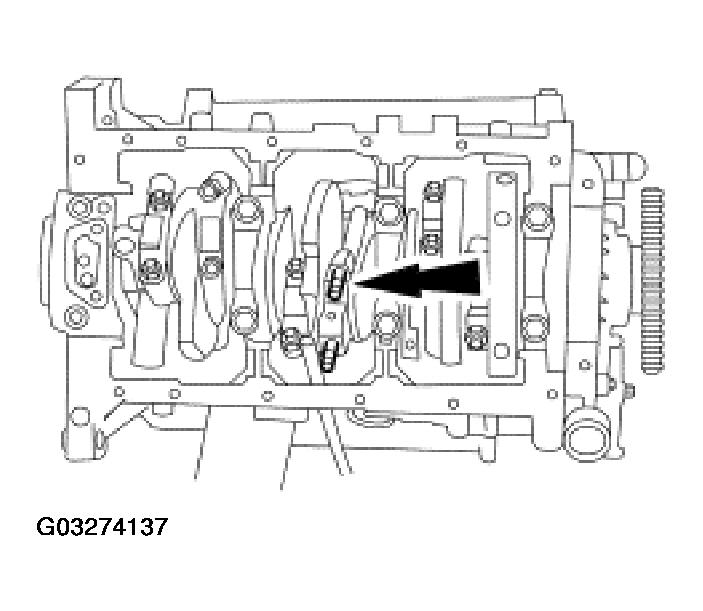

    Fig 1: Installing Connecting Rod Bearings
    G03274137Courtesy of FORD MOTOR CO.
  2. Install the connecting rod bearings.
    3. CAUTION: Bearing caps are directional and must be installed exactly as they were removed.

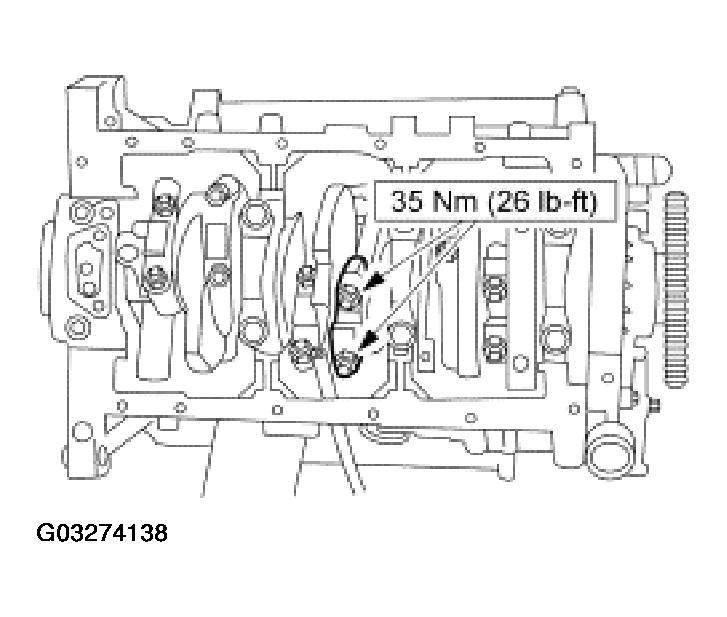

    Fig 2: Installing Connecting Rod Bearing Cap
    G03274138Courtesy of FORD MOTOR CO.
  3. Install the connecting rod bearing cap.
  4. Repeat the procedure until all the connecting rod bearings are installed.
  5. Install the oil pan baffle.

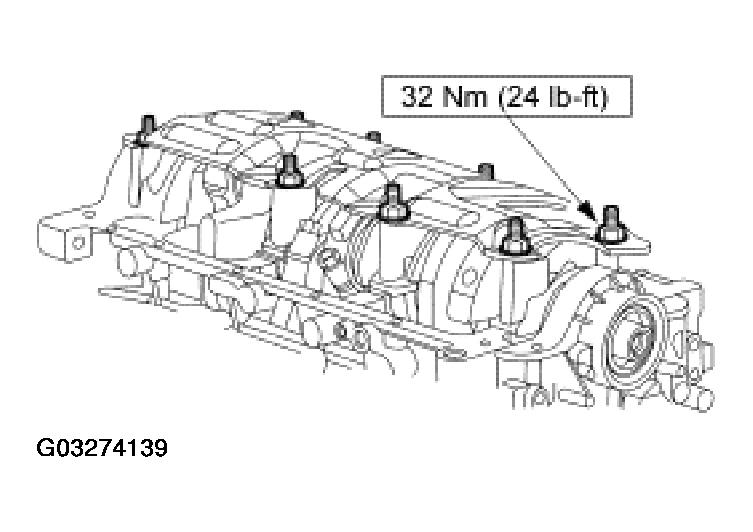

    Fig 3: Installing Oil Pan Baffle
    G03274139Courtesy of FORD MOTOR CO.
  6. Install the oil pan. For additional information, refer to OIL PAN - 4X2  or OIL PAN - 4x4 .
