Piston - Piston Pin Connecting Rod, Press Fit: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Use a suitable ring expander to remove piston rings to prevent damage.

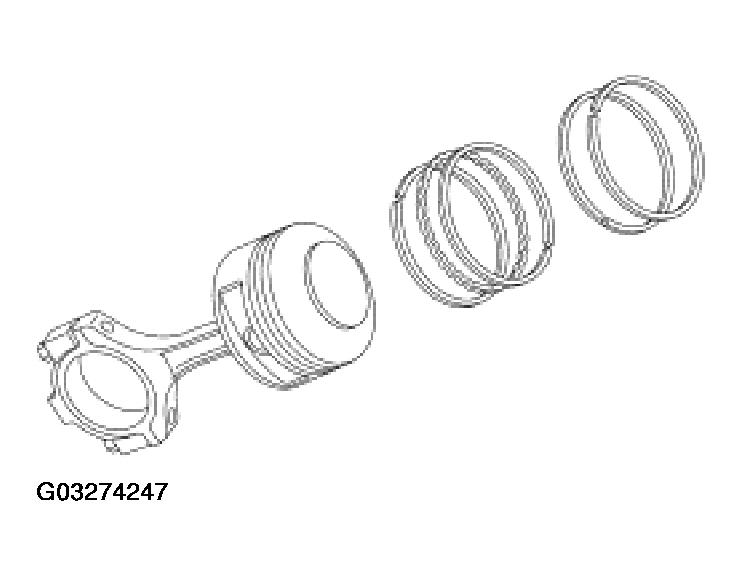

    Fig 1: Removing Piston Rings
    G03274247Courtesy of FORD MOTOR CO.
  1. Remove the piston rings.
    2. NOTE: Take note of piston connecting rod assembly and mark the connecting rod and the piston to make sure of correct orientation during reassembly.

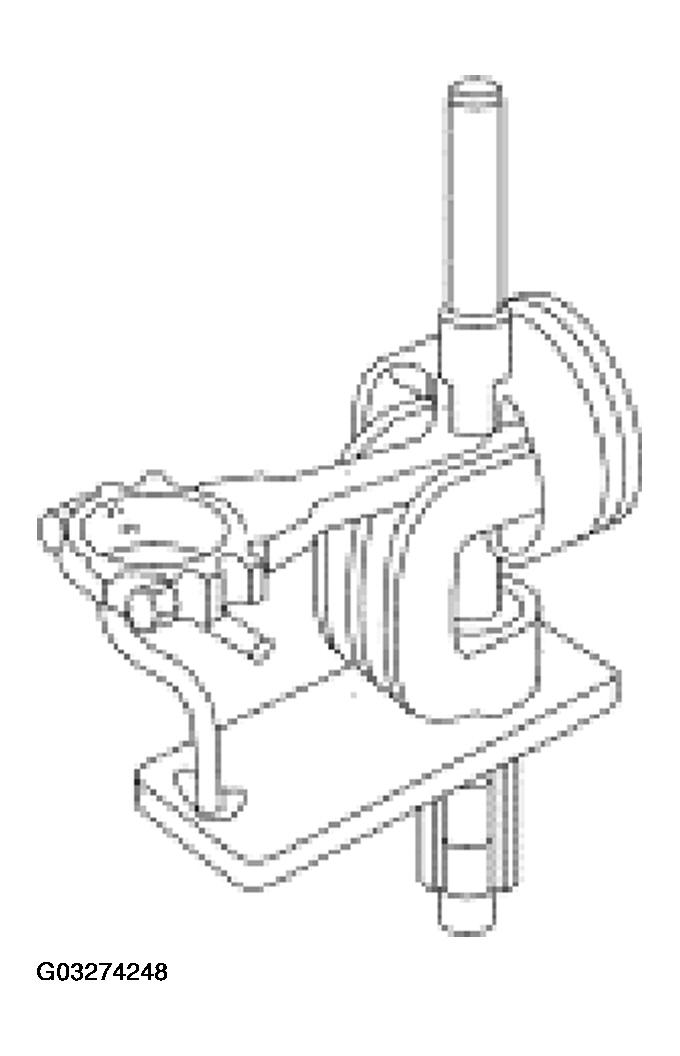

    Fig 2: Pressing Piston Pin Out Of Piston Connecting Rod Assembly
    G03274248Courtesy of FORD MOTOR CO.
  2. Use a suitable piston pin tool to press the piston pin out of the piston connecting rod assembly.
  3. Remove the connecting rod from the piston.

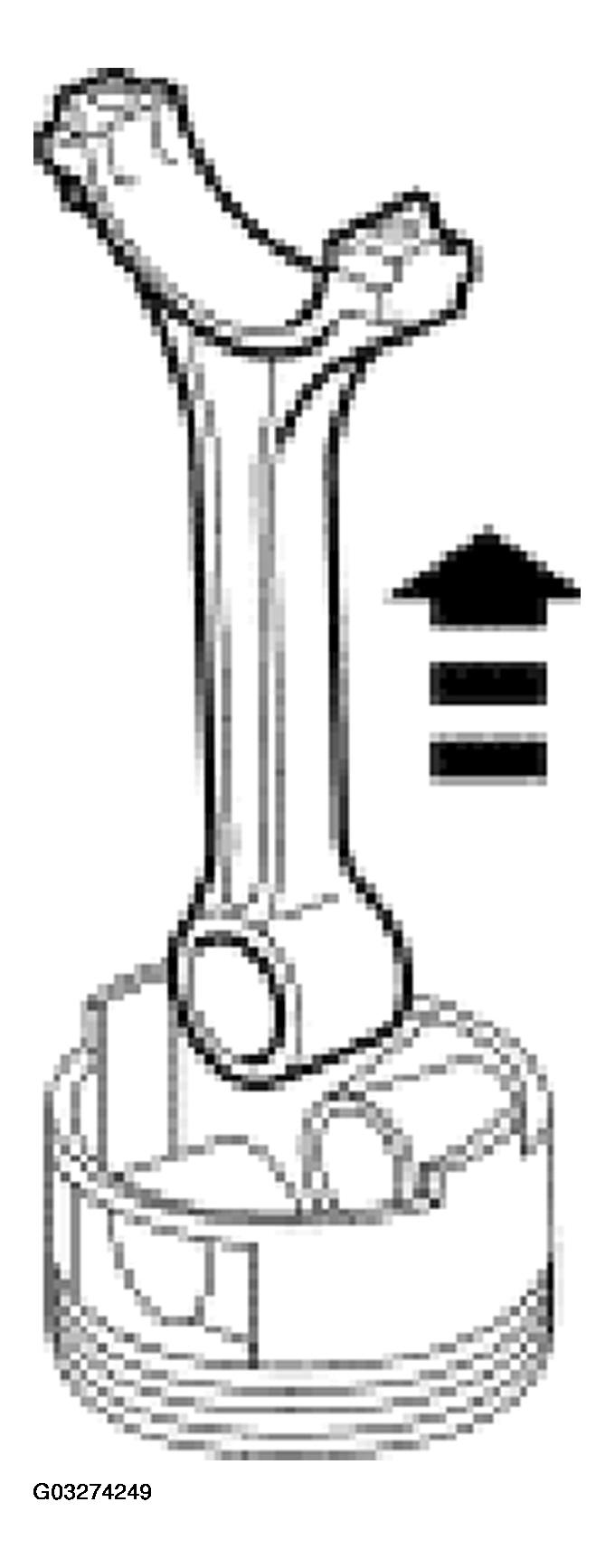

    Fig 3: Removing Connecting Rod From Piston
    G03274249Courtesy of FORD MOTOR CO.
  4. Clean and inspect the connecting rod and the piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
