Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust manifold.
- Remove the bolts.
- Remove the exhaust manifold.

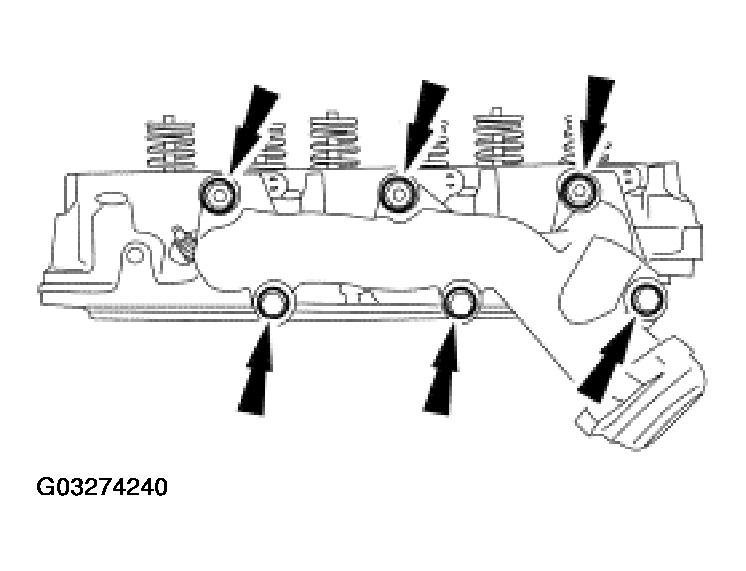

  Fig 1: Removing Exhaust Manifold Bolts
  Courtesy of FORD MOTOR CO.
Remove the exhaust manifold gasket.

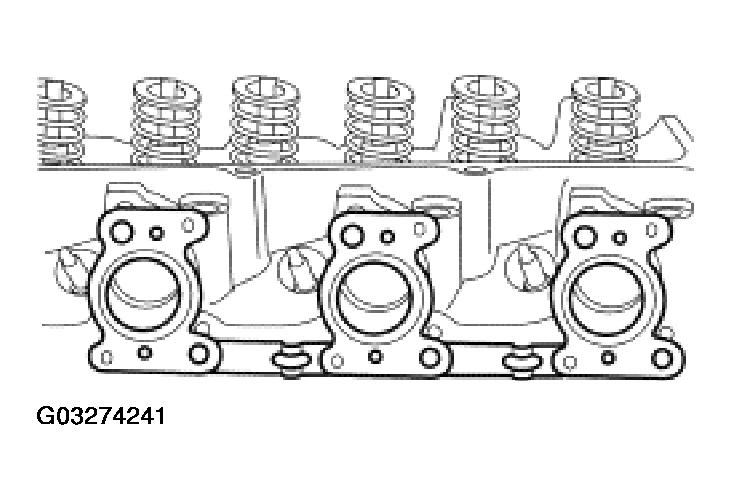

Fig 2: Removing Exhaust Manifold Gasket
Courtesy of FORD MOTOR CO.
Using a valve spring compressor, remove the valve spring retainer key.

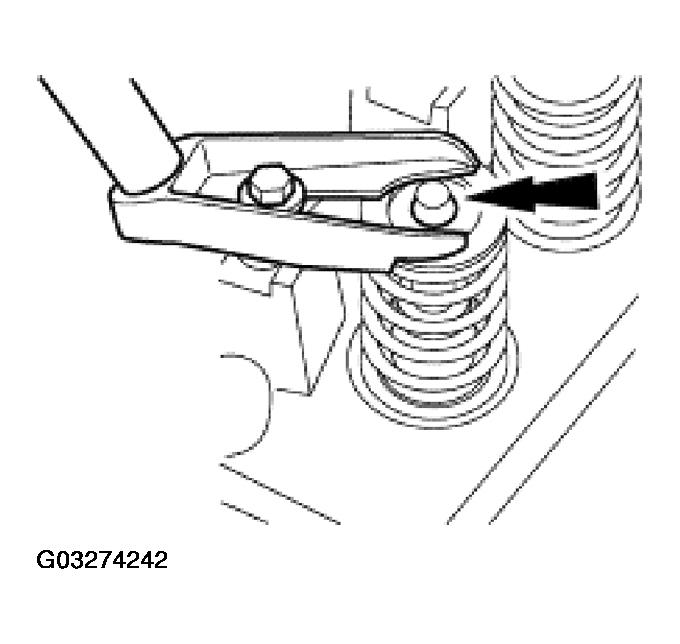

Fig 3: Removing Valve Spring Retainer Key
Courtesy of FORD MOTOR CO.
Remove the valve spring retainer.
- For component tests for the valve spring retainer, refer to ENGINE SYSTEM-GENERAL INFORMATION .

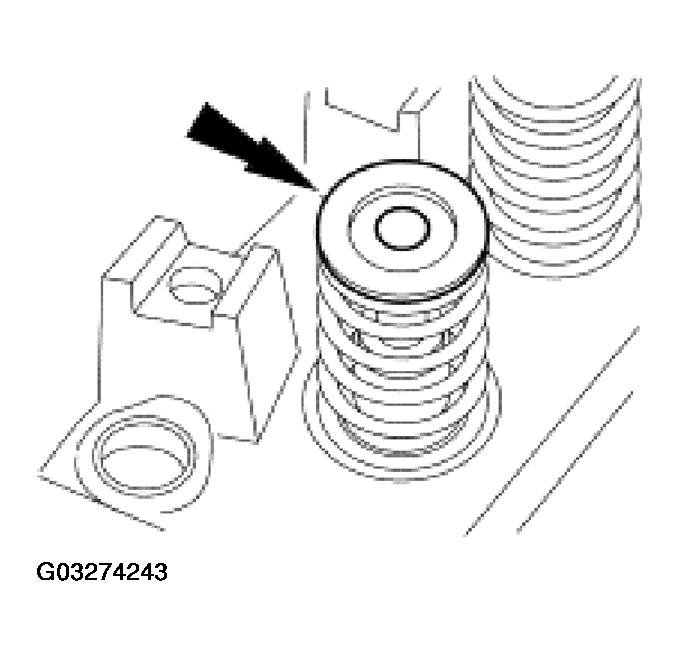

  Fig 4: Removing Valve Spring Retainer
  Courtesy of FORD MOTOR CO.
Remove the valve stem seal.

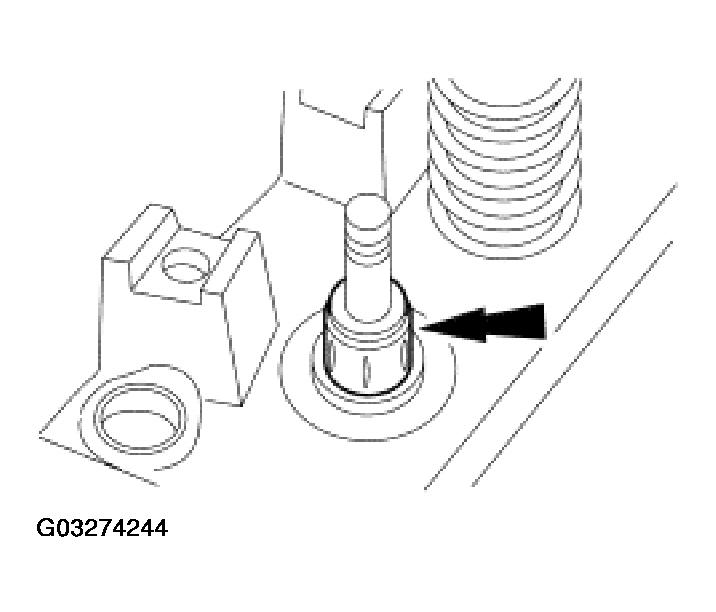

Fig 5: Removing Valve Stem Seal
Courtesy of FORD MOTOR CO.
Remove the valve.
- For component tests for the valve, refer to ENGINE SYSTEM-GENERAL INFORMATION .
- For component tests for the cylinder head, refer to ENGINE SYSTEM-GENERAL INFORMATION .

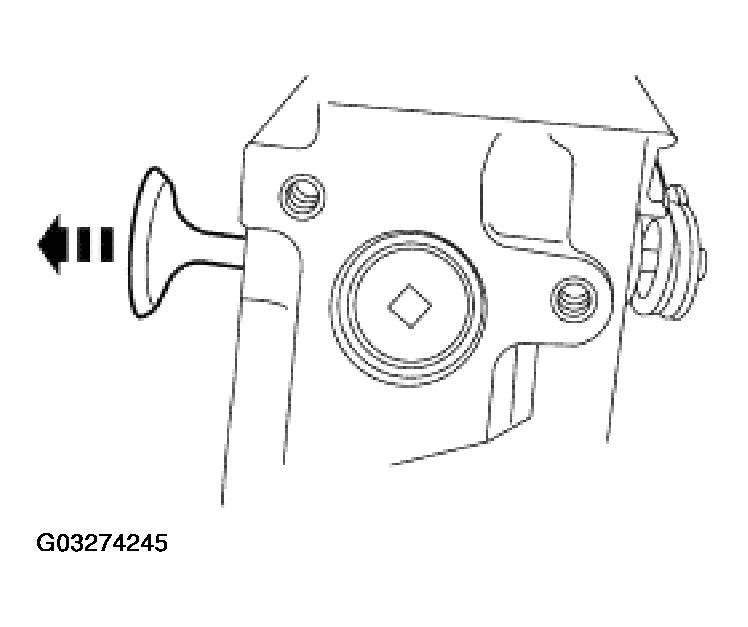

  Fig 6: Removing Valve
  Courtesy of FORD MOTOR CO.
