Cylinder Head: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. To assemble, reverse the disassembly.
    • Lubricate the valve stem and the valve stem seal with clean engine oil.
    • Tighten the exhaust manifold in the sequence shown in two stages.
      • Stage 1: Tighten to 10 N.m (89 lb-in).
      • Stage 2: Tighten to 23 N.m (17 lb-ft).

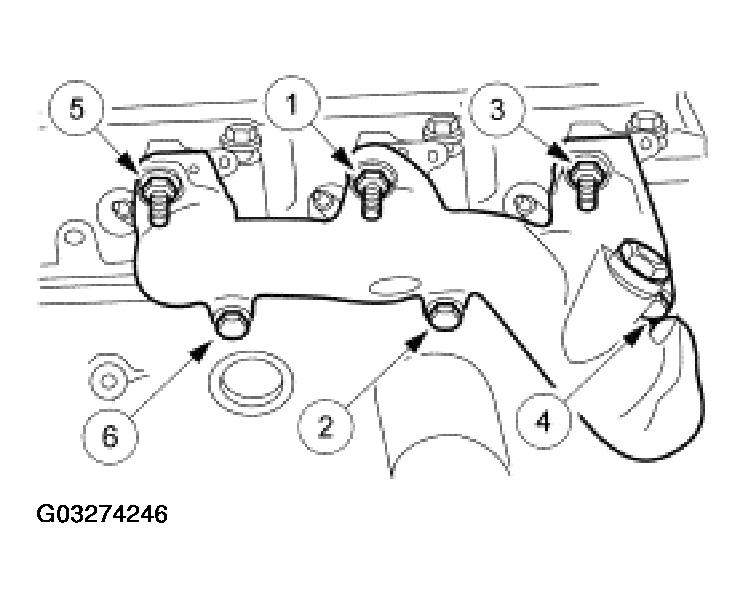

        Fig 1: Identifying Exhaust Manifold Tightening Sequence
        G03274246Courtesy of FORD MOTOR CO.
