Cylinder block - Lower

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

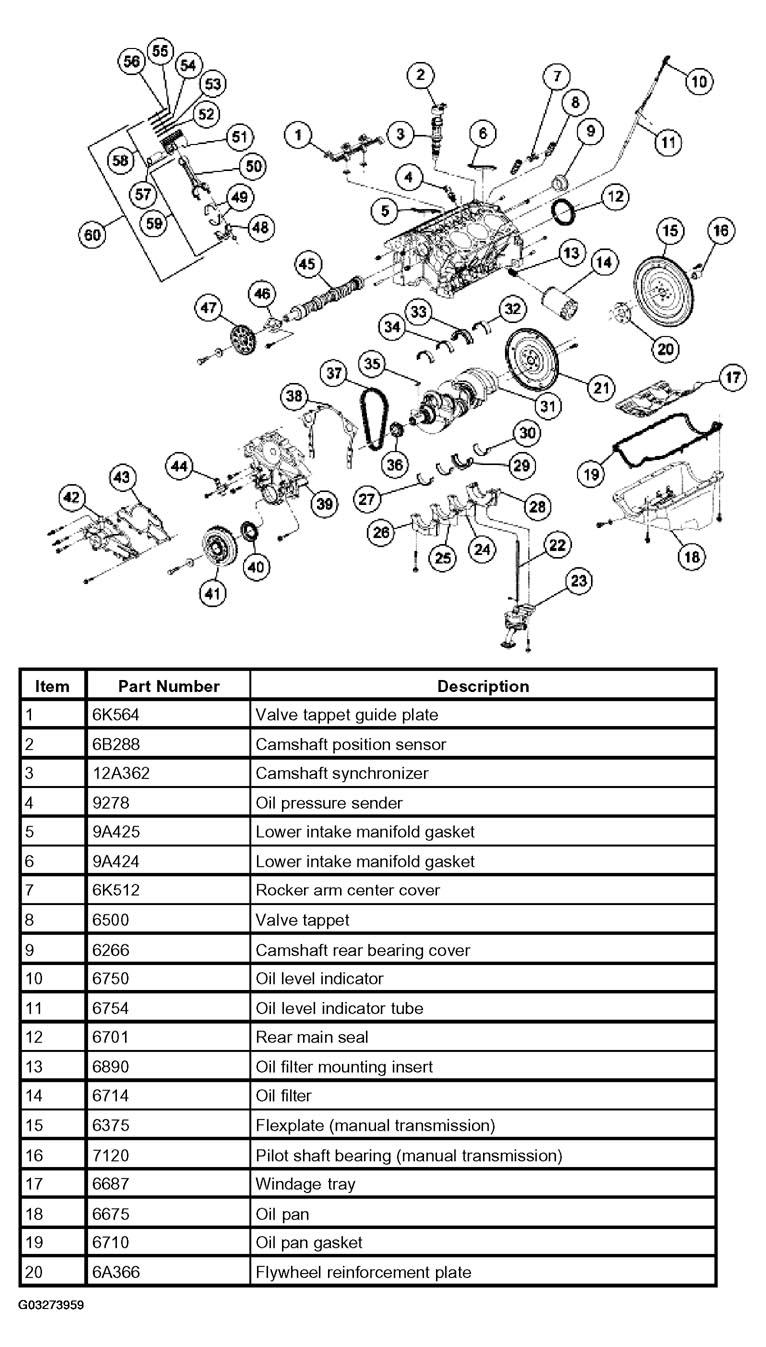

Fig 1: Identifying Cylinder Block - Lower Components (Items 1-20)
G03273959Courtesy of FORD MOTOR CO.

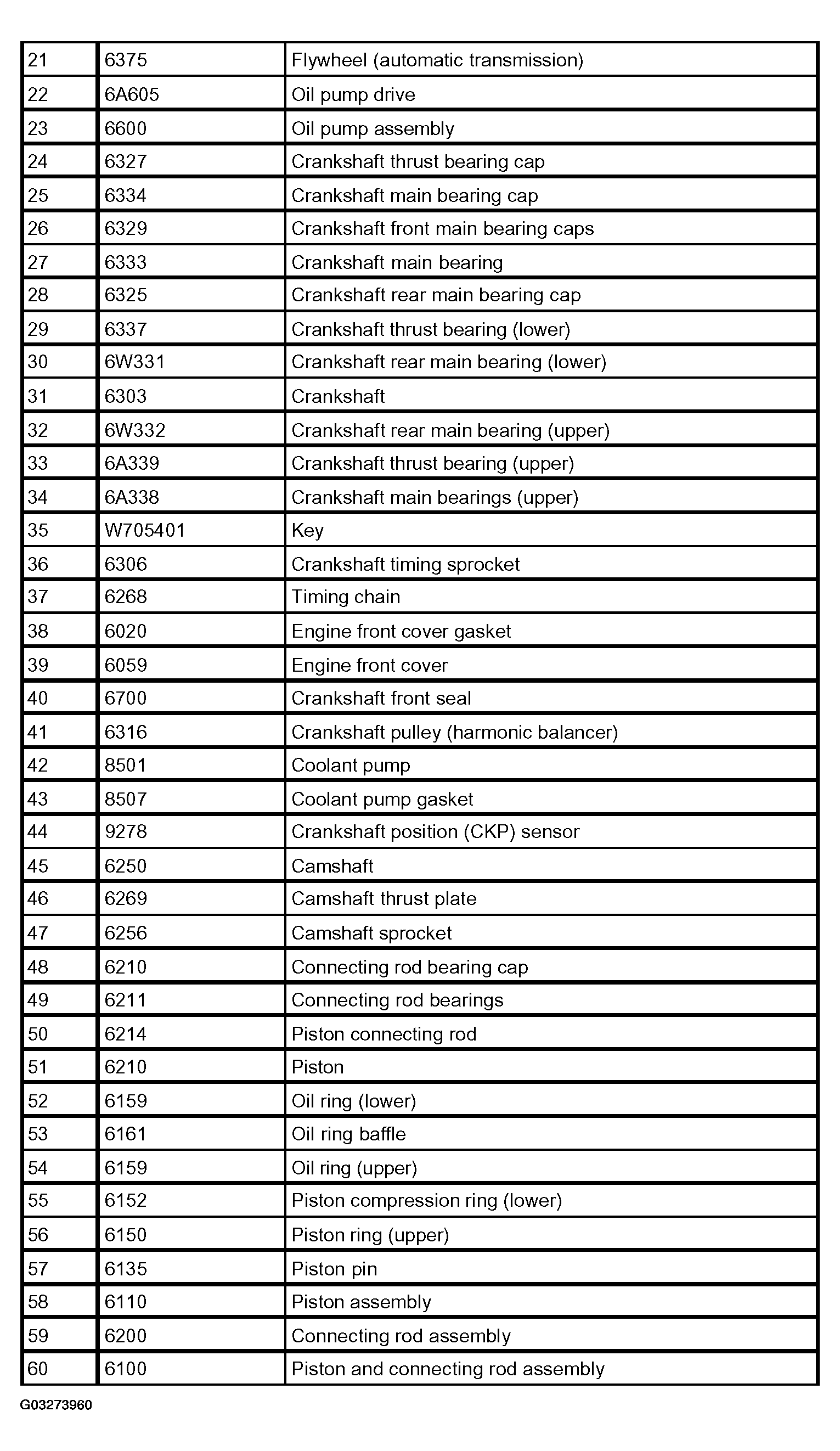

Fig 2: Identifying Cylinder Block - Lower Components (Items 21-60)
G03273960Courtesy of FORD MOTOR CO.
