Oil Pump Screen and Pickup Tube: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. Remove the bolts and the oil pump screen and pickup tube. Remove the oil pump screen and pickup tube mounting gasket.
    • Discard the gasket.

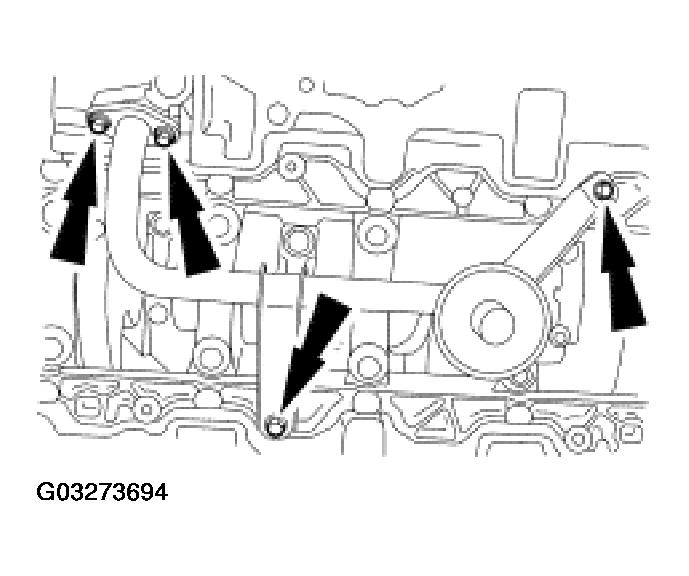

      Fig 1: Removing Oil Pump Screen & Pickup Tube
      G03273694Courtesy of FORD MOTOR CO.
