Oil Pump Screen and Pickup Tube: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Clean and inspect all mating surfaces.
Install the oil pump screen and pickup tube with a new mounting gasket. Tighten the oil pump screen and pickup tube in the sequence shown.

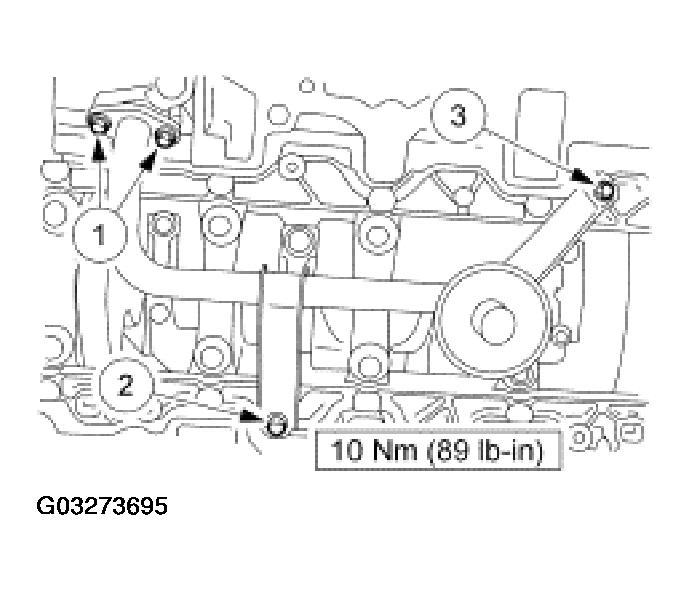

Fig 1: Installing Oil Pump Screen & Pickup Tube
Courtesy of FORD MOTOR CO.

NOTE: The oil pan must be installed and the bolts tightened with four minutes of applying the silicone gasket and sealant.

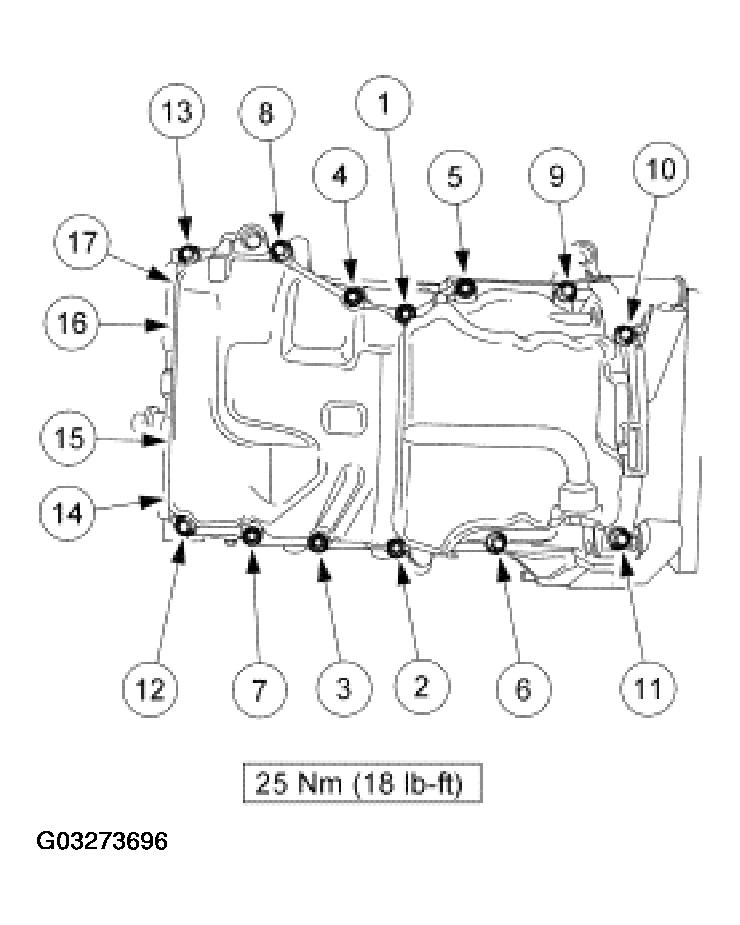

Fig 2: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

Apply a 2.5 -mm (0.1-in) bead of silicone gasket and sealant to the oil pan. Install the oil pan. Tighten the oil pan bolts in the sequence shown.

NOTE: Lubricate the O-ring with clean engine oil.

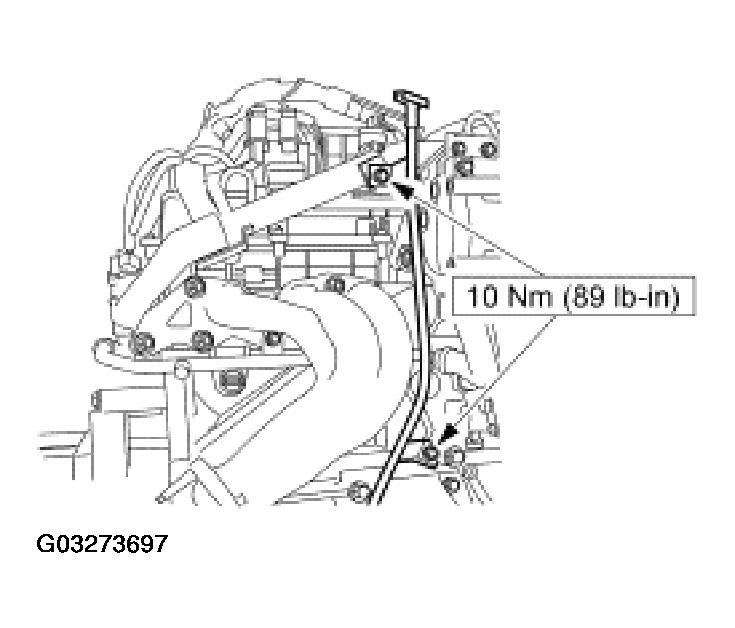

Fig 3: Installing Engine Oil Level Indicator Assembly

Courtesy of FORD MOTOR CO.

Install the engine oil level indicator assembly.
Install the engine into the vehicle. For additional information, refer to ENGINE in the Installation portion of this article.
