Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Raise the vehicle on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the wire connector at the sender.

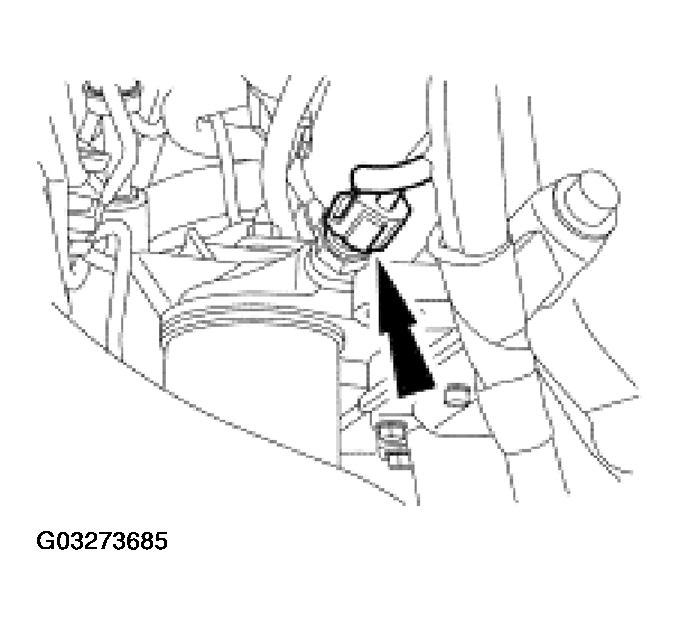

Fig 1: Disconnecting Oil Pressure Sender Wire
Courtesy of FORD MOTOR CO.
Remove the oil pressure sender.

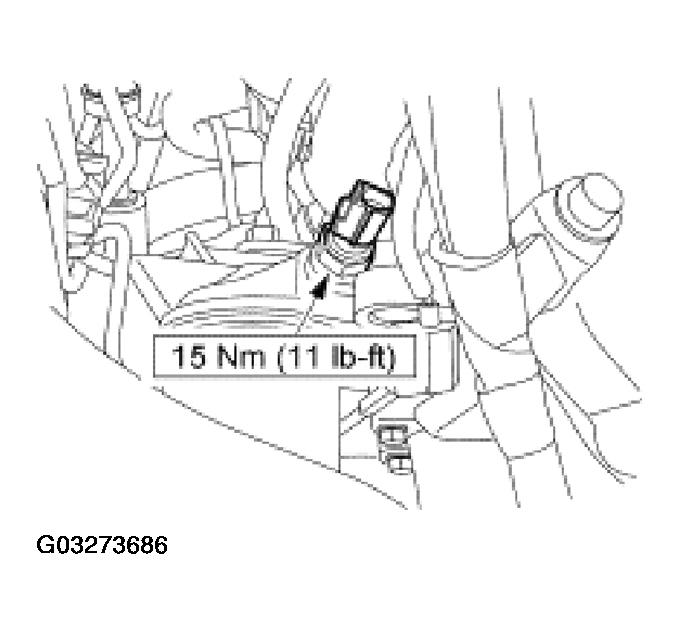

Fig 2: Removing Oil Pressure Sender
Courtesy of FORD MOTOR CO.

NOTE: Apply pipe sealant with Teflon® to sender threads.

To install, reverse the removal procedure.
