Oil Pan: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine from the vehicle. For additional information, refer to ENGINE  in the Removal portion of this article.
  2. Remove the engine oil level indicator assembly.
    1. Remove the engine oil level indicator.
    2. Remove the bolts.
    3. Remove the engine oil level indicator tube.

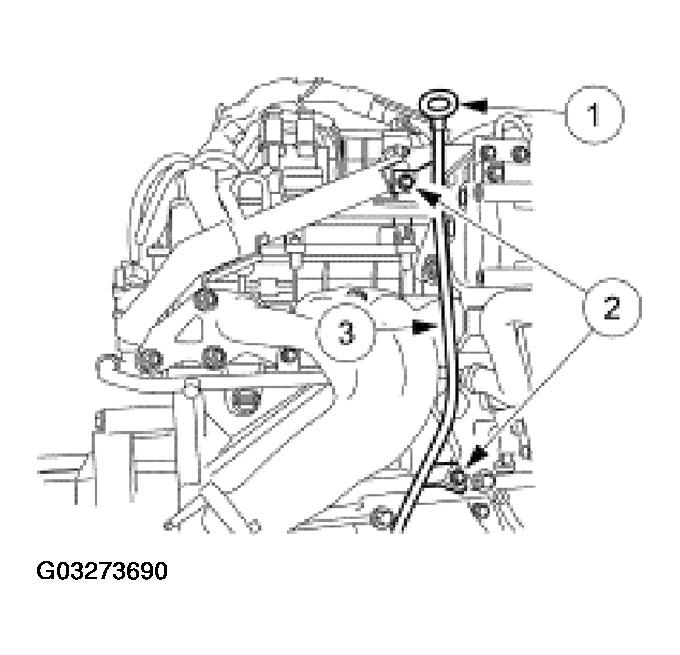

      Fig 1: Removing Engine Oil Level Indicator Tube
      G03273690Courtesy of FORD MOTOR CO.
  3. Remove the bolts and oil pan.

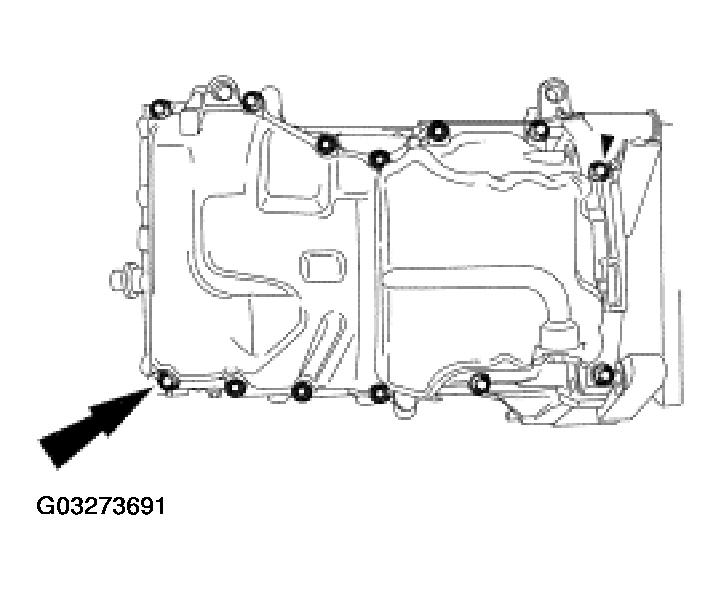

    Fig 2: Removing Bolts Of Oil Pan
    G03273691Courtesy of FORD MOTOR CO.
