Oil Pan: Installation
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and inspect all mating surfaces.

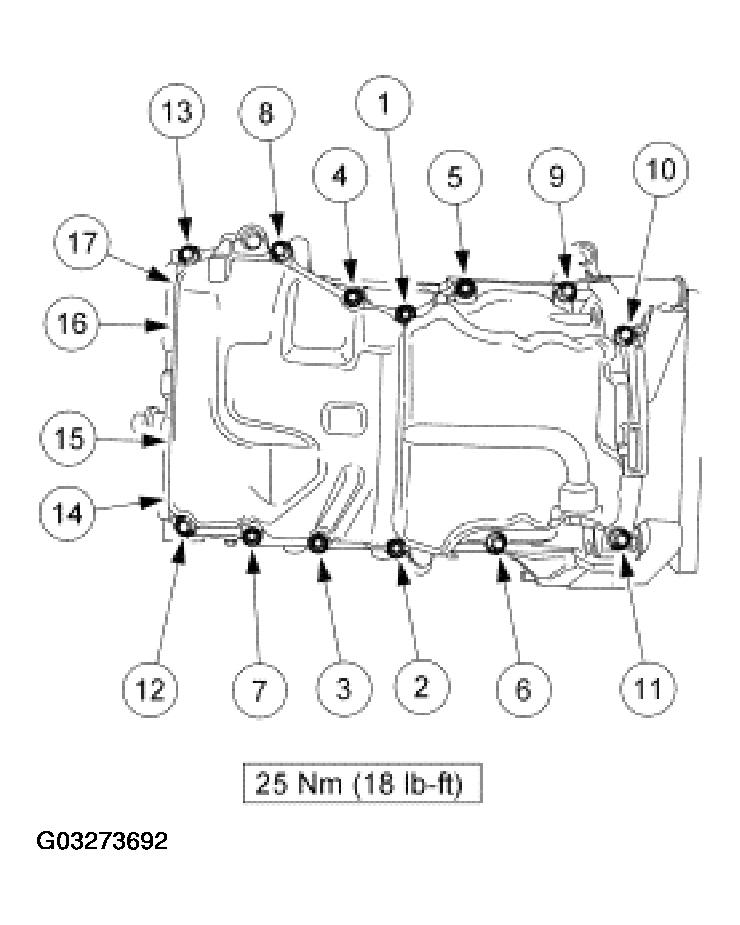

- Apply a 2.5-mm (0.1-in) bead of silicone gasket and sealant to the oil pan. Install the oil pan. Tighten the oil pan in the sequence shown.

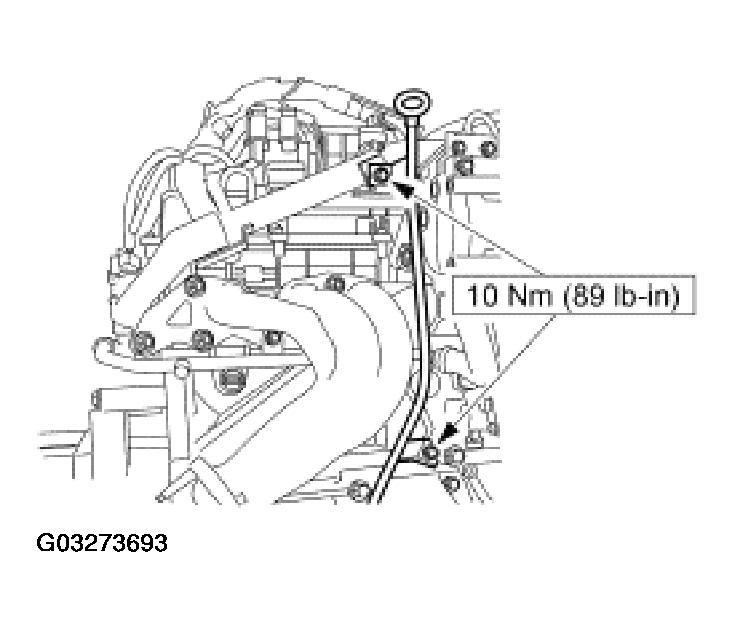

- Install the engine oil level indicator tube and the bolt.
- Install the engine oil level indicator.
- Install the engine into the vehicle. For additional information, refer to ENGINE in the Installation portion of this article.
CAUTION:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
NOTE:
If the oil pan is not secured within four minutes of sealant application the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
NOTE:
The oil pan must be installed and the bolts tightened with four minutes of applying the silicone gasket and sealant.
NOTE:
Lubricate the O-ring with clean engine oil.
