Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the oil level indicator (6750) and the upper retaining bolt.

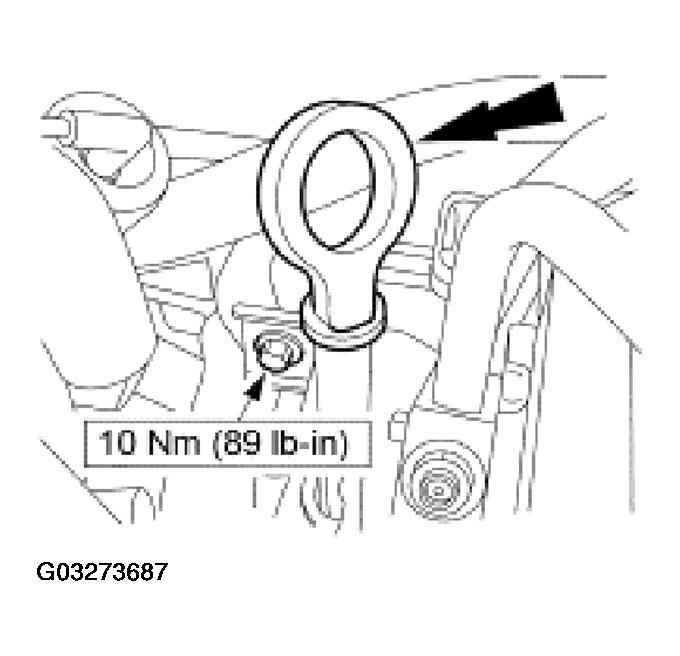

Fig 1: Removing Oil Level Indicator & Upper Retaining Bolt
Courtesy of FORD MOTOR CO.
Raise the vehicle on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the oil level indicator tube (6754).
- Remove the bolt.
- Remove the oil level indicator tube.

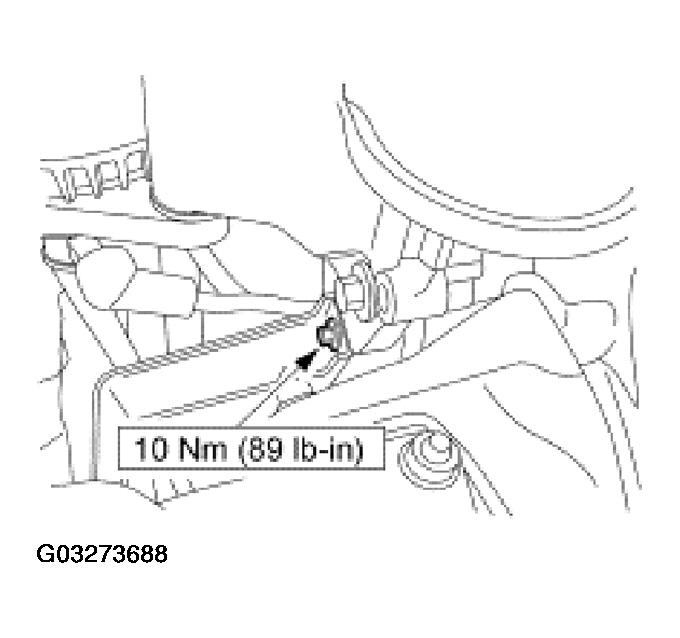

  Fig 2: Removing Oil Level Indicator Tube
  Courtesy of FORD MOTOR CO.
Remove the O-ring from the indicator ring.

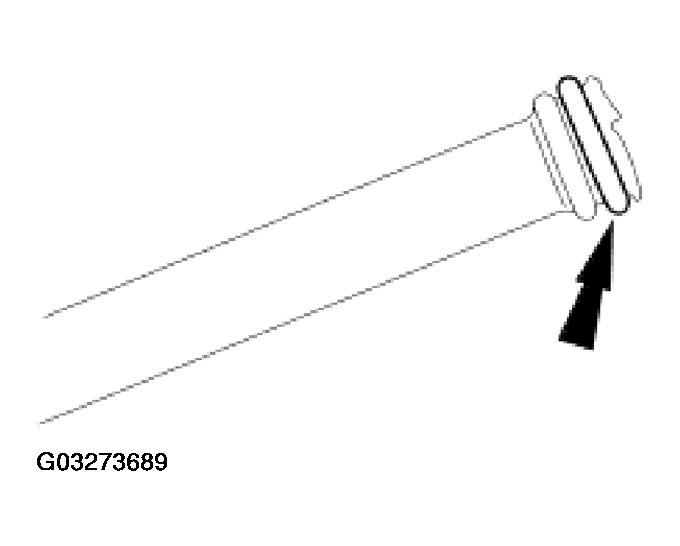

Fig 3: Removing O-Ring From Indicator Ring
Courtesy of FORD MOTOR CO.

NOTE: Apply clean engine oil to the O-ring before installation of the indicator tube.

To install, reverse the removal procedure.
