In-Vehicle Repair: Flywheel: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION .
  2. Remove the clutch. For additional information, refer to CLUTCH .
  3. Install the special tool and remove the bolts and the flywheel.

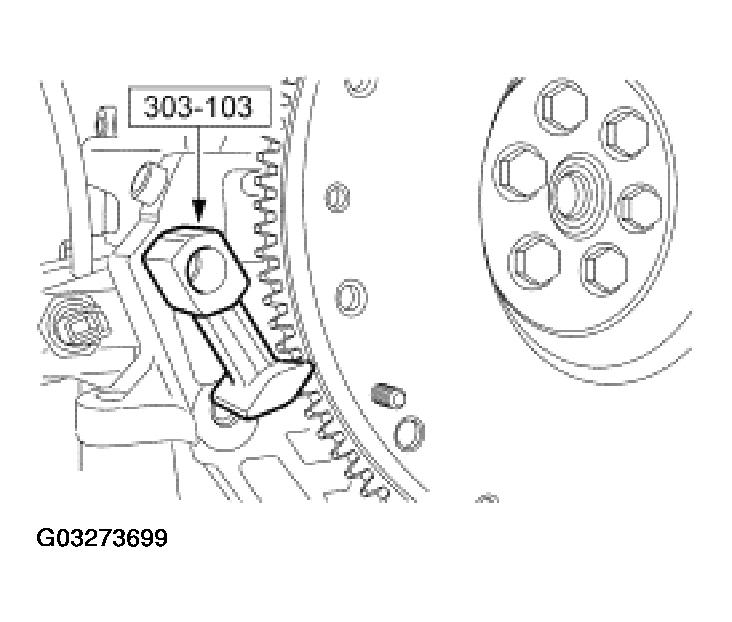

    Fig 1: Installing Special Tool & Removing Flywheel Bolts
    G03273699Courtesy of FORD MOTOR CO.
