Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel (6375) or flexplate. For additional information, refer to FLYWHEEL  or FLEXPLATE .
  2. Remove the oil pan. For additional information, refer to OIL PAN .
  3. Remove the bolts and the crankshaft rear oil seal.

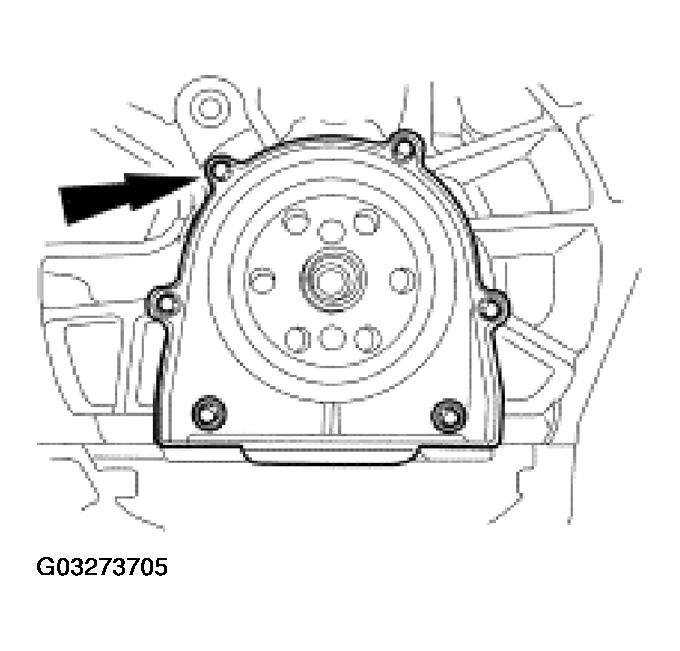

    Fig 1: Removing Crankshaft Rear Oil Seal Bolts
    G03273705Courtesy of FORD MOTOR CO.
